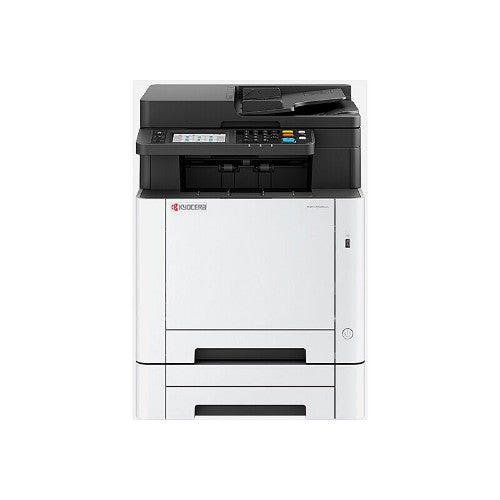

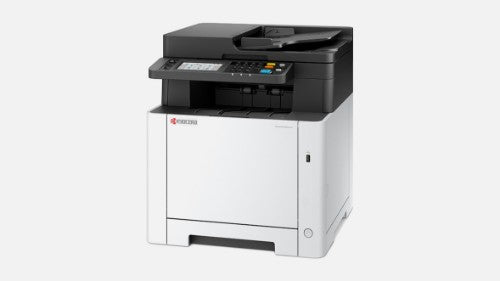

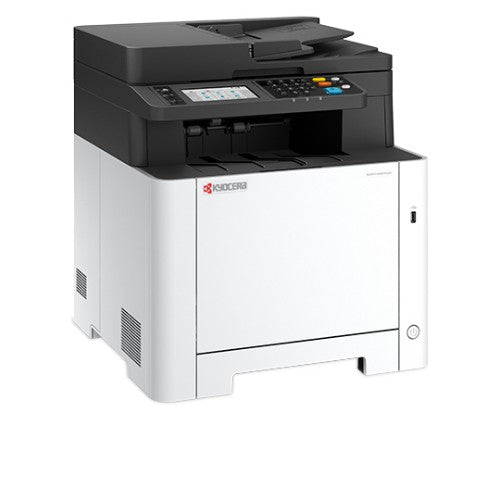

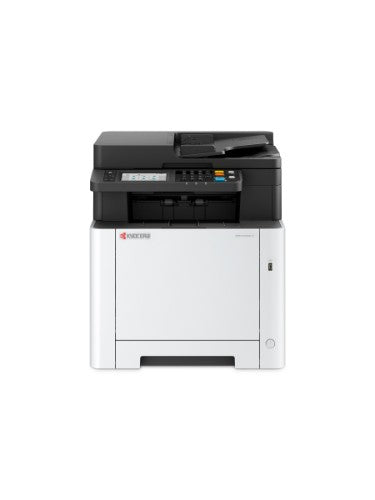

KYOCERA ECOSYS MA2600cwfx Laser A4 1200 x 1200 DPI 26 ppm Wi-Fi

Colour multifunctional for A4 format, Up to 26 pages A4 per minute in colour and b/w, Approx. 29 seconds or less, 550 sheets, ARM Cortex-A53 single core 1.0GHz

Key Features

• Enterprise level information security to protect against threats
• Exceptional low operating cost thanks to Long life parts and high capacity toner
• Integration of personal cloud storage services
• Print speed up to 26 ppm b&w and 26 ppm colour
• Optional additional paper feeder for a total of 550 sheets
• Built in wireless network

Description

The ECOSYS MA2600cwfx is a compact and reliable 4-in-1 colour multifunctional for professional use. Engineered to offer maximum productivity to small and medium workgroups.

Specifications

Features
Product colour	Black, White
Print technology	Laser
Printing	Colour printing
Copying	Colour copying
Scanning	Colour scanning
Faxing	Mono faxing
Economical printing	Yes
Duplex printing mode	Auto

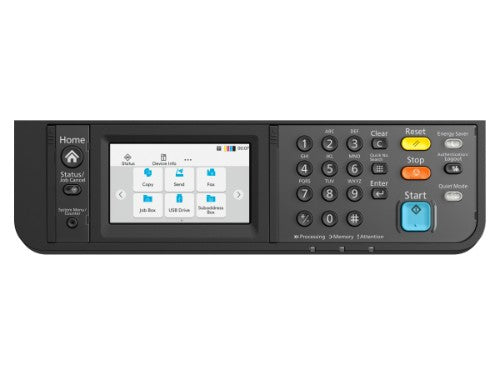

Control type	Buttons, Touch
Market positioning	Home & office
Duplex scanning mode	Auto
Duplex copying mode	Auto
Duplex printing	Yes
Duplex scanning	Yes
Duplex copying	Yes
Duplex faxing	Yes
Maximum duty cycle	65000 pages per month
Duplex functions	Copy, Print, Scan
Number of print cartridges	4
Recommended duty cycle	900 - 1500 pages per month
Printing colours	Black, Cyan, Magenta, Yellow
Country of origin	Vietnam
Replacement cartridges	TK-5450K Zwart (4.100 afdrukken) ISO/IEC 19752 TK-5450Y Geel (3.200 afdrukken) ISO/IEC 19752 TK-5450M Magenta (3.200 afdrukken) ISO/IEC 19752 TK-5450C Cyaan (3.200 afdrukken) ISO/IEC 19752
Page description languages	PCL 5c, PCL 6, PCL XL
Performance
Print technology	Laser
Printing	Colour printing
Copying	Colour copying
Scanning	Colour scanning
Faxing	Mono faxing
Maximum duty cycle	65000 pages per month
Product colour	Black, White
Duplex functions	Copy, Print, Scan
Number of print cartridges	4
Recommended duty cycle	900 - 1500 pages per month
Printing colours	Black, Cyan, Magenta, Yellow
Economical printing	Yes
Duplex printing mode	Auto
Replacement cartridges	TK-5450K Zwart (4.100 afdrukken) ISO/IEC 19752 TK-5450Y Geel (3.200 afdrukken) ISO/IEC 19752 TK-5450M Magenta (3.200 afdrukken) ISO/IEC 19752 TK-5450C Cyaan (3.200 afdrukken) ISO/IEC 19752
Market positioning	Home & office
Internal memory	1024 MB
Card reader integrated	Yes
Maximum internal memory	1024 MB
Compatible memory cards	SD, SDHC
Processor family	ARM Cortex
Processor frequency	1000 MHz
Processor model	A53
Built-in processor	Yes
Sound pressure level (printing)	49 dB
Sound pressure level (copying)	49 dB
Sound pressure level (standby)	30 dB
Sound pressure level (quiet mode)	44 dB
Introduction year	2025
Input capacity
Maximum input capacity	550 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	50 sheets
Output capacity
Maximum output capacity	150 sheets

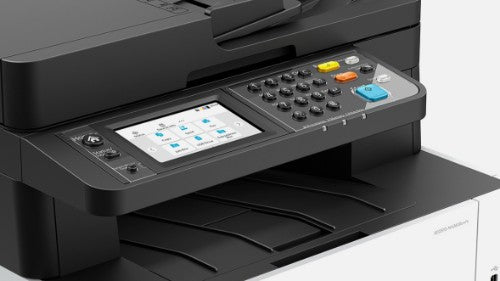

Display
Colour display	Yes
Display diagonal	10.9 cm (4.3")
Display	TFT
Built-in display	Yes
Printing
N-up printing	2, 4, 6, 8, 9, 16, 25
Print technology	Laser
Watermark printing	Yes
Poster printing function	Yes
N-in-1 print function	Yes
Cover page printing function	Yes
Booklet printing function	Yes
Printing	Colour printing
Print speed (black, normal quality, A4/US Letter)	26 ppm
Maximum resolution	1200 x 1200 DPI
Print speed (colour, normal quality, A4/US Letter)	26 ppm
Secure printing	Yes
Print speed (black, draft quality, A4/US Letter)	26 ppm
Economical printing	Yes
DVD/CD printing	No
Duplex printing mode	Auto
Duplex print speed (colour, normal quality, A4/US Letter)	13 ppm
Duplex print speed (black, normal quality, A4/US Letter)	13 ppm
Borderless printing	No
Time to first page (colour, normal)	10.5 s
Time to first page (black, normal)	9.5 s
Warm-up time	29 s
Print resolution colour	1200 x 1200 DPI
Print resolution black	1200 x 1200 DPI
Duplex printing	Yes
Copying
N-in-1 copy function	Yes
ID-card copy function	Yes
Edge erase function	Yes
Copy programming function	Yes
Background adjustment function	Yes
Auto fit function	Yes
Copying	Colour copying
Maximum copy resolution	600 x 600 DPI
Copy speed (black, normal quality, A4)	26 cpm
Copy speed (colour, normal quality, A4)	26 cpm
Time to first copy (colour, normal)	10 s
Time to first copy (black, normal)	8 s
PC free copying	Yes
N-in-1 copy function (N=)	2, 4
Maximum number of copies	999 copies
Copier resize	25 - 400%
Duplex copying mode	Auto
Duplex copying	Yes
Maximum copy size	A4
Scanning
Scanning	Colour scanning
Optical scanning resolution (black)	600 x 600 ppi
Optical scanning resolution (colour)	600 x 600 ppi
Optical scanning resolution	600 x 600 DPI
Scanner type	Flatbed & ADF scanner
Scan to	E-mail, FTP, Network folder, SMB, TWAIN, USB
Scan speed (colour)	22 ppm
Scan speed (black)	27 ppm
Duplex scan speed (colour)	44 ppm
Duplex scan speed (black)	54 ppm
Image formats supported	JPEG, MMR, TIFF
Document formats supported	PDF, XPS
Scan technology	CIS/CCD
Scan drivers	TWAIN, WIA
Duplex scanning mode	Auto
Duplex scanning	Yes
Fax
Fax resolution (black)	400 x 400 DPI
Faxing	Mono faxing
Fax transmission speed	2 sec/page
Modem speed	33.6 Kbit/s
Fax memory	256 pages
Speed dialling	Yes
Fax forwarding	Yes
Fax delayed sending	Yes
Auto-redialing	Yes
Duplex faxing	Yes
Storage
Internal memory	1024 MB
Card reader integrated	Yes
Maximum internal memory	1024 MB
Compatible memory cards	SD, SDHC
Processor
Processor family	ARM Cortex
Processor frequency	1000 MHz
Built-in processor	Yes
Input & output capacity
Total number of input trays	2
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Maximum output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	50 sheets
Paper tray 1 input capacity	250 sheets
Multi-Purpose tray	Yes
Auto document feeder (ADF)	Yes
Maximum number of input trays	3
Paper handling
Maximum ISO A-series paper size	A4
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Borderless printing media sizes	Legal, Letter
Maximum print size	216 x 356 mm
Multi-Purpose Tray media weight	60 - 220 g/m²
Custom media width	70 - 216 mm
Custom media length	148 - 356 mm
Paper tray media types	Envelopes, Plain paper, Pre-printed, Recycled paper, Semi-glossy paper, Thicker paper, Thin paper, Transparencies
Paper tray media weight	60 - 163 g/m²
Ports & interfaces
USB port	Yes
Direct printing	Yes
Bluetooth	No
Network
Bluetooth	No
Near Field Communication (NFC)	No
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Security algorithms	HTTPS, IPSec, SNMPv3, TLS
Mobile printing technologies	Apple AirPrint, Chromebook Native Print, Kyocera Mobile Print, Mopria Print Service
Cabling technology	10/100/1000Base-T(X)
Technical details
Sustainability certificates	Blue Angel, EPEAT
Warranty period	2 year(s)
Design
Colour display	Yes
Product colour	Black, White
Display diagonal	10.9 cm (4.3")
Display	TFT
Country of origin	Vietnam
Control type	Buttons, Touch
Built-in display	Yes
Market positioning	Home & office
Power
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
Power consumption (sleep)	0.4 W
Power consumption (standby)	41 W
Energy Star Typical Electricity Consumption (TEC)	0.27 kWh/week
Power consumption (printing)	375 W
Power consumption (copying)	375 W
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Software
Windows operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Sustainability
Sustainability certificates	Blue Angel, EPEAT
Other features
Cabling technology	10/100/1000Base-T(X)
Borderless printing	No
Speed dialling	Yes
Country of origin	Vietnam
Energy Star Typical Electricity Consumption (TEC)	0.27 kWh/week
Cartridge(s) included	Yes
Power consumption (printing)	375 W
Power consumption (copying)	375 W
Control type	Buttons, Touch
Duplex printing	Yes
Warranty period	2 year(s)
Weight & dimensions
Width	416 mm
Depth	410 mm
Height	457 mm
Weight	26 kg
Package width	596 mm
Package depth	571 mm
Package height	599 mm
Package weight	33 kg
Packaging data
Included cartridge capacity (black)	1500 pages
Included cartridge capacity (CMY)	1500 pages
Imaging unit included	Yes
Package width	596 mm
Package depth	571 mm
Package height	599 mm
Package weight	33 kg
Cartridge(s) included	Yes
Cables included	AC
Packaging content
Included cartridge capacity (black)	1500 pages
Included cartridge capacity (CMY)	1500 pages
Imaging unit included	Yes
Cartridge(s) included	Yes
Cables included	AC
User guide	Yes
