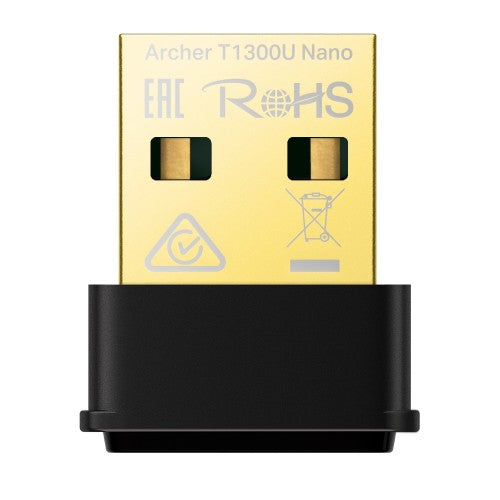

TP-Link Archer T1300U Nano WLAN 867 Mbit/s

IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz, USB 2.0

Key Features

• Ultimate Wi-Fi Speed – Up to 1300 Mbps speeds with 400 Mbps on 2.4GHz and 867 Mbps on 5GHz, upgrades your devices to higher AC Wi-Fi speeds.
• Dual Band Connection – 2.4 GHz and 5 GHz band for flexible connectivity, enables your devices to work with the latest dual-band Wi-Fi router for faster speed and extended range.
• MU-MIMO Technology – Delivers highly efficient wireless connection
• Nano Design – Small, unobtrusive design allows you to plug it in and forget it is even there
• System Compatibility – Supports Windows 11/10/8.1/8/7, Mac OS 10.15 and earlier

Description

Tiny in Size,
Mightly in Performance
AC1300 Nano Wireless MU-MIMO USB Adapter

Immersive Experience with Dual Band Connection
Receive Wi-Fi signals on two separate bands for all your online needs. High-speed dual band Wi-Fi up to 1300 Mbps means Archer T1300U Nano is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.

Boosted Throughput with MU-MIMO
Archer T1300U Nano that supports MU-MIMO technology boosts the throughput and efficiency of the entire network when works with MU-MIMO routers, which provide multiple data streams simultaneously.

Advanced Security with WPA3
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

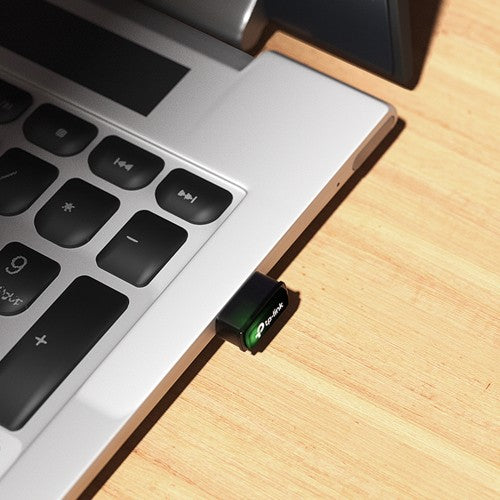

Miniature Design Brings Infinite Convenience
Archer T1300U Nano is designed to be as convenient as possible. With its miniature size and sleek design, you can connect the nano adapter to any USB port and leave it there, whether you are traveling or at home.

Specifications

Ports & interfaces
Internal	No
USB version	2.0
Connectivity technology	Wired
Host interface	USB
Interface	WLAN
Bandwidth
Maximum data transfer rate	867 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
WLAN data transfer rates supported	400,867 Mbit/s
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Maximum data transfer rate	867 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
WLAN data transfer rates supported	400,867 Mbit/s
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA3, WPA3-SAE
Design
Internal	No
Product colour	Black, Gold
Plug and Play	Yes
LED indicators	Status
Component for	Laptop
Antenna design	Internal
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	19.9 mm
Depth	15.7 mm
Height	7.39 mm
Packaging content
Quick installation guide	Yes
Resource CD	Yes
Performance
Plug and Play	Yes
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA3, WPA3-SAE
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Packaging data
Quick installation guide	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
