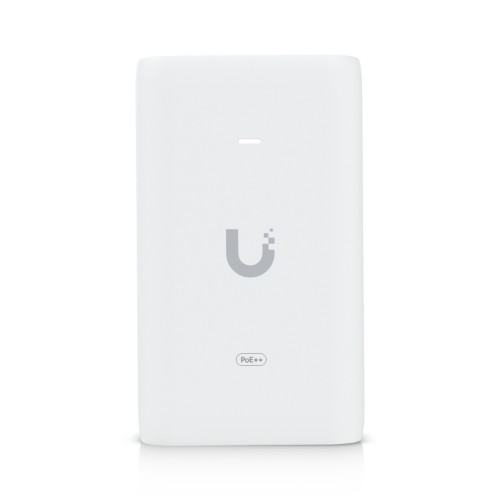

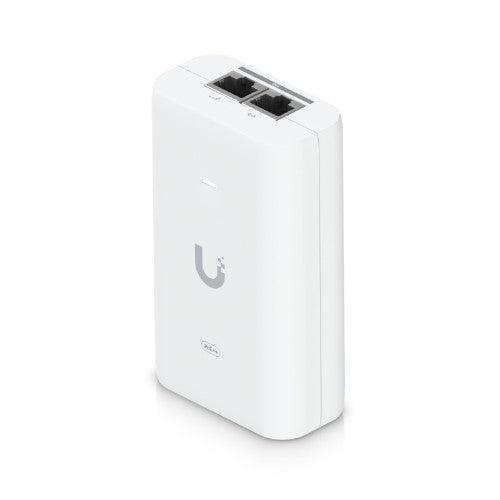

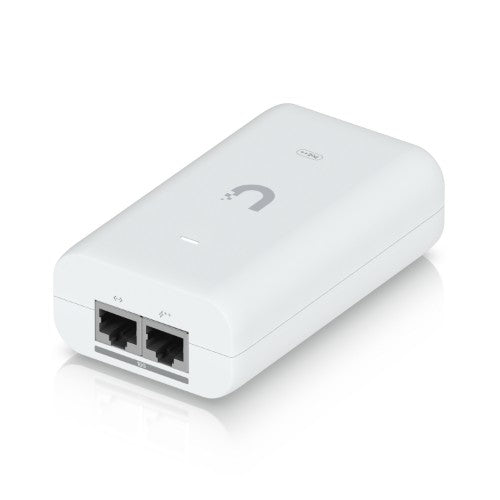

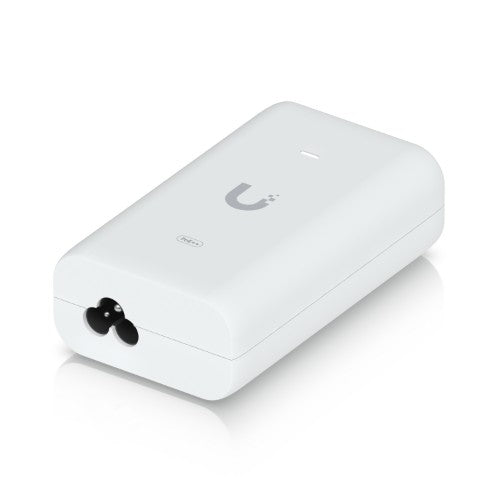

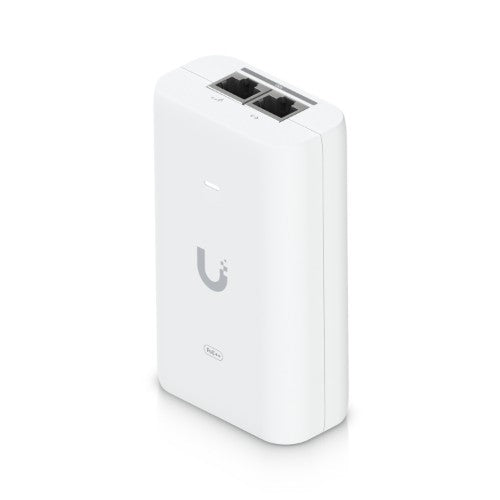

Ubiquiti UACC-PoE++-10G 10 Gigabit Ethernet 54 V

10G PoE++ Adapter (60W), 54V DC @ 1.12A, 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")

Key Features

• Delivers up to 60W of PoE++
• Surge, peak pulse, and overcurrent protection

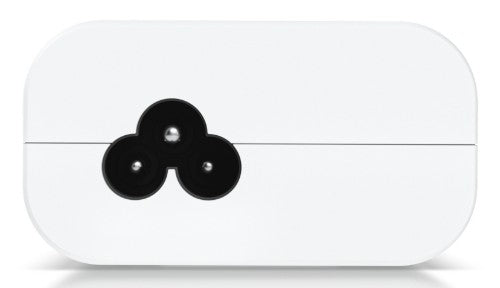

• Contains RJ45 data input, AC cable with earth ground, and PoE++ output
• LED indicator for status monitoring

Description

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Specifications

Network
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet interface type	10 Gigabit Ethernet
Power over Ethernet (PoE) voltage	54 V
Features
Wall mountable	Yes
Surge protection	Yes
Product colour	White
Power protection features	Over current, Peak pulse, Surge protection
LED indicators	Status
Ports & interfaces

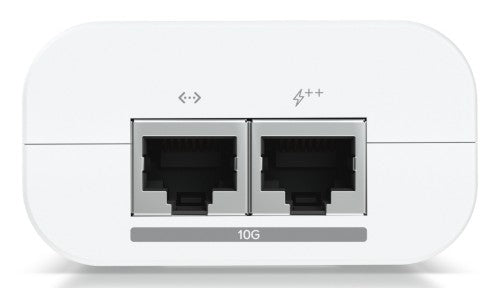

Ethernet LAN (RJ-45) ports	2
Power
Output current	1.12 A
Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE) voltage	54 V
Input current	1.5 A
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Certificates
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Weight	210 g
Width	63 mm
Depth	34 mm
Height	106 mm
Packaging content
Number of products included	1 pc(s)
Technical details
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	32 - 104 °F
Number of products included	1 pc(s)
Input current	1.5 A
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet interface type	10 Gigabit Ethernet
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
Indication
LED indicators	Status
