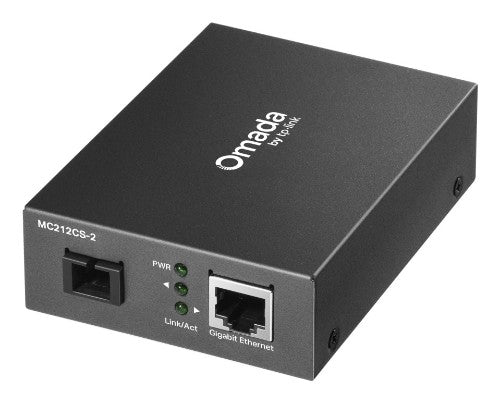

TP-Link Omada MC212CS-20 network media converter 1000 Mbit/s 1550 nm Single-mode Black

Omada Gigabit WDM Media Converter, 1× Gigabit SC/UPC Fiber Port, 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

Key Features

• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 20 km

Description

MC212CS-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

Specifications

Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Fiber optic connector	SC/UPC
Performance
Wavelength-division multiplexing (WDM)	Yes
Wavelength	1550 nm
Maximum transfer distance	20000 m
Fiber mode structure	Single-mode
Features
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC/UPC
Power
Input voltage	9 V
Input current	0.6 A
Weight & dimensions
Width	94.5 mm
Depth	73 mm
Height	27 mm
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Manual	Yes
Design
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
