Viewsonic TD2223-2 computer monitor 55.9 cm (22") 1920 x 1080 pixels Full HD LCD Touchscreen Black

22", 1920 x 1080 Full HD, VA, LCD, 75 Hz, IR Touch Technology, 2x 2 W speakers, VESA

Key Features

• Intuitive 10-point touchscreen
• Finger, stylus, and glove touch compatible
• Magnetic pen placeholder
• Adjustable back tilt up to 40-degrees
• Scratch-resistant 7H hardness screen

Description

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

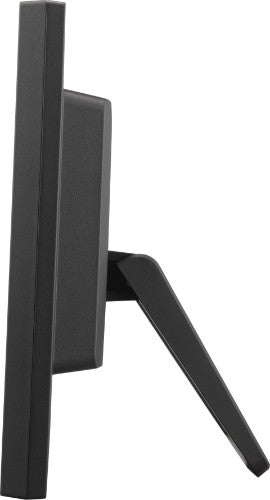

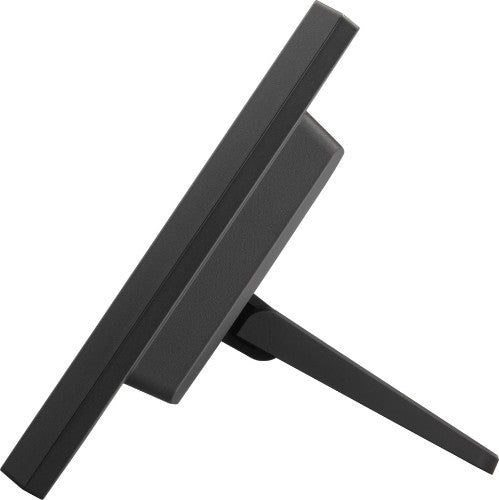

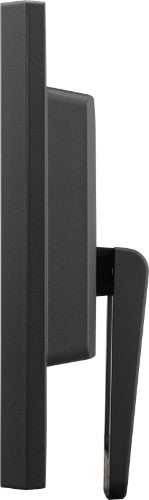

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.

Dimension & I/O Ports
Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

Specifications

Display
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
sRGB coverage (typical)	104%
Display diagonal	55.9 cm (22")
Response time	6.5 ms
Display resolution	1920 x 1080 pixels
Display technology	LCD
Contrast ratio (typical)	3000:1
Contrast ratio (dynamic)	20000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.249 x 0.241 mm
HD type	Full HD
Display surface	Gloss
NTSC coverage (typical)	72%
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	VA
Colour depth	8 bit
Display diagonal (metric)	55.9 cm
Touch technology	Multi-touch
Touchscreen technology	Infrared
LED backlight	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	4 W
Design
Market positioning	Office
Product colour	Black
Feet colour	Black
Certification	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
Glass thickness	2 mm
Ports & interfaces
Built-in USB hub	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
Headphone outputs	1
Headphone connectivity	3.5 mm
Headphone out	Yes
HDMI	Yes
AC (power) in	Yes
HDMI version	1.4
Number of USB Type-B upstream ports quantity	1
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	20 - 40°
Height adjustment	No
On Screen Display (OSD)	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
Power supply type	Internal
AC input voltage	100 - 240 V
Power consumption (max)	21.8 W
Power consumption (standby)	0.5 W
Power consumption (typical)	18.5 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	AC, Audio, HDMI, USB Type-A to USB Type-B
Weight & dimensions
Width (with stand)	519 mm
Depth (with stand)	101 mm
Height (with stand)	329 mm
Width (without stand)	519 mm
Height (without stand)	308 mm
Depth (without stand)	61 mm
Weight (with stand)	4.2 kg
Weight (without stand)	3.7 kg
Package width	580 mm
Package depth	162 mm
Package height	405 mm
Package weight	5.7 kg
Packaging data
Package width	580 mm
Package depth	162 mm
Package height	405 mm
Package weight	5.7 kg
Stand included	Yes
Quick start guide	Yes
Cables included	AC, Audio, HDMI, USB Type-A to USB Type-B
Other features
Power consumption (max)	21.8 W
Width (without stand)	519 mm
Quick start guide	Yes
Height (without stand)	308 mm
HDMI	Yes
Depth (without stand)	61 mm
Power supply type	Internal
Touchscreen	Yes
Number of simultaneous touchpoints	10
Certificates
Certification	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
Technical details
Power supply type	Internal
Weight (with stand)	4.2 kg
Touchscreen	Yes
Number of simultaneous touchpoints	10
