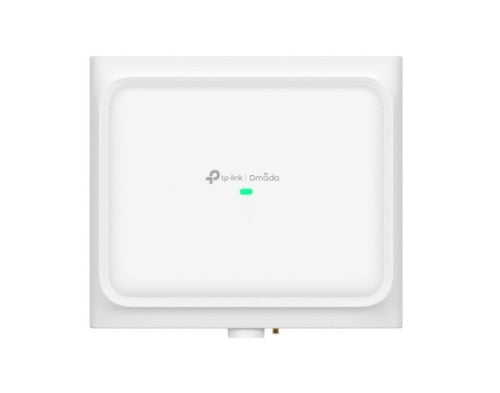

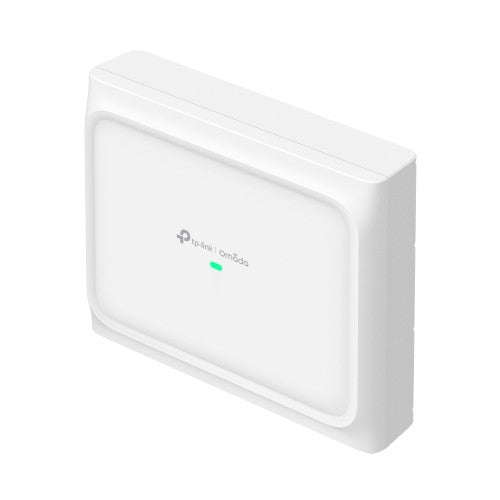

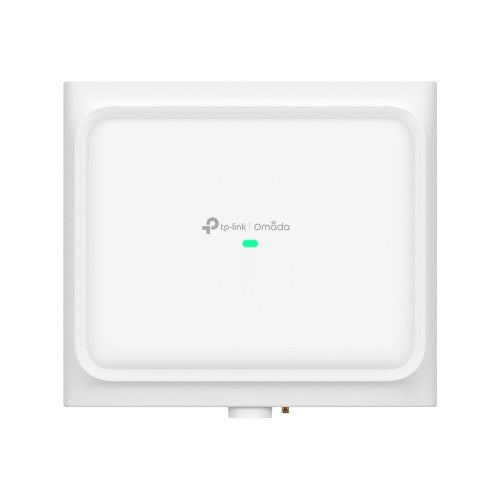

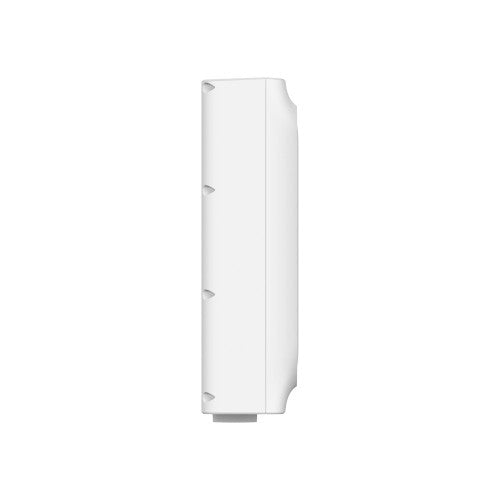

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point

574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz), 802.3at PoE, 1x Gigabit Ethernet, IP68, 230 x 207.5 x 69.7 mm

Key Features

• Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
• Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
• Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range
• 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners
• Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology
• Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI

Description

Omada AX3000
Indoor/Outdoor WiFi 6
Access Point

Designed for Warehouses
The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.

Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4× built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage.

Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Automatic channel selection	Yes
Maximum data transfer rate	3000 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Web-based management	Yes
Maximum indoor range	500 m
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Automatic channel selection	Yes
Maximum data transfer rate	3000 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum indoor range	500 m
Bluetooth	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Security
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Management features
Web-based management	Yes
Ports & interfaces

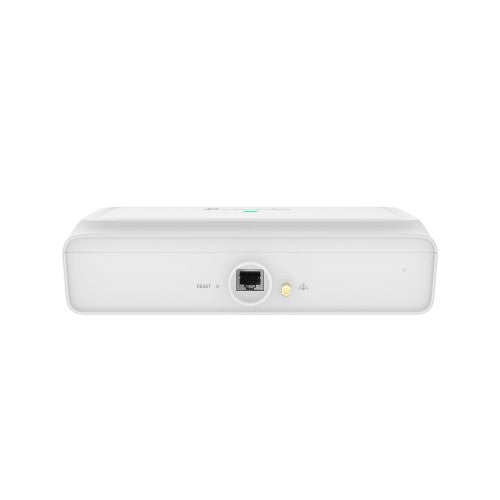

Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
AC input voltage	48 V
Power over Ethernet (PoE) type supported	Passive PoE
Design
Placement	Ceiling, Wall
Product colour	White
Antenna
Antenna type	Internal
Weight & dimensions
Width	230 mm
Depth	207.5 mm
Height	69.7 mm
Packaging data
Quick start guide	Yes

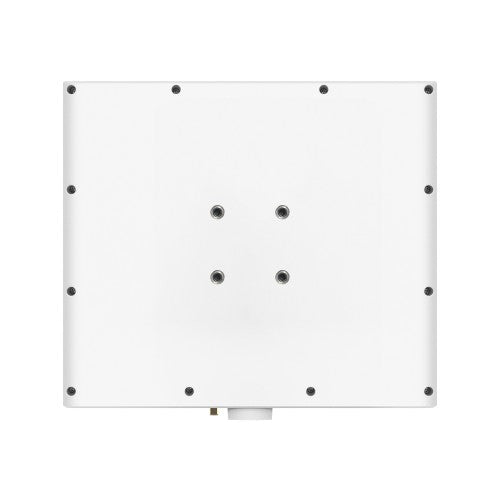

Mounting kit	Yes
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Other features
Vertical beam width	30°
Horizontal beam width	120°
Logistics data
Quantity per pack	1 pc(s)
