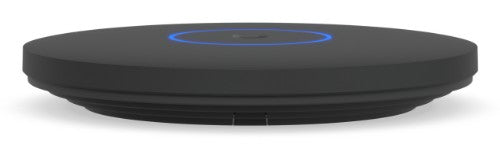

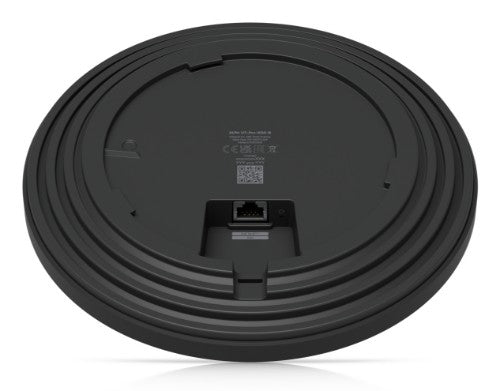

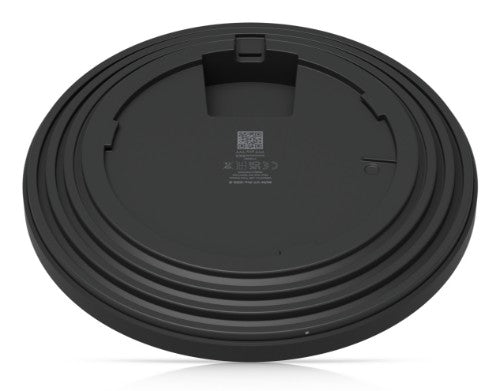

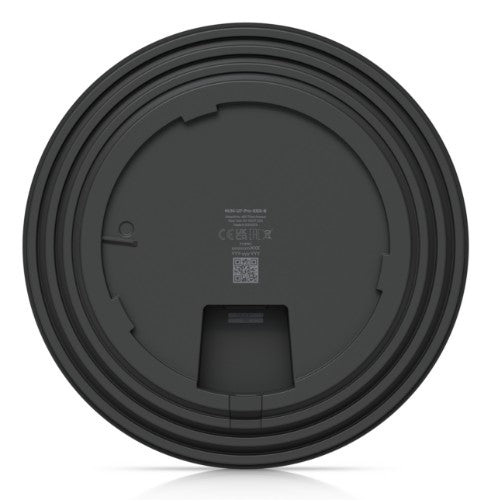

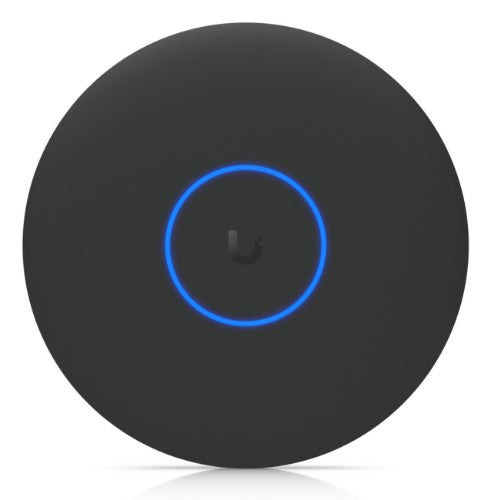

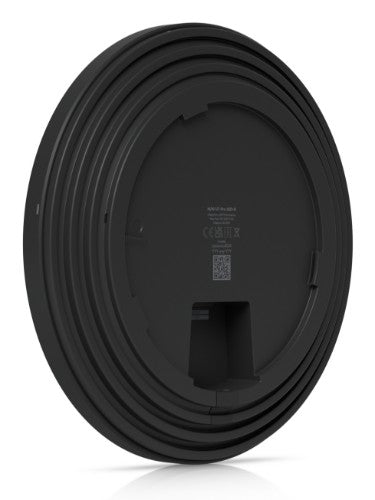

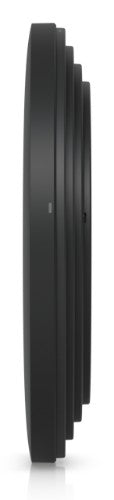

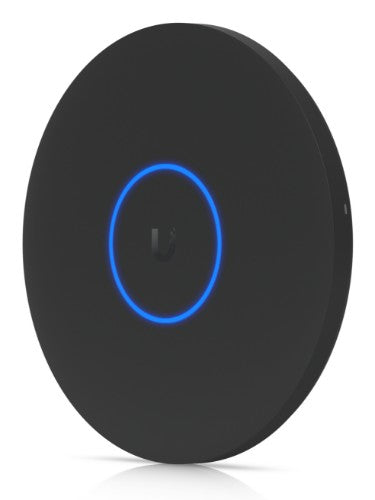

Ubiquiti U7 Pro XGS 8600 Mbit/s Black Power over Ethernet (PoE)

WiFi 7 (802.11a/b/g/n/ac/ax/be), 6 GHz, 160 m² (1,750 ft²), 10/5/2.5/1 GbE, PoE++, 500+ clients, 215 x 32.5 mm, 800 g

Description

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	8600 Mbit/s
Ethernet LAN data rates	1000,2500,5000,10000 Mbit/s
Frequency band	2.4, 5, 6 GHz
Number of users	500 user(s)
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Features
6 GHz	Yes
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	8600 Mbit/s
Ethernet LAN data rates	1000,2500,5000,10000 Mbit/s
Frequency band	2.4, 5, 6 GHz
Number of users	500 user(s)
VLAN support	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Fast roaming	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	8600 Mbit/s
Fit AP mode features	Hotspot 2.0
Maximum data transfer rate (6 GHz)	5800 Mbit/s
Spatial streams	8
Coverage area	160 m²
Wireless meshing	Yes
Maximum Tx power (2.4 GHz)	23 dBmW
Maximum Tx power (5 GHz)	29 dBmW
Maximum Tx power (6 GHz)	24 dBmW
Security
Security algorithms	PPSK
Management features
Access point management	Wi-Fi schedule
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	29 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Design
Placement	Ceiling, Wall
Housing material	Metal, Polycarbonate (PC)
Reset button	Yes
LED indicators	Status
Product colour	Black
Antenna
Antenna type	Internal
Antenna gain level (max)	6 dBi
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Software
Fast roaming	Yes
Weight & dimensions
Width	215 mm
Depth	32.5 mm
Height	215 mm
Weight	800 g
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 40 °C
Logistics data
Quantity per pack	1 pc(s)
