Ubiquiti UniFi WAN Switch Gigabit Ethernet (10/100/1000) 1U Grey

20 Gbps, 1 x GbE RJ45, 3 x 10G SFP+, Rack mount (1U), 13W, 442.4 x 120 x 43.7 mm

Description

10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.

Specifications

Management features
Reset button	Yes
Ports & interfaces
SFP+ module slots quantity	3
Basic switching RJ-45 Ethernet ports quantity	1
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	AC/DC
Power cables quantity	2
Network
10G support	No
Data transmission
Switching capacity	20 Gbit/s
Forwarding rate	15 Mpps
Throughput	10 Gbit/s
Design
Reset button	Yes
Rack mounting	Yes
Product colour	Grey
Form factor	1U
LED indicators	Network, System
Housing material	SGCC
Power
Power consumption (max)	13 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC/DC
Power connector	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	442.4 mm
Depth	120 mm
Height	43.7 mm
Weight	2.2 kg

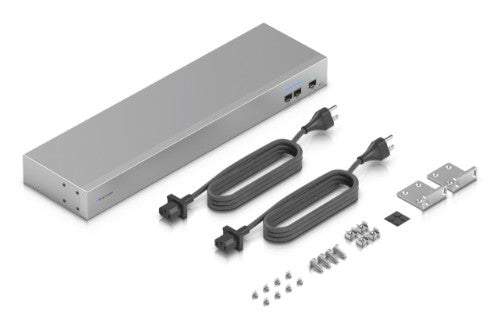

Packaging content
Rack mount kit	Yes
Cables included	Power
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Packaging data
Rack mount kit	Yes
Cables included	Power
