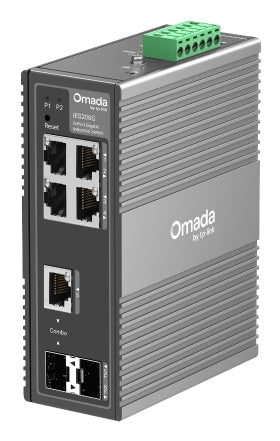

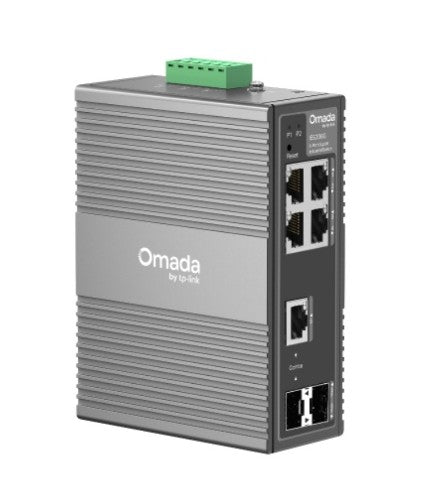

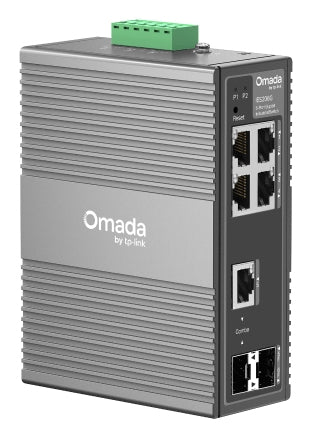

TP-Link Omada IES206G network switch Managed Gigabit Ethernet (10/100/1000) Black

IES206G - Omada 6-Port Gigabit Industrial Easy Managed Switch

Key Features

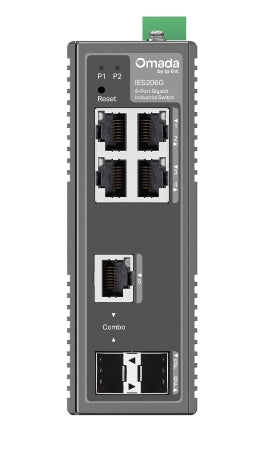

• 6× Gigabit Ports (4× RJ45, 1× Combo RJ45/SFP, 1×SFP)
• Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
• Abundant Features: VLAN, QoS, and STP/RSTP
• Centralized Cloud Management via the Web or Omada App†
• Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Description

TP-Link IES206G Omada 6-Port Gigabit Industrial Easy Managed Switch
• 6× Gigabit Ports (4× RJ45, 1× Combo RJ45/SFP, 1×SFP)
• Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
• Abundant Features: VLAN, QoS, and STP/RSTP
• Centralised Cloud Management via the Web or Omada App†
• Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Warranty Period: 5-Year

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	1
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	15000
MAC address table	8000 entries
Switching capacity	12 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	8.93 Mpps
Security
IGMP snooping	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design

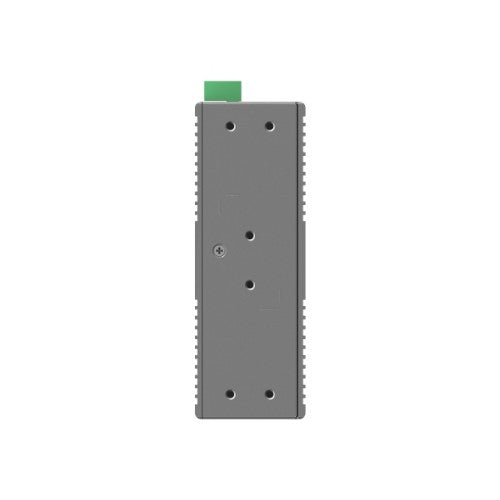

DIN rail mounting	Yes
Wall mountable	Yes
Product colour	Black
Certification	FCC, CE, RoHS
Performance
Fanless	Yes
Auto-negotiation	Yes
Power
Power supply included	Yes

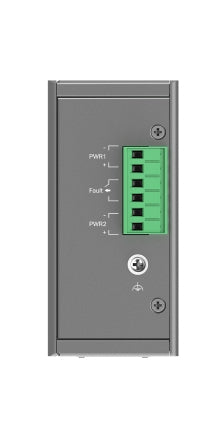

Redundant power supply (RPS) support	Yes
DC input voltage	9 - 60 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	129 mm
Depth	95 mm
Height	45 mm
Certificates
Certification	FCC, CE, RoHS
