Ubiquiti UniFi Pro XG 8 PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey

155W, 8 x 10GbE RJ45, 2 x 10G SFP+, 200 Gbps, SGCC steel, 210.4 x 173.8 x 43.7 mm

Description

Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.

Specifications

Management features
Reset button	Yes
Switch layer	L2/L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Power connector	DC-in jack
10G Ethernet (copper) ports quantity	8
Network
Number of VLANs	1000
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Interface-based VLAN, Voice VLAN
IPv4 routes	12000
IGMP snooping	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	200 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	2 MB
Static route	Yes
Forwarding rate	149 Mpps
Throughput	100 Gbit/s
Number of VLANs	1000
Security
Loop protection	Yes
IGMP snooping	Yes
DHCP features	DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
Multicast features
Multicast support	Yes
Design
Reset button	Yes
Wall mountable	Yes
Rack mounting	No
Product colour	Grey
LED indicators	System
Housing material	SGCC
Power
Power consumption (max)	220 W
Power supply included	Yes
Power source	AC/DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	15.4 W
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	155 W
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
Number of VLANs	1000
VLAN support	Yes
Virtual LAN features	Interface-based VLAN, Voice VLAN
Weight & dimensions
Width	210.4 mm
Depth	173.8 mm
Height	43.7 mm
Weight	1.6 kg

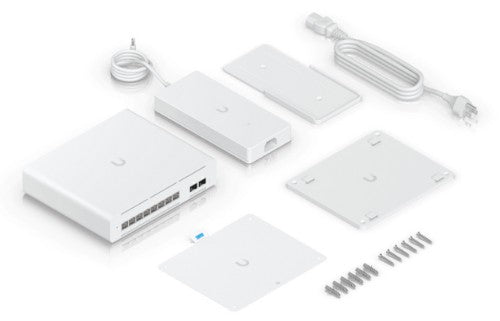

Packaging content
Manual	Yes
Cables included	Power
Performance
Packet buffer memory	2 MB
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Packaging data
Manual	Yes
Cables included	Power
