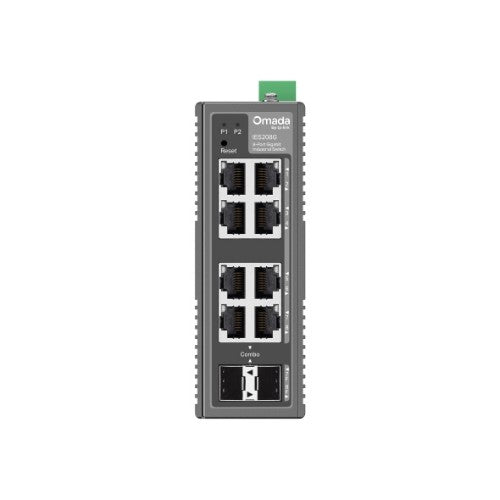

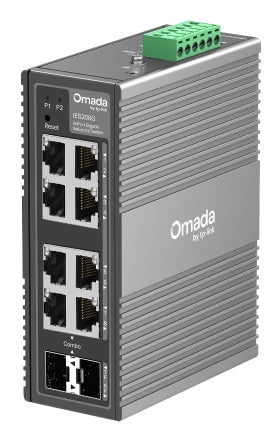

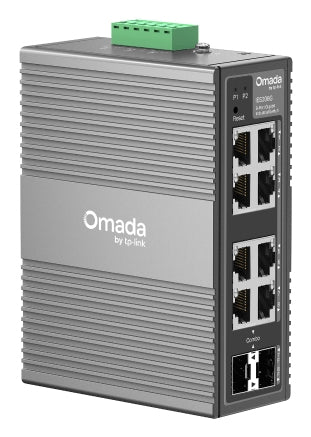

TP-Link Omada IES208G network switch Managed Gigabit Ethernet (10/100/1000)

IES208G Omada 8-Port Gigabit Industrial Easy Managed Switch

Key Features

• 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
• Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
• Abundant Features: VLAN, QoS, and STP/RSTP
• Centralized Cloud Management via the Web or Omada App†

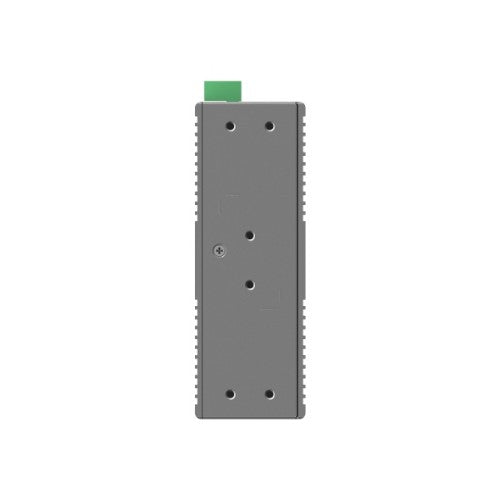

• Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Description

Enhanced Networking Stability and Security

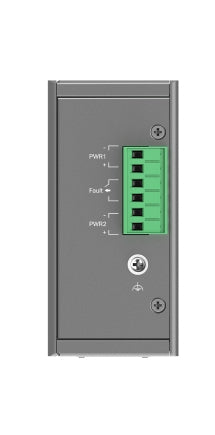

1+1 Redundant Power Input
Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.

Easy Operation and Maintenance with Omada’s Free Cloud Management

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	15000
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Forwarding rate	11.9 Mpps
Security
Static port security	Yes
IGMP snooping	Yes
Design
DIN rail mounting	Yes
Wall mountable	Yes
Power
Redundant power supply (RPS) support	Yes
DC input voltage	9.6 - 60 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Width	129 mm
Depth	95 mm
Height	45 mm
Performance
Auto-negotiation	Yes
