TP-LINK

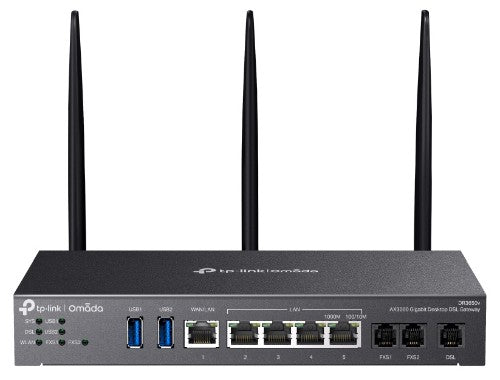

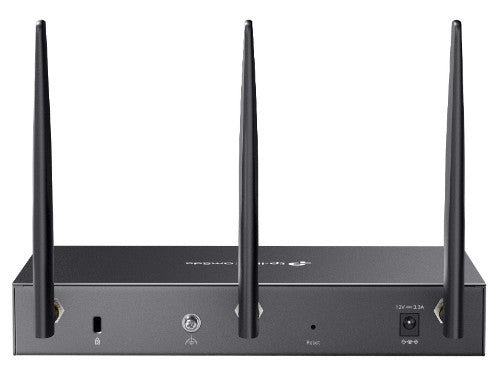

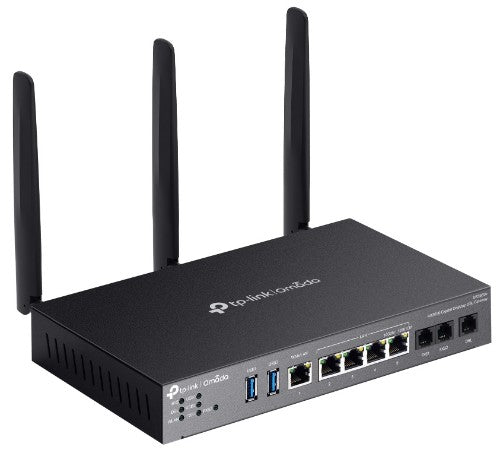

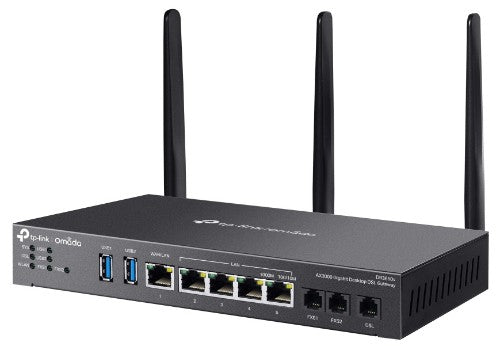

TP-Link Omada DR3220v-4G wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Regular price
$530.04 AUD
Regular price
Sale price
$530.04 AUD
Unit price
per
Use the contact form below to check availability.
2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps (HE160), 256 MB NAND, 512 MB DDR4, 393.5Mbps, 129.3Mbps, 126.7Mbps, 802.1Q VLAN, 50 Tunnels, CE, RoHS
• Support 4G+ Cat6 up to 300 Mbps*
• Super VDSL (VDSL2 35b): Supports 350Mbps DSL Access†
• VDSL2/ADSL2+/ADSL2/ADSL Compatibility
• 1× DSL Port, 2× FXS Ports, 1× Gigabit SFP/RJ45 Combo WAN/LAN Port, 4× Gigabit RJ45 LAN Ports, 1× USB 3.0 Port
• 2× Nano SIM for 4G/LTE Failover
• DPI Security Support
• IPSec / PPTP / L2TP / OpenVPN / WireGuard / GRE** / SSL VPN
• Load Balancing Across DSL, 4G, and Ethernet WAN for Optimised Connectivity
• Centralised Cloud Management
• Desktop / Rack-Mounting
Please note this DR model does NOT have Wi-Fi module.
Warranty Period: 5-Year
Key Features
- AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*1*4
- VDSL2 35b: Supports 350Mbps DSL Access*2
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- Centralized Cloud Management
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Load Balancing Between DSL and Ethernet WAN
- Omada Mesh Technology*3
- 3 × RJ11 Ports (2 × FXS, 1 × DSL) & 5 × RJ45 Gigabit Ports & 2 × USB 3.0 Ports

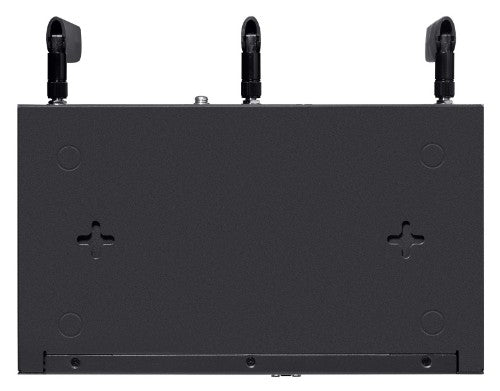

- Desktop/Wall Mounting
- 8.9 × 5.2 × 1.4 in (226 × 131.2 × 35 mm)
Description

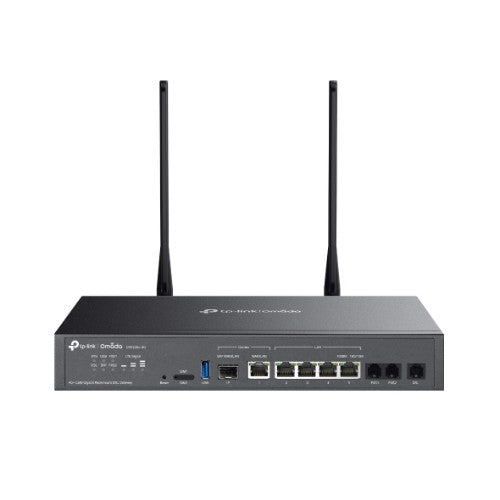

TP-Link DR3220v-4G Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway• Support 4G+ Cat6 up to 300 Mbps*
• Super VDSL (VDSL2 35b): Supports 350Mbps DSL Access†
• VDSL2/ADSL2+/ADSL2/ADSL Compatibility
• 1× DSL Port, 2× FXS Ports, 1× Gigabit SFP/RJ45 Combo WAN/LAN Port, 4× Gigabit RJ45 LAN Ports, 1× USB 3.0 Port
• 2× Nano SIM for 4G/LTE Failover
• DPI Security Support
• IPSec / PPTP / L2TP / OpenVPN / WireGuard / GRE** / SSL VPN
• Load Balancing Across DSL, 4G, and Ethernet WAN for Optimised Connectivity
• Centralised Cloud Management
• Desktop / Rack-Mounting
Please note this DR model does NOT have Wi-Fi module.
Warranty Period: 5-Year
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| DSL features | |
| DSL WAN | Yes |
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| Network | |
| Network address translation (NAT) | Yes |
| Guest access | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| VPN support | IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port triggering | Yes |
| Built-in FTP server | Yes |
| Static route | Yes |
| Policy-based routing | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| Protocols | |
| DMZ support | Yes |
| Voice codecs | G.711a, G.711ulaw, G.722, G.726, G.729ab |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| MU-MIMO technology | Yes |
| Security | |
| VPN support | IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN |
| URL filtering | Yes |
| System event log | Yes |
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Network address translation (NAT) | Yes |
| Guest access | Yes |
| DMZ support | Yes |
| Access Control List (ACL) | Yes |
| Performance | |
| Voice codecs | G.711a, G.711ulaw, G.722, G.726, G.729ab |
| Packaging content | |
| Package type | Box |
| Number of products included | 1 pc(s) |
| Cables included | LAN (RJ-45), Phone |
| AC adapter included | Yes |
| Antenna included | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ports & interfaces | |
| USB port | Yes |
| RJ-11 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Design | |
| Product type | Tabletop router |
| Wall mountable | Yes |
| LED indicators | DSL, LAN, USB, WLAN |
| Product colour | Black |
| Indication light | Yes |
| Antenna | |
| Antenna design | External |
| Detachable antenna(s) | Yes |
| Antennas quantity | 3 |
| Antenna gain level (max) | 4.5 dBi |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 3.3 A |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 226 mm |
| Height | 35 mm |
| Depth | 131 mm |
| Packaging data | |
| Package type | Box |
| Cables included | LAN (RJ-45), Phone |
| AC adapter included | Yes |
| Number of products included | 1 pc(s) |
| Antenna included | Yes |
