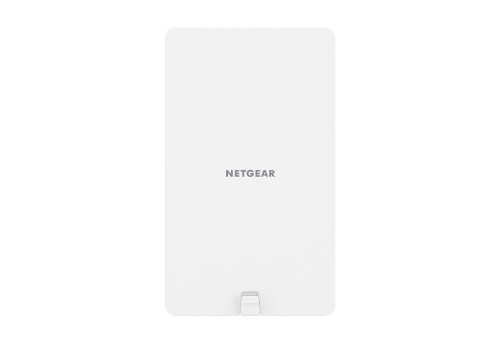

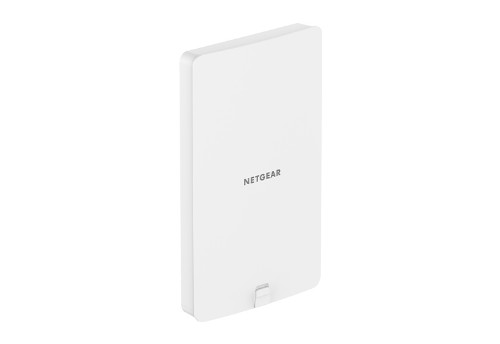

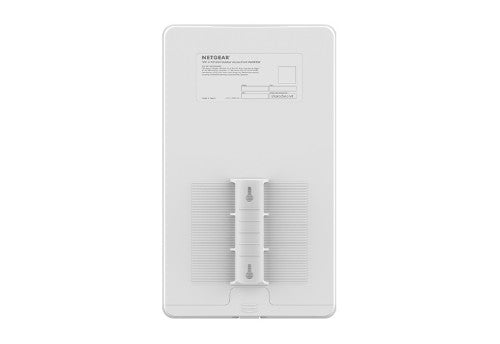

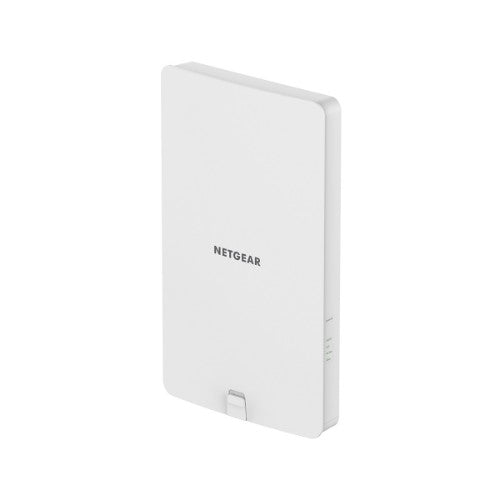

NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Outdoor Access Point (WAX610Y) 1800 Mbit/s White Power over Ethernet (PoE)

Dual band, 802.11ax, PoE, White, 2x2 MU-MIMO, IP55

Description

Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610Y is an outdoor wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610Y is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come. WAX610Y is designed to withstand harsh environment conditions including prolonged exposure to sunlight, cold, frost, snow, rainfall, hail and humidity. It is rated IP55 and supports temperatures from -20C to 60C.

The WAX610Y is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610Y also comes with an intuitive local management GUI as one of the choices. The WAX610Y features 2x2 Multi-user MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.

Package Contents

- WAX610Y Insight Managed Outdoor Wireless Access Point
- Wall/ceiling mount kit
- Pole mount kit
- Installation guide

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Auto Wireless Distribution System (WDS)	Yes
Maximum data transfer rate	1800 Mbit/s
Ethernet LAN data rates	100,1000,2500 Mbit/s
Spread spectrum method	OFDM, OFDMA
VLAN support	Yes
Networking standards	IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at
MIMO type	Multi User MIMO
MIMO	Yes
Features
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Maximum data transfer rate	1800 Mbit/s
Ethernet LAN data rates	100,1000,2500 Mbit/s
Spread spectrum method	OFDM, OFDMA
VLAN support	Yes
Networking standards	IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at
Adaptive bandwidth management	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Security
Auto Wireless Distribution System (WDS)	Yes
Security algorithms	EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSID, TTLS, WPA, WPA2, WPA3
MAC address filtering	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	16.1 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Pole, Wall
International Protection (IP) code	IP55
LED indicators	LAN, Power, WLAN
Product colour	White
Antenna
Antenna type	Internal
Technical details
Harmonized System (HS) code	85176990
Software
Adaptive bandwidth management	Yes
Weight & dimensions
Width	181 mm
Depth	305 mm
Height	34 mm
Weight	940 g
Package width	390 mm
Package depth	430 mm
Package height	350 mm
Package weight	11.7 kg
Packaging data
Mounting kit	Yes
Package width	390 mm
Package depth	430 mm
Package height	350 mm
Package weight	11.7 kg
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
