APC

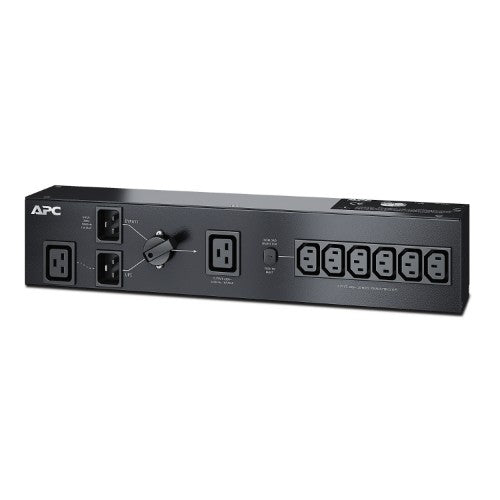

APC Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19
Regular price
$584.00 AUD
Regular price
Sale price
$584.00 AUD
Unit price
per
Use the contact form below to check availability.
230V, 16A, 3000VA, 6 x IEC 320 C13 & 1 x IEC 320 C19 Out, 1 x IEC Jumper, 1 x IEC-320 C20 In, OLP, 2.5m Cord, 2.09kg, Black
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Description
APC Maintenance Bypass Panels , Input: 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet ( 2.5 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19,IEC JumpersQuick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Specifications
| Features | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certification | VDE, REACH |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 76 mm |
| Height | 89 mm |
| Weight | 2.09 kg |
