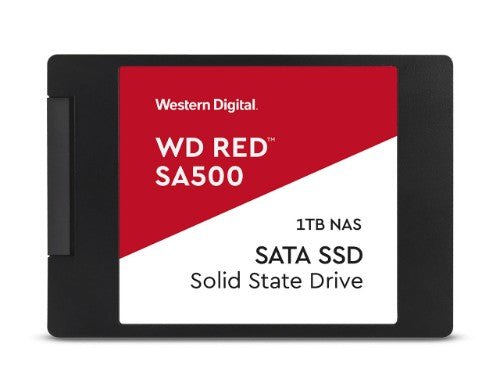

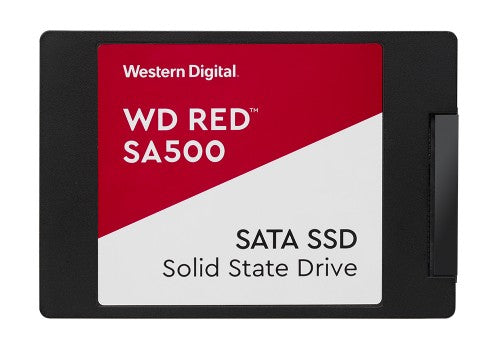

Western Digital Red SA500 1 TB 2.5" Serial ATA III 3D NAND

1000 gb, SATA 6GB/s, 2.5", 560 / 530 MB/s

Key Features

• Superior endurance for 24x7 environments
• Purpose-built for NAS with proven Western Digital 3D NAND
• Reduced latency, improved responsiveness for demanding applications
• 2.5” and M.2 form factors fit modern NAS slots
• Capacities from 500GB up to 4TB1 (2.5” only) to meet your storage needs

Description

Supercharge your NAS
Boost your NAS system’s performance and responsiveness with the WD Red™ SA500 NAS SATA SSD. Since your NAS system is always on, a reliable drive is essential. Unlike standard SSDs, WD Red NAS SATA SSDs are specifically designed and tested for 24/7 usage. This durability together with efficient caching of big files make these drives ideal for OLTP databases, multi-user environments, photo rendering, 4k and 8k video editing and other demanding applications. With 2.5” and M.2 form factors and capacities from 500GB up to 4TB1 (2.5” only), the WD Red SA500 NAS SATA SSD lets you optimize your existing or next NAS system for superior performance and endurance.

The Drive For NAS
Speed
Optimized for caching in NAS systems to rapidly access your most frequently used content
Endurance
For tough workloads demanded by NAS, giving you the reliability you need in a 24/7 environment
Flexible
Available in 2.5” and M.2 form factors so you can upgrade your existing NAS system or design a new one from scratch

Specifications

Performance
Windows operating systems supported	Yes
Interface	Serial ATA III
Component for	PC/Laptop
SSD capacity	1 TB
Read speed	530 MB/s
Write speed	560 MB/s
NVMe	No
Memory type	3D NAND
Data transfer rate	6 Gbit/s
Random read (4KB)	95000 IOPS
Random write (4KB)	85000 IOPS
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Hardware encryption	No
Mean time between failures (MTBF)	1750000 h
TBW rating	600
Features
Interface	Serial ATA III
Component for	PC/Laptop
SSD capacity	1 TB
Read speed	530 MB/s
Write speed	560 MB/s
NVMe	No
Memory type	3D NAND
Data transfer rate	6 Gbit/s
Random read (4KB)	95000 IOPS
Random write (4KB)	85000 IOPS
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Hardware encryption	No
Mean time between failures (MTBF)	1750000 h
TBW rating	600
Windows operating systems supported	Yes
Certification	FCC, UL, TUV, KC, BSMI, VCCI
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Power
Power consumption (write)	3.75 W
Power consumption (sleep)	0.012 W
Power consumption (read)	2.55 W
Operating voltage	5 V
Design
Certification	FCC, UL, TUV, KC, BSMI, VCCI
SSD form factor	2.5"
Weight & dimensions
Width	69.8 mm
Depth	100.2 mm
Height	7 mm
Weight	37.4 g
System requirements
Windows operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 85 °C
Operating shock	1500 G
Operating vibration	5 G
Non-operating vibration	4.9 G
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 85 °C
Operating shock	1500 G
Operating vibration	5 G
Non-operating vibration	4.9 G
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Software
Windows operating systems supported	Yes
Logistics data
Harmonized System (HS) code	84717070
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
