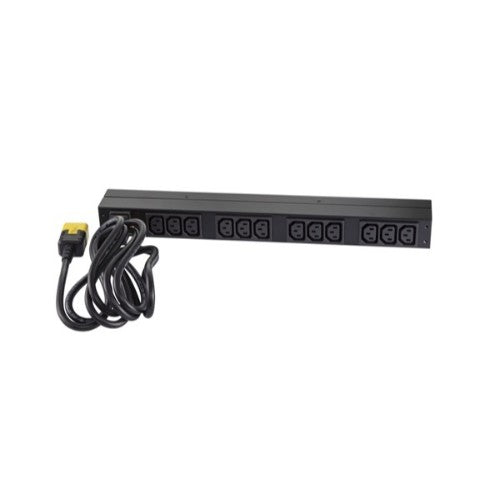

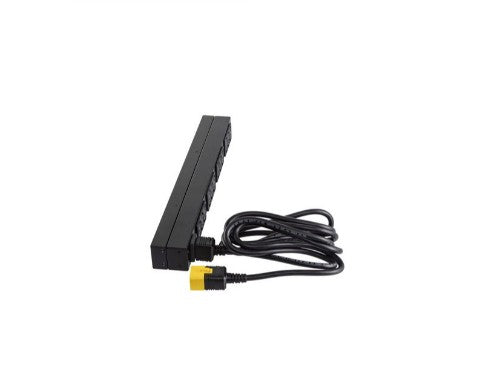

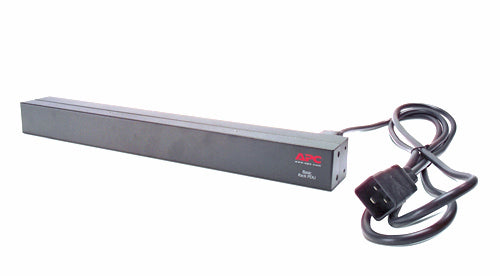

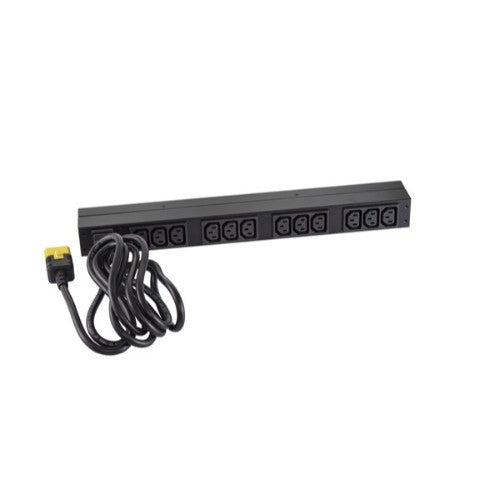

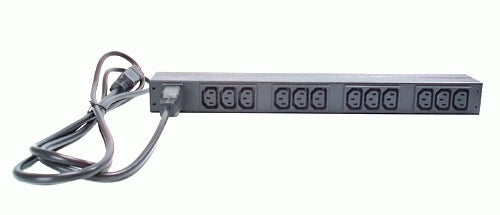

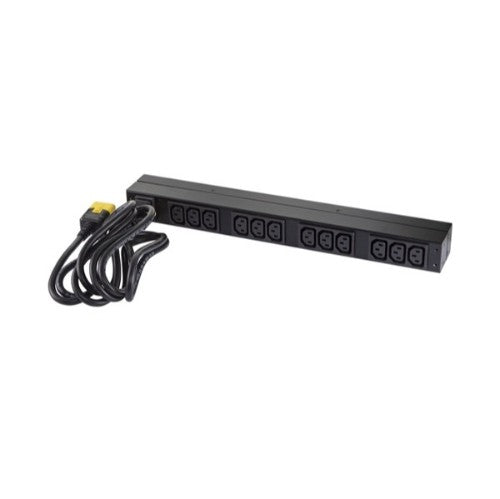

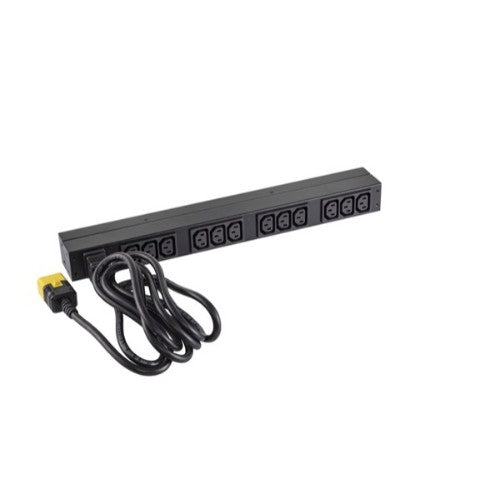

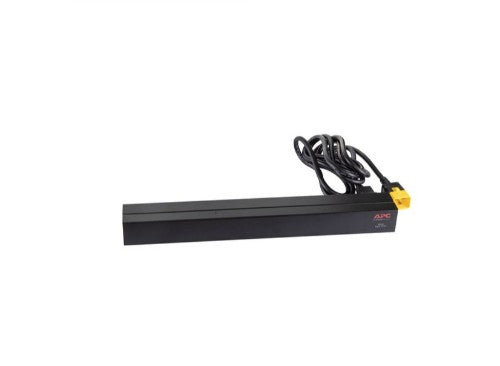

APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord

NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord

Description

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Specifications

Design
Type	Single-phase
PDU types	Basic
Mounting	Horizontal/Vertical
Product colour	Black
Certification	cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Rack capacity	0U/1U
Ports & interfaces
Power plug	C20 coupler
AC outlets quantity	12 AC outlet(s)
AC outlet types	C13 coupler
Input connection type	IEC-320 C20
Output connections	(12) IEC 320 C13
Features
Cable length	2.5 m
Certification	cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Ergonomics
Cable length	2.5 m
Power
Maximum power	3680 W
Load capacity	3680 VA
Maximum input current per phase	16 A
Certificates
Certification	cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Weight	2.05 kg
Width	447 mm
Depth	57.2 mm
Height	44.5 mm
Package width	464 mm
Package depth	229 mm
Package height	70 mm
Package weight	3.64 kg
Packaging data
Package width	464 mm
Package depth	229 mm
Package height	70 mm
Package weight	3.64 kg
Technical details
Total carbon footprint (kg of CO2e)	55.19
Logistics data
Total carbon footprint (kg of CO2e)	55.19
