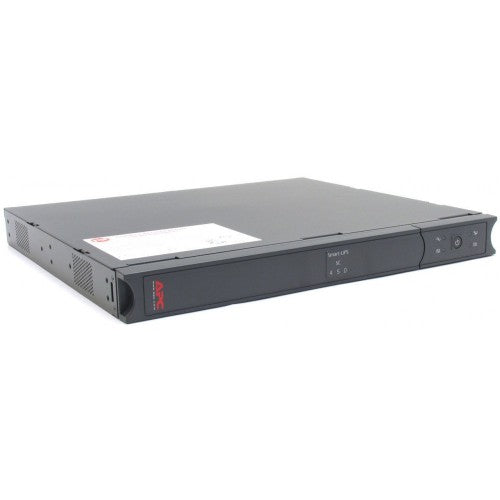

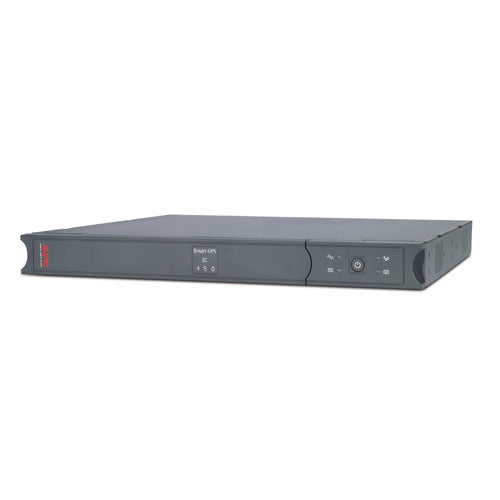

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower

Smart-UPS SC 450VA 230V - 1U Rackmount/Tower

Description

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.

Specifications

Power
Output power capacity	0.45 kVA
Output power	280 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Surge energy rating	320 J
Input frequency	50/60 Hz
Performance
Hold time (min)	4 ms
Hold time (max)	8 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	38 dB
LED indicators	Battery replacement
Audible alarm(s)	Yes
Features
Hold time (min)	4 ms
Hold time (max)	8 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	0.45 kVA
Output power	280 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Surge energy rating	320 J
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	38 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Ports & interfaces
Serial interface	Yes
Serial interface type	RS-232

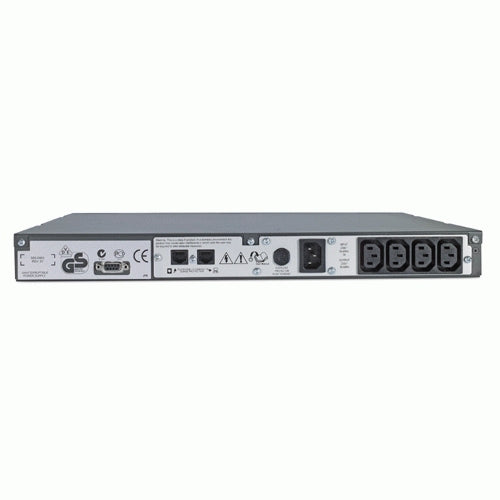

AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Number of output IEC jumpers	2
Ethernet LAN (RJ-45) ports	0
Battery
Battery life (max)	5 year(s)
Battery capacity	108 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	5 h

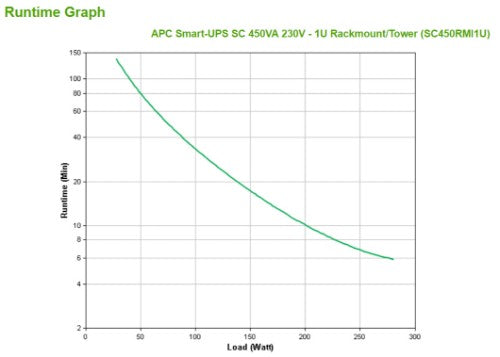

Typical backup time at half load	19.4 min
Typical backup time at full load	5.9 min
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Rack capacity	1U
Form factor	Rackmount/Tower
Product colour	Grey
Certification	C-tick, CE, GOST, VDE, PEP, EOLI
LED indicators	Battery replacement
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	484.92
Compliance certificates	RoHS
Certificates
Certification	C-tick, CE, GOST, VDE, PEP, EOLI
Compliance certificates	RoHS
Packaging content
Cables included	RS-232
Rack mount kit	Yes
Manual	Yes
Software CD	Yes
Weight & dimensions
Width	432 mm
Depth	383 mm
Height	44 mm
Weight	10.2 kg
Package width	476 mm
Package depth	589 mm
Package height	164 mm
Package weight	11.7 kg
Packaging data
Cables included	RS-232
Rack mount kit	Yes
Manual	Yes
Software CD	Yes
Package width	476 mm
Package depth	589 mm
Package height	164 mm
Package weight	11.7 kg
Logistics data
Products per pallet	24 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	484.92
Other features
Nominal output voltage	230 V
