APC AP8853 power distribution unit (PDU) 42 AC outlet(s) 0U Black

NetShelter Metered Rack PDU, 0U, 1PH, 7.4kW 230V32A, 36 C13 and 6 C19 outlets, IEC 309 2P+E cord

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

Design
Type	Single-phase
PDU types	Metered
Mounting	Vertical
Product colour	Black
Certification	RoHS, REACH IEC 60950,VDE
Rack capacity	0U
Ports & interfaces
Power plug	IEC309
AC outlets quantity	42 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler

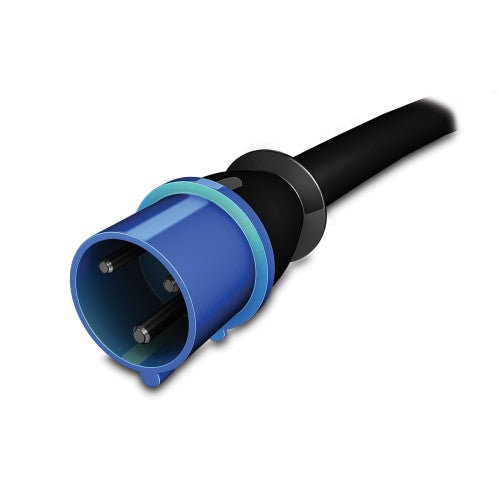

Input connection type	IEC 309 32A 2P+E
Output connections	36x IEC 320 C13 6x IEC 320 C19
Features
Cable length	3 m
Certification	RoHS, REACH IEC 60950,VDE
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	3 m
Power
Maximum power	7680 W
Nominal output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
AC input frequency	50 - 60 Hz
Certificates
Certification	RoHS, REACH IEC 60950,VDE
Operational conditions
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	6.93 kg
Width	56 mm
Depth	44 mm
Height	1791 mm
Technical details
Total carbon footprint (kg of CO2e)	28921.23
Logistics data
Total carbon footprint (kg of CO2e)	28921.23
