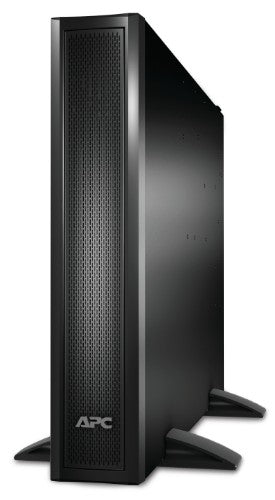

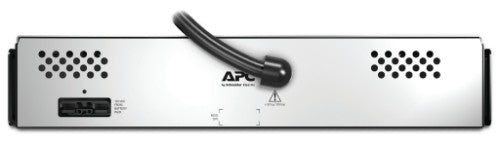

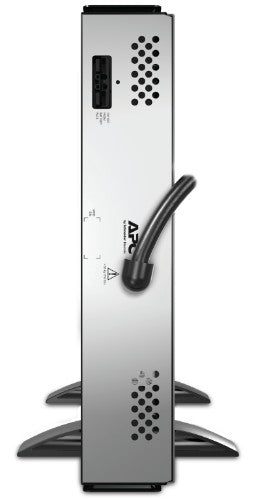

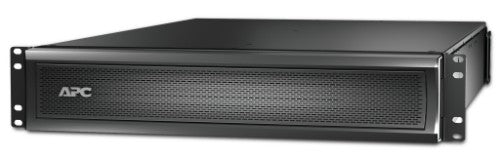

APC Smart-UPS X External Battery Pack, Rack/Tower 2U, 120Vdc, W/rail kit

Smart-UPS X External Battery Pack, Rack/Tower 2U, 120Vdc, W/rail kit

Description

This APC Smart-UPS battery pack connected with SMX Line Interactive UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. This 120Vdc SMX extendable runtime battery pack is compatible with above 2kVA SMX Smart-UPS extended runtime models. The SMX battery pack offers easy plug-and-play installation onto an operating APC Smart-UPS X, ensuring power availability while runtime capacity is added. The lead-acid battery pack has a 2-years warranty. The Smart-UPS battery pack operates equally in tower configuration, standing next to an APC Smart-UPS X, or in rack-mount configuration, mounted below the UPS. The battery pack operates equally in tower configuration, standing next to an APC Smart-UPS, or in rack-mount configuration, mounted below the UPS. Package Includes APC SMX120RMBP2U External Battery Pack, installation guide, and rack-mounting brackets.

Specifications

Features
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	120 V
Certification	REACH, PEP, EOLI
Battery life	5 year(s)
Hot-swap battery	Yes
Product colour	Black
Technical details
Harmonized System (HS) code	85044095
Total carbon footprint (kg of CO2e)	291.4
Compliance certificates	RoHS
Weight & dimensions
Weight	56.4 kg
Width	432 mm
Height	85 mm
Depth	667 mm
Packaging data
Package width	596 mm
Package height	243 mm
Package depth	869 mm
Package weight	63.6 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Logistics data
Harmonized System (HS) code	85044095
