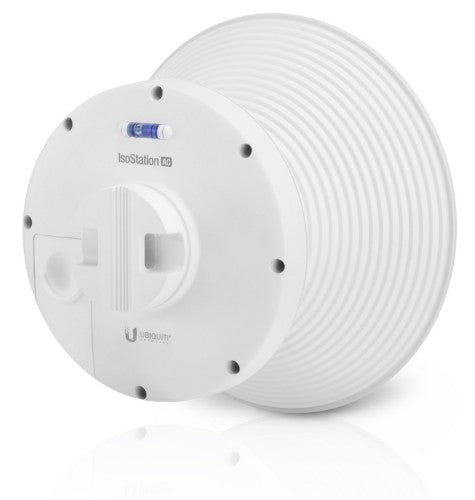

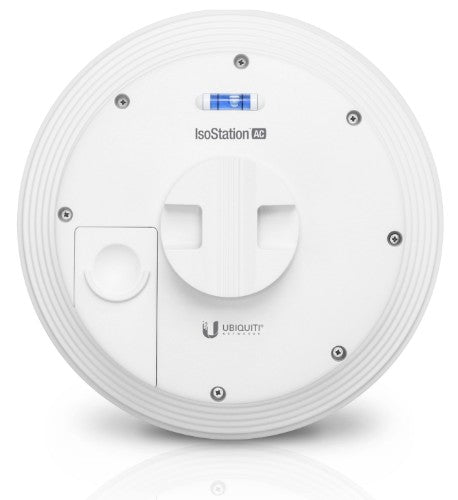

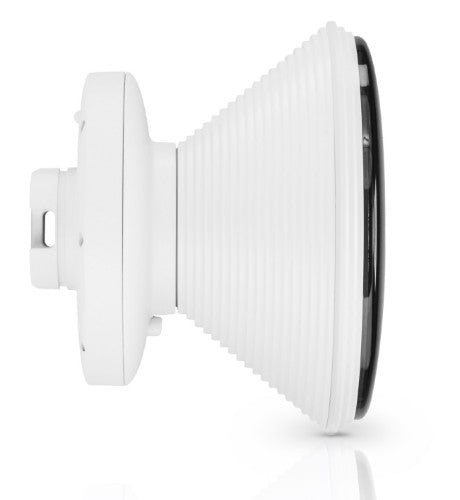

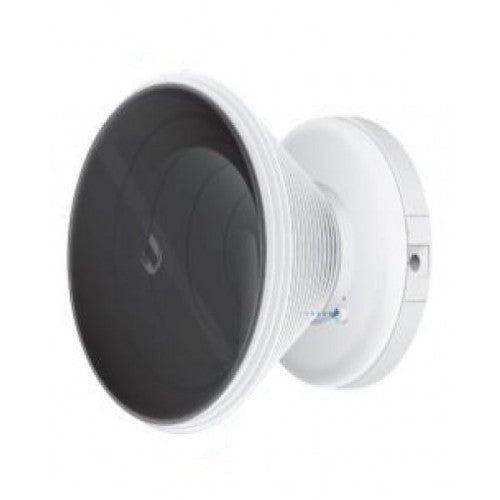

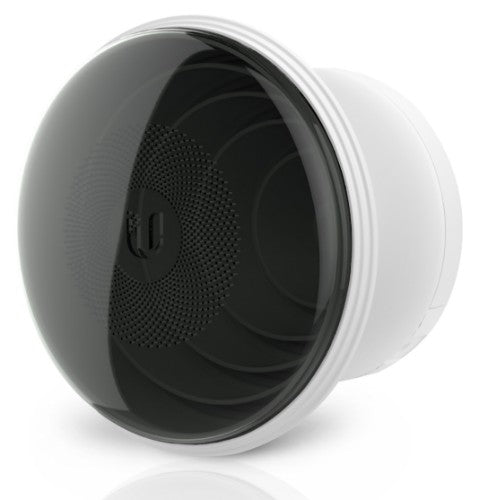

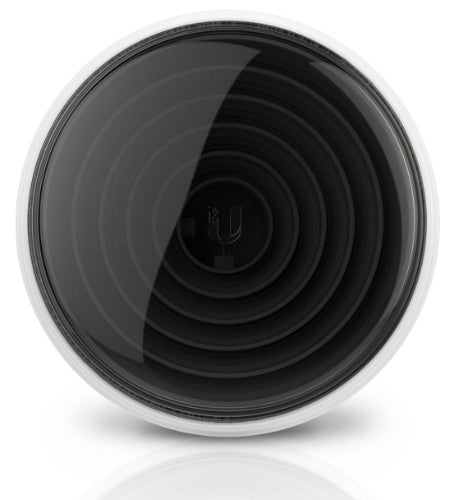

Ubiquiti IsoStation AC 450 Mbit/s White Power over Ethernet (PoE)

450+ Mbps, 14 dBi, MIPS 74 Kc, 64 MB DDR2, PoE, 8.5 W

Description

With a die-cast aluminum base and interchangeable antenna, the IsoStation™ is available in two models and brings increased performance to your network using technology that isolates beam communications between your devices. The IsoStation AC delivers throughput speeds of up to 450+ Mbps, and the IsoStation M5 delivers throughput speeds of up to 100+ Mbps.

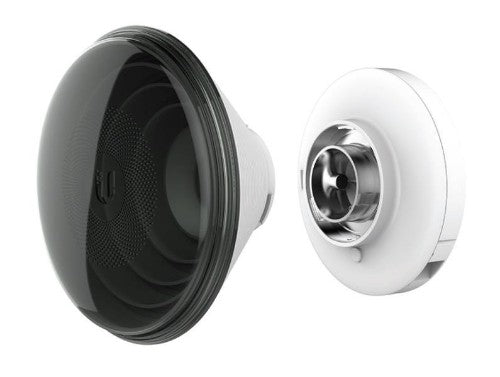

Modular Design
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.

Beam Performance Perfected
The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location
Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity
IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

High MAC Efficiency
High MAC efficiency provides ±80% PHY RATE throughput.

Management Wi-Fi Radio
The IsoStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	450 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 - 2.462, 5.15 - 5.875, 5.15 - 5.25, 5.725 - 5.85 GHz
Web-based management	Yes
Transmitting power	25 dBmW
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Certification	FCC, IC, CE
MIMO	Yes
Internal memory	64 MB
Built-in processor	Yes
Features
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	450 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 - 2.462, 5.15 - 5.875, 5.15 - 5.25, 5.725 - 5.85 GHz
Transmitting power	25 dBmW
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
MIMO	Yes
Internal memory	64 MB
Built-in processor	Yes
Security
Security algorithms	WPA2
Management features
Web-based management	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	8.5 W
Input current	0.5 A
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Design
Placement	Ceiling, Wall
Internal	No
LED indicators	Power
Product colour	White
Certification	FCC, IC, CE
Antenna
Antenna gain level (max)	14 dBi
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	174 mm
Depth	174 mm
Height	150 mm
Weight	725.7 g
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
