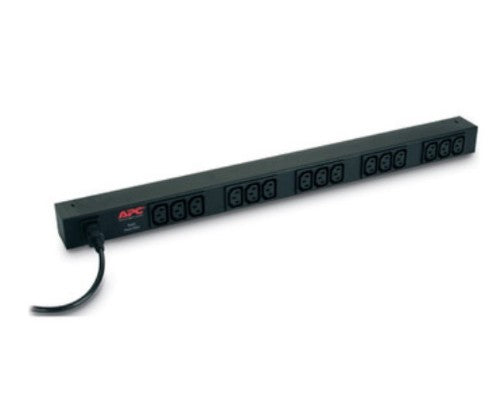

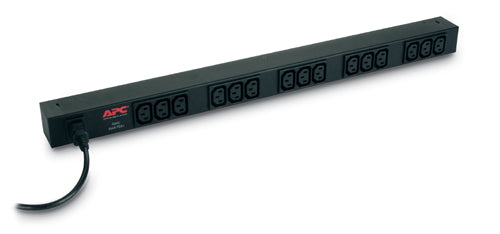

APC RACK PDU BASIC ZERO U 10A 230V power distribution unit (PDU) 15 AC outlet(s) 0U Black

Rack PDU,Basic,Zero U,10A,230V, (15)C13

Description

Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13

Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities

Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit

Output:

Output Voltage(s) (main only) - 208, 230 V

Maximum Total Current Draw per Phase - 10 A

Output Connections - (15)IEC 320 C13

Input:

Nominal input voltage - 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C14

Cord Length - 6.5 feet ( 1.98 meters )

Acceptable Input Voltage - 200-240 VAC

Maximum Input Current per phase - 10.0 A

Load Capacity - 2300

Specifications

Design
Type	Single-phase
PDU types	Basic
Mounting	Vertical
Product colour	Black
Rack capacity	0U
Ports & interfaces
Power plug	C14 coupler
AC outlets quantity	15 AC outlet(s)
AC outlet types	C13 coupler
I/O ports	Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14
Features
Cable length	1.98 m
Ergonomics
Cable length	1.98 m
Power
Maximum power	2300 W
Load capacity	2300 VA
Maximum input current per phase	10 A
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Weight	2 kg
Width	445 mm
Depth	445 mm
Height	609.6 mm
