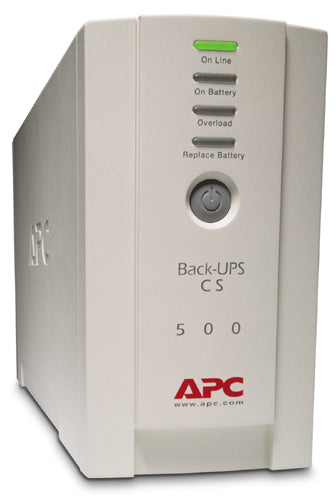

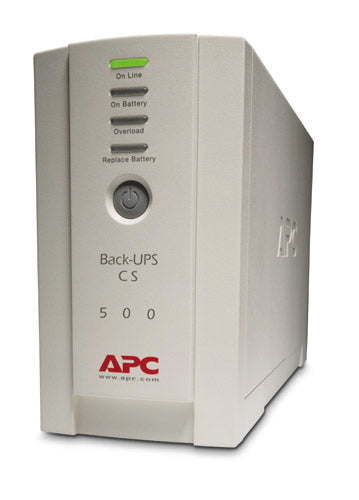

APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery

Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery

Description

This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.

Specifications

Power
Output power capacity	0.5 kVA
Output power	300 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Surge energy rating	310 J
Efficiency	99%
Output frequency regulation	47 - 63 Hz
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.83 m
USB port	Yes

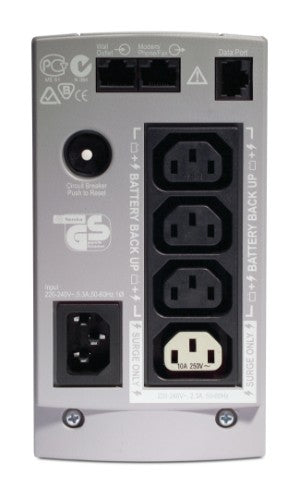

AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Number of output IEC jumpers	2
Performance
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Standby (Offline)
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Telephone
Waveform	Sine
Power protection features	Overload
Noise level	40 dB
LED indicators	Battery replacement
Audible alarm(s)	Yes
Features
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Standby (Offline)
Output power capacity	0.5 kVA
Output power	300 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Surge energy rating	310 J
Efficiency	99%
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Telephone
Waveform	Sine
Power protection features	Overload
Output frequency regulation	47 - 63 Hz
Noise level	40 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery life (max)	6 year(s)
Battery capacity	83 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h

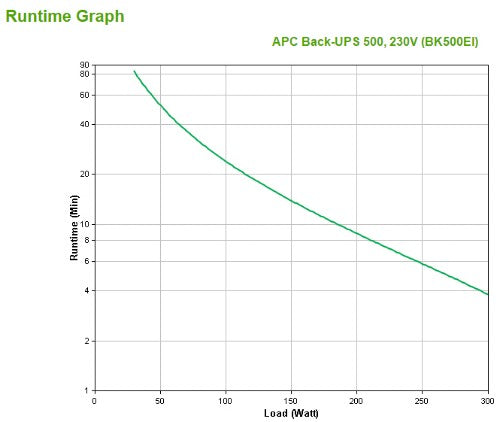

Typical backup time at half load	13.8 min
Typical backup time at full load	3.8 min
Battery voltage	12 V
Battery capacity	7 Ah
Automatic battery test	Yes
Design
Form factor	Tower
Product colour	Beige
Certification	C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH
Cable length	1.83 m
LED indicators	Battery replacement
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Sustainability certificates	ENERGY STAR, Green Premium
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Packaging data
Packaging content	Detachable 1.2m IEC power cord Detachable 1.8 m IEC power cord
Quick installation guide	Yes
Cables included	Phone (RJ-11), USB cable
Warranty card	Yes
Software CD	Yes

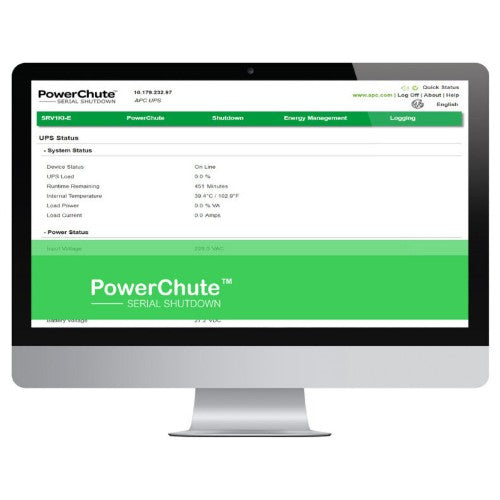

Bundled software	PowerChute Personal Edition
Package width	241 mm
Package depth	368 mm
Package height	178 mm
Package weight	7.05 kg
Certificates
Certification	C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH
Compliance certificates	RoHS
Packaging content
Quick installation guide	Yes
Cables included	Phone (RJ-11), USB cable
Warranty card	Yes
Software CD	Yes
Packaging content	Detachable 1.2m IEC power cord Detachable 1.8 m IEC power cord
Bundled software	PowerChute Personal Edition
Sustainability
Sustainability certificates	ENERGY STAR, Green Premium
Weight & dimensions
Width	91 mm
Depth	284 mm
Height	165 mm
Weight	6.32 kg
Package width	241 mm
Package depth	368 mm
Package height	178 mm
Package weight	7.05 kg
Logistics data
Products per master (outer) case	1 pc(s)
Products per pallet	48 pc(s)
Harmonized System (HS) code	85078000
Other features
Packaging content	Detachable 1.2m IEC power cord Detachable 1.8 m IEC power cord
Filtering	Yes
Nominal output voltage	230 V
Nominal input voltage	230 V
