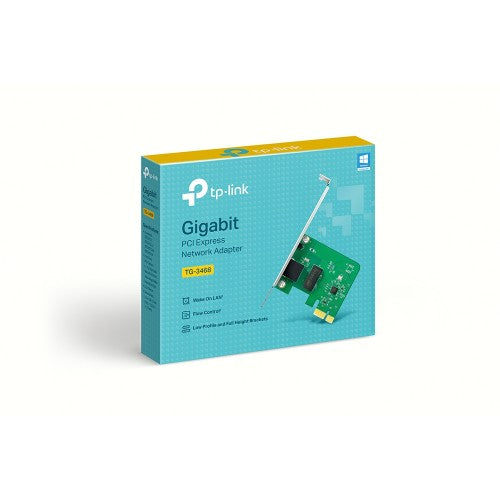

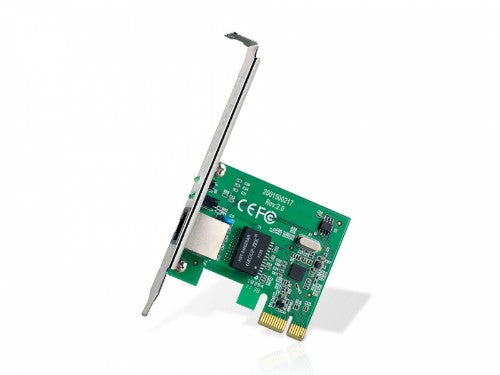

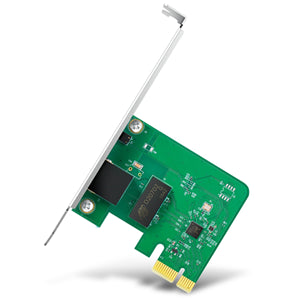

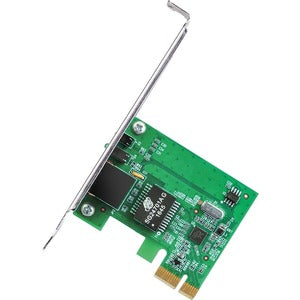

TP-Link TG-3468 network card Internal Ethernet 2000 Mbit/s
Regular price
$22.00 AUD
Regular price
Sale price
$22.00 AUD
Unit price
per
Use the contact form below to check availability.
Gigabit PCI Express Network Adapter, 1 x RJ-45

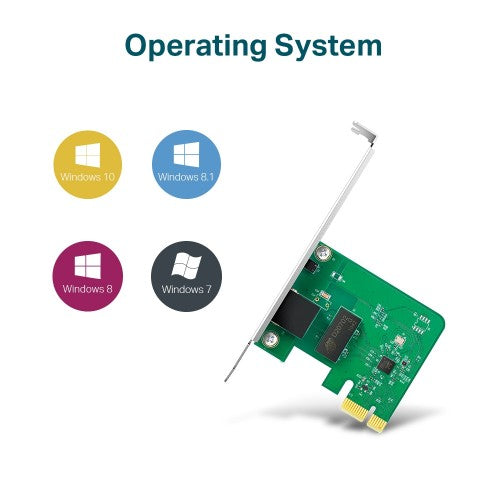

Supports operating systems include Windows 10/8.1/8/7/Vista/XP

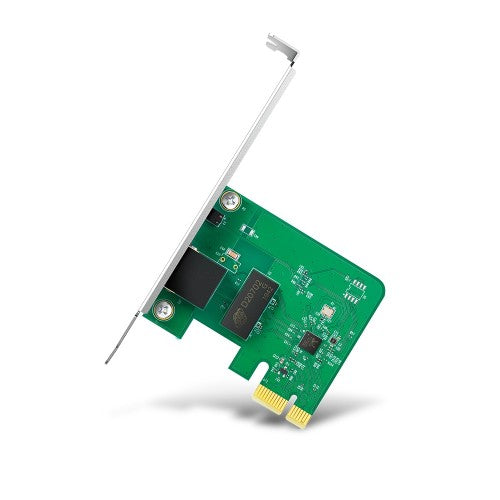

Low-Profile Bracket
In addition to standard bracket, low-profile bracket is also provided for mini tower computer case
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management
Key Features
- 10/100/1000Mbps PCIe Adapter
- 32-bit PCIe interface, saving the finite chassis space
- Wake-on-LAN, convenient to manage over LAN
Description
Operating SystemSupports operating systems include Windows 10/8.1/8/7/Vista/XP
Low-Profile Bracket
In addition to standard bracket, low-profile bracket is also provided for mini tower computer case
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Bandwidth | |
| Maximum data transfer rate | 2000 Mbit/s |
| Full duplex | Yes |
| Antenna | |
| Quality of Service (QoS) support | Yes |
| Network | |
| VLAN tagging | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Maximum data transfer rate | 2000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum operating distance | 100 m |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Design | |
| Internal | Yes |
| Product colour | Green, Grey |
| Certification | FCC, BSMI, VCCI |
| LED indicators | Status |
| Component for | PC |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 78.5 mm |
| Depth | 120.8 mm |
| Height | 21.5 mm |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Performance | |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Auto-negotiation | Yes |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Sustainability compliance | Yes |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RoHS |
| Certificates | |
| Certification | FCC, BSMI, VCCI |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Flow control support | Yes |
| Harmonized System (HS) code | 85176990 |
