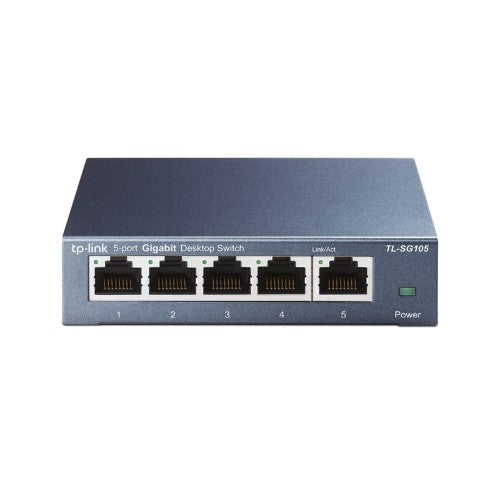

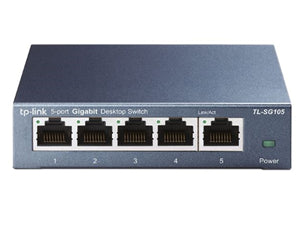

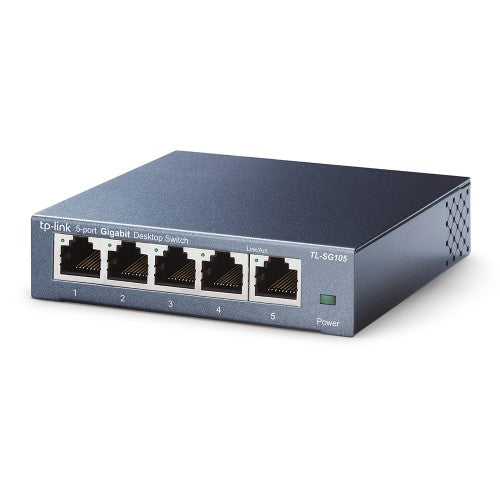

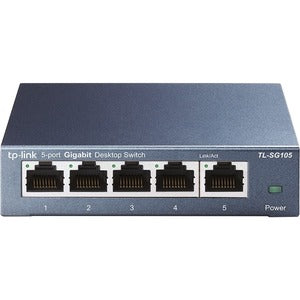

TP-Link TL-SG105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

5-Port 10/100/1000Mbps Desktop Switch

Key Features

• 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS and IGMP Snooping function
• Plug and play, no configuration

Description

What This Product Does

The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

Specifications

Management features
Switch layer	L2
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	16000
MAC address table	2048 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	1 MB
Forwarding rate	7.4 Mpps
Security
IGMP snooping	Yes
Multicast features
Multicast support	Yes
Design
Wall mountable	Yes
Rack mounting	No
Product colour	Black
LED indicators	Yes
Housing material	Steel
Certification	CE, FCC, RoHS
Power
Power consumption (max)	2.3 W
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Input current	0.6 A
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	7.83 BTU/h
Weight & dimensions
Width	100 mm
Depth	98 mm
Height	25 mm
Packaging content
User guide	Yes
Cables included	AC
Packaging data
Package type	Box
User guide	Yes
Cables included	AC
Performance
Packet buffer memory	1 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
