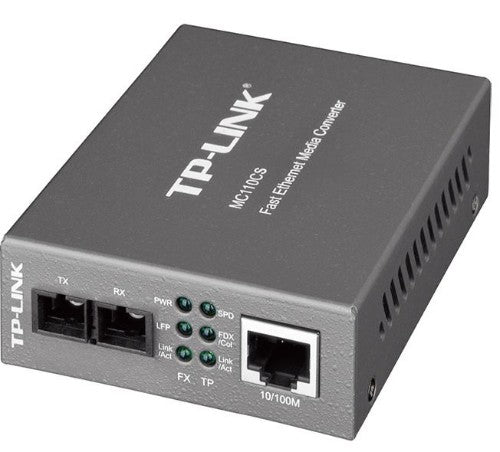

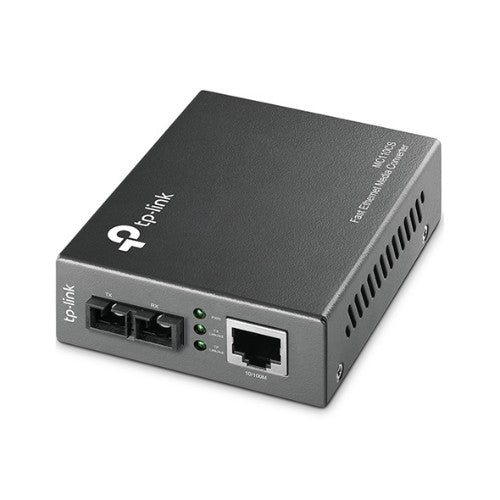

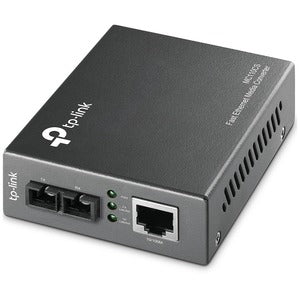

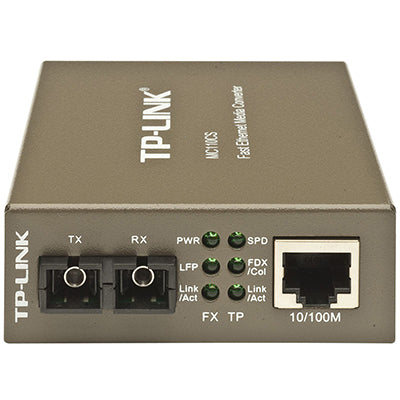

TP-Link MC110CS network media converter 100 Mbit/s 1310 nm Single-mode Black

10/100Mbps, Single-Mode, 1310 nm, 12500 m

Key Features

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Extends fiber distance up to 12.5 miles (20km)

Description

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.5 miles (20km).

Specifications

Network
Cable types supported	Cat3, Cat4, Cat5
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-T
Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100 Mbit/s
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Fiber optic connector	SC
Performance
Wavelength	1310 nm
Maximum transfer distance	12500 m
Fiber mode structure	Single-mode
Features
Internal	No
LED indicators	Yes
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Power
Power consumption (max)	2.4 W
Weight & dimensions
Width	95 mm
Depth	73 mm
Height	27 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Design
Internal	No
LED indicators	Yes
Product colour	Black
Certificates
Compliance certificates	RoHS
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85176990
