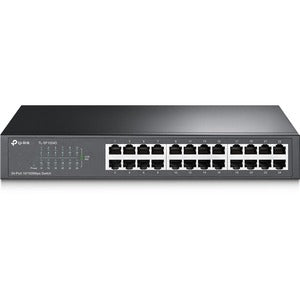

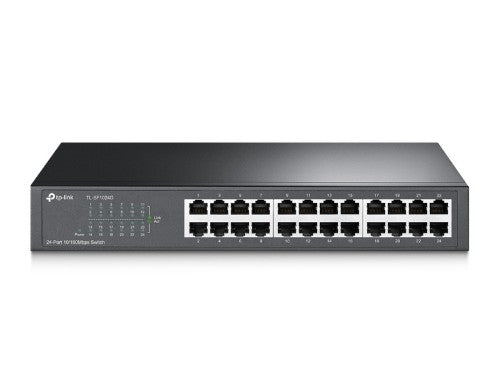

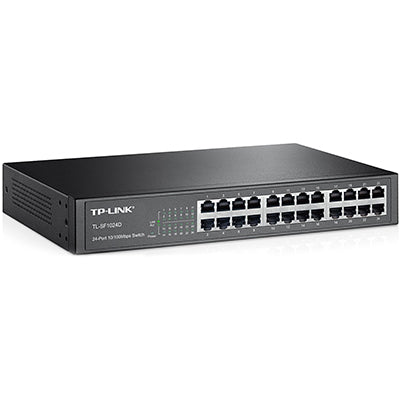

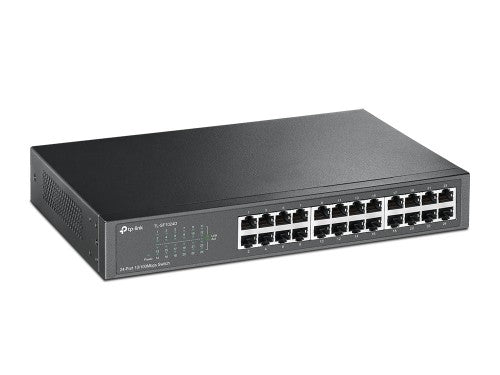

TP-Link TL-SF1024D network switch Unmanaged Fast Ethernet (10/100) Grey

24-Port 10/100Mbps, Desktop, Rackmount Switch, 4.8 Gbps, Black

Key Features

• 24 10/100M RJ45 ports
• Green Ethernet technology saves power consumption
• Supports MAC address self-learning and auto MDI/MDIX
• Standard 13-inch steel case

Description

What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save the power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

- Innovative energy-efficient technology saves power up to 75%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 4.8 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	24

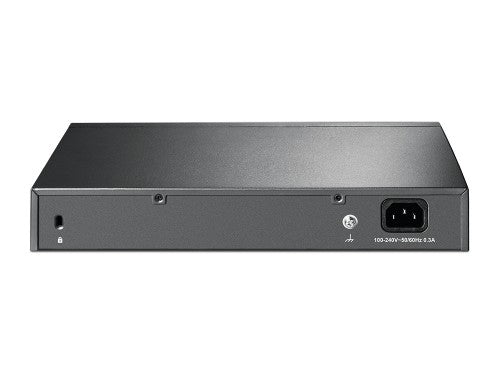

Power connector	AC-in jack
Copper ethernet cabling technology	10GBASE-T, 100BASE-TX
Network
Cable types supported	Cat3, Cat5e, Cat4, Cat5
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10GBASE-T, 100BASE-TX
Ethernet LAN data rates	10,100 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
MAC address table	8000 entries
Switching capacity	4.8 Gbit/s
Throughput	3.57 Mpps
Store-and-forward	Yes
Packet buffer memory	2 MB
Forwarding rate	3.57 Mpps
Protocols
Supported network protocols	CSMA/CD, TCP/IP
Design
Rack mounting	Yes
Stackable	No
Product colour	Grey
LED indicators	Yes
Housing material	Metal
Performance
Fanless	Yes
Stackable	No
Packet buffer memory	2 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	3.53 W
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	10.88 BTU/h
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Packaging data
Package type	Box
Package width	250 mm
Package depth	400 mm
Package height	80 mm
Package weight	2 kg
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Sustainability
Sustainability compliance	Yes
Technical details
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Other features
Ethernet LAN data rates	10,100 Mbit/s
Logistics data
Harmonized System (HS) code	85176990
