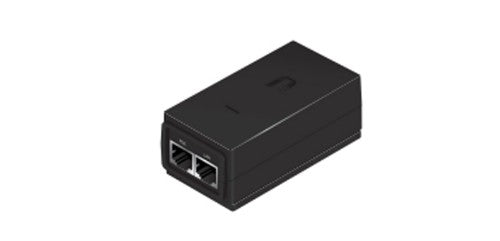

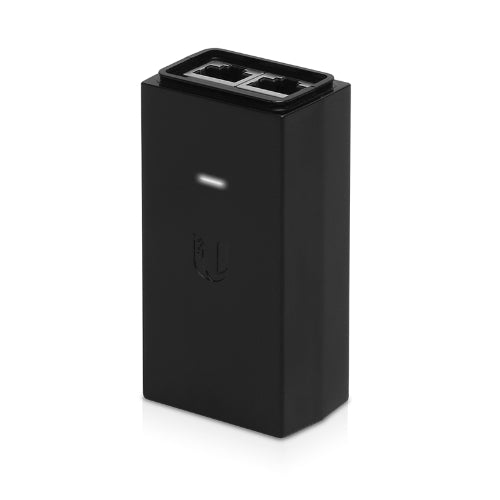

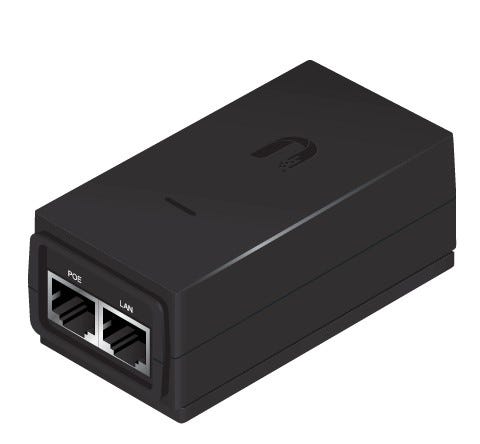

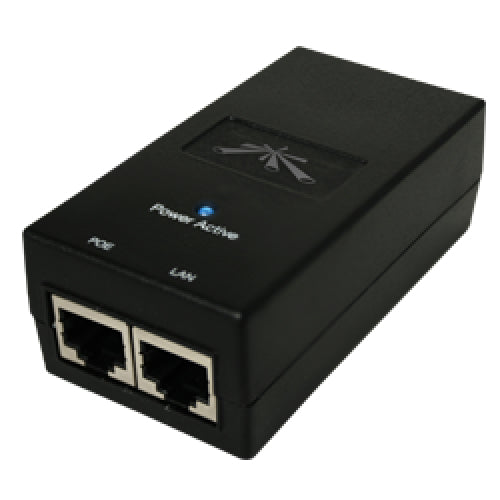

Ubiquiti POE-24-12W-G PoE adapter 24 V

24VDC @ 0.5A, RJ-45

Description

Device Protection

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Seamless airGateway Compatibility

The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway to bridge airMAX connections to Wi-Fi at customer locations.

Specifications

Network
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	24 V
Features
Certification	IEC 60950-1:2005+A1 UL60950‐1 EN55022:2010, EN55024:2010 FCC Class B
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Power over Ethernet (PoE) voltage	24 V
Input voltage	90 - 260 V
Input frequency	47 - 63 Hz
Technical details
Power over Ethernet (PoE)	Yes
Input voltage	90 - 260 V
Input frequency	47 - 63 Hz
Harmonized System (HS) code	85044095
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 95%
Weight & dimensions
Weight	99.4 g
Dimensions (WxDxH)	84 x 87 x 29.2 mm
Certificates
Certification	IEC 60950-1:2005+A1 UL60950‐1 EN55022:2010, EN55024:2010 FCC Class B
Logistics data
Harmonized System (HS) code	85044095
