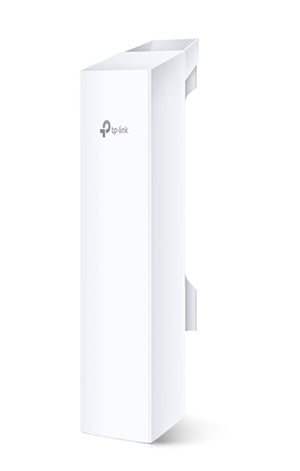

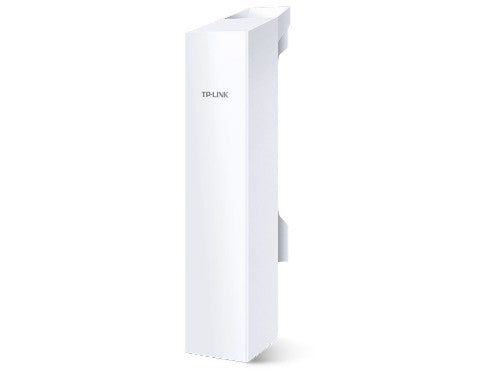

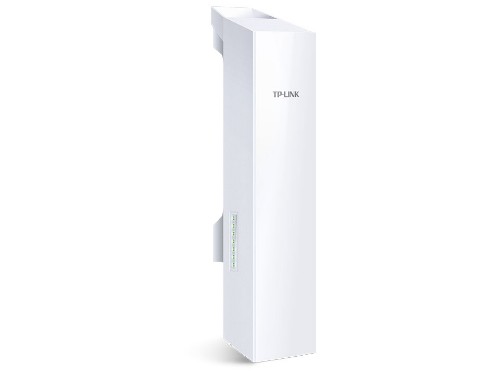

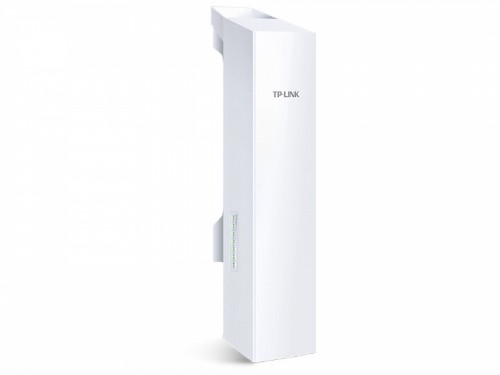

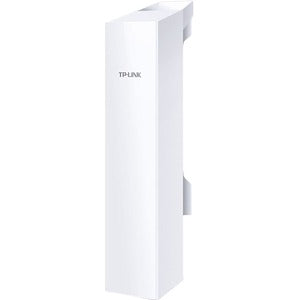

TP-Link CPE220 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

2.4GHz, 300Mbps, 12dBi, Outdoor, CPE, 64MB DDR2 RAM, 8MB eMMC, 802.11b/g/n, White

Description

TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference

13km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.

TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System

CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS

User-friendly web-based management system allows professionals to do more specific configurations.

Specifications

Performance
2.4 GHz	Yes
5 GHz	No
Automatic channel selection	Yes
Auto Wireless Distribution System (WDS)	Yes
RTS/CTS threshold	Yes
IGMP snooping	Yes
Maximum data transfer rate	300 Mbit/s
Bandwidth	2.4 GHz
Wi-Fi data rate (max)	300 Mbit/s
Frequency band	2.4 - 2.483 GHz
Web-based management	Yes
VLAN support	Yes
Universal Plug and Play (UPnP)	Yes
Reset button	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management platform	Pharos Control
Channels quantity	5 channels
Channel bandwidth	40 MHz
Certification	- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Internal memory	64 MB
Flash memory	8 MB
Built-in processor	Yes
Features
2.4 GHz	Yes
5 GHz	No
Automatic channel selection	Yes
RTS/CTS threshold	Yes
Maximum data transfer rate	300 Mbit/s
Bandwidth	2.4 GHz
Wi-Fi data rate (max)	300 Mbit/s
Frequency band	2.4 - 2.483 GHz
VLAN support	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channels quantity	5 channels
Channel bandwidth	40 MHz
Internal memory	64 MB
Flash memory	8 MB
Built-in processor	Yes
Security
Number of SSID supported	1
Auto Wireless Distribution System (WDS)	Yes
IGMP snooping	Yes
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
IP address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast on/off
Protocols
Management protocols	TDMA
Universal Plug and Play (UPnP)	Yes
DHCP client	Yes
Management features
Web-based management	Yes
Management platform	Pharos Control
Ports & interfaces
Internal RJ-45 ports quantity	1
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power consumption (max)	10.8 W
Output voltage	24 V
Output current	1 A
Input current	0.8 A
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Design
International Protection (IP) code	IPX5
Internal	No
Reset button	Yes
LED indicators	Power
Product colour	White
Certification	- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	12 dBi
Antenna features	Integrated antenna
Certificates
Certification	- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Weight & dimensions
Width	110 mm
Depth	57 mm
Height	33.5 mm
Packaging data
Quick start guide	Yes
Mounting kit	Yes
AC adapter included	Yes
Packaging content
Quick start guide	Yes
Mounting kit	Yes
AC adapter included	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
