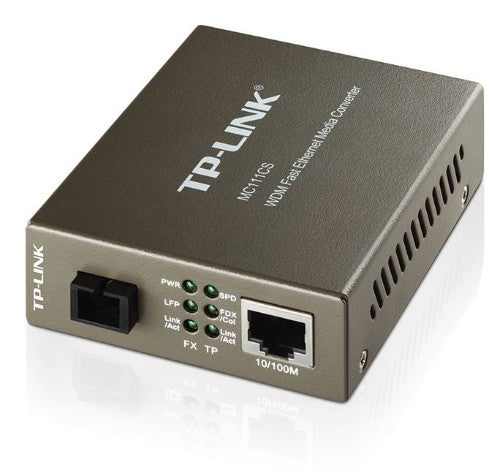

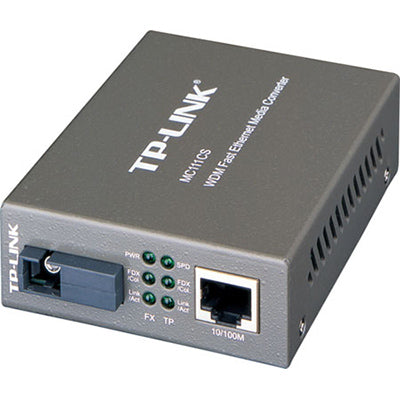

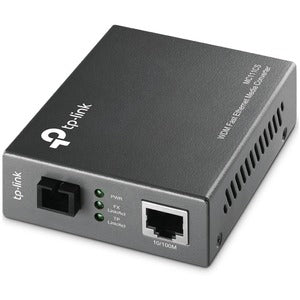

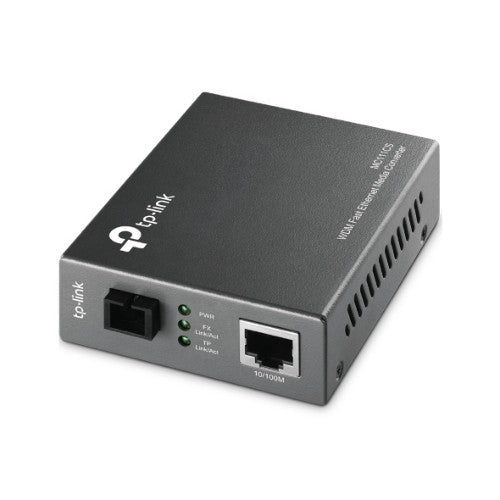

TP-Link MC111CS network media converter 100 Mbit/s Single-mode Black

10/100Mbps, WDM, Single-Mode, 1310/1550 nm, 20000 m

Key Features

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Work with MC112CS WDM single fiber media converter
• Extends fiber distance up to 20km (12.5 miles)

Description

The MC111CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will half cable cost for you. Designed with IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers(12.5 miles).

Specifications

Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Fiber optic connector	SC
Performance
Wavelength-division multiplexing (WDM)	Yes
Maximum transfer distance	20000 m
Fiber mode structure	Single-mode
Features
Internal	No
LED indicators	Yes
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Power
Power consumption (max)	2.49 W
Weight & dimensions
Width	95 mm
Depth	73 mm
Height	27 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Manual	Yes
Design
Internal	No
LED indicators	Yes
Product colour	Black
Certificates
Compliance certificates	RoHS
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85176990
