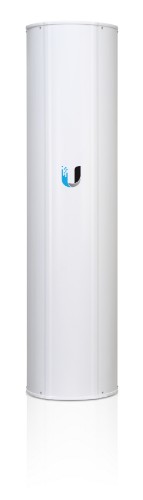

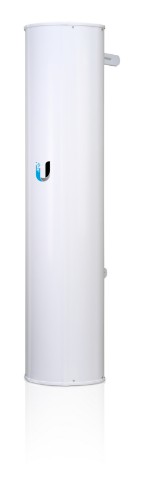

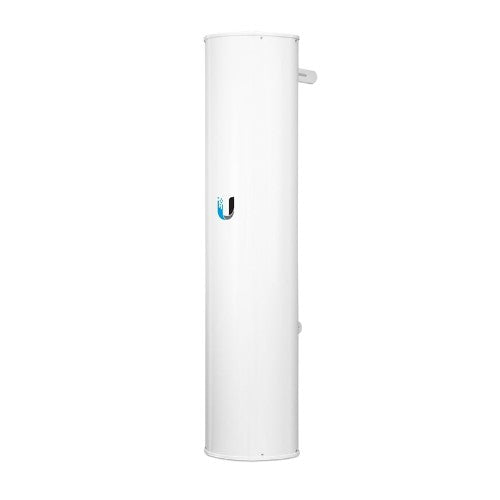

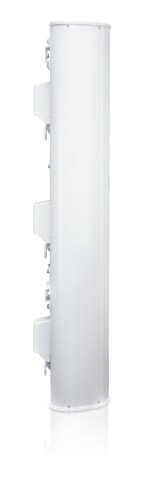

Ubiquiti AP-5AC-90-HD network antenna Sector antenna RP-SMA 22 dBi

22dBi, 5.15 - 5.85GHz, 30°, Sector, Dual-Linear, 200km/h, RP-SMA Connectors, 13.1kg

Description

5 GHz, 3x30° HD Sector Antenna
The innovative airPrism® Antenna features significant advances in noise isolation and beam performance for co‑location deployments in a multipoint network.

3 x 30° Beamwidth Coverage

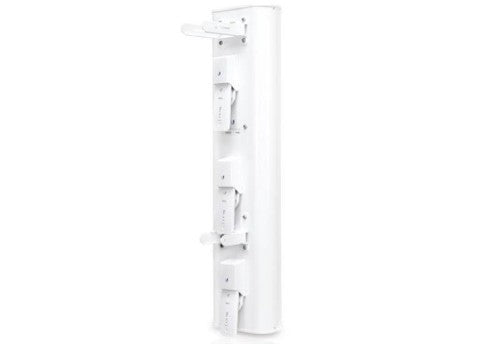

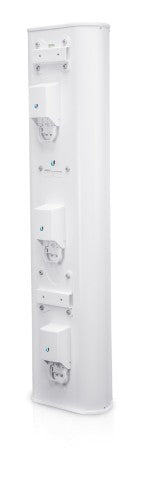

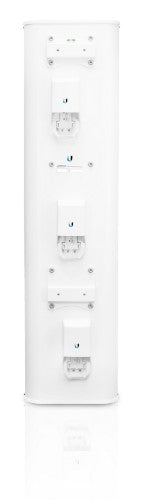

The three Rocket5ac Prism™ radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth.

Powerful Performance
Highly resistant to noise interference, the airPrism antenna provides superior beam performance in
high-density areas for high-capacity, multipoint networks.

Breakthrough Design
Mounted on a single airPrism antenna, three Rocket5ac Prism radios maximize throughput in an efficient
tower footprint, minimizing installation and tower costs.

Specifications

Performance
Antenna gain level (max)	22 dBi
Frequency band	5.15 - 5.85 GHz
Vertical beam width	30°
Horizontal beam width	30°
Features
Survival wind speed	200 km/h
Isolation	30 dB
Antenna gain level (max)	22 dBi
Frequency band	5.15 - 5.85 GHz
Antenna type	Sector antenna
Voltage Standing Wave Ratio (VSWR)	1.75:1
Vertical beam width	30°
Purpose	Outdoor
Polarization	Dual polarization
Horizontal beam width	30°
Antenna connector type	RP-SMA
Product colour	White
Certification	CE, FCC, IC
Technical details
Harmonized System (HS) code	85177100
Weight & dimensions
Weight	13.1 kg
Width	322.6 mm
Depth	201.5 mm
Height	1300 mm
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
