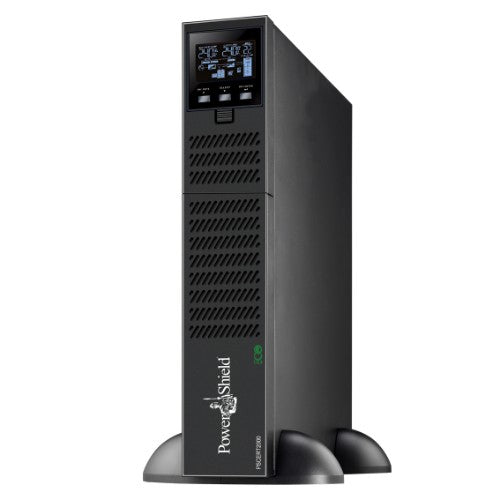

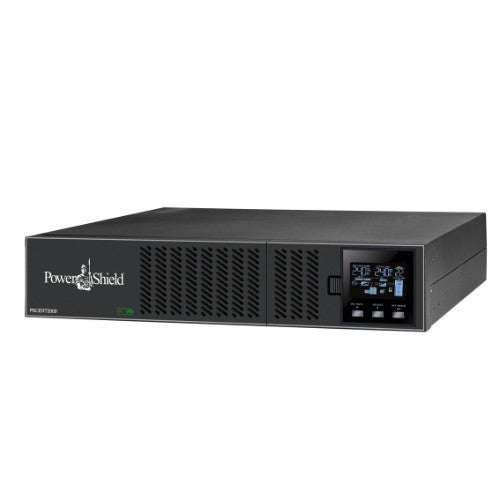

PowerShield Centurion RT 2000VA uninterruptible power supply (UPS) Line-Interactive 2 kVA 1800 W 8 AC outlet(s)

2000 VA, 1800 W, Rack / Tower, 8 Outlets, 12V 9AH, 2U, 26500 g

Key Features

• True double-conversion
• Output power factor 0.9
• User-friendly and electronic easy-shift LCD display
• Rack or Tower design
• Advanced ECO mode for energy saving
• Generator compatible
• Programmable power management outlets
• Emergency Power Off function (EPO)
• Hot swappable battery design
• Ideal for medium density power protection

Description

As a true online double conversion UPS the Centurion RT is our highest single phase power density UPS. Boasting an output power factor of 0.9, this will fully protect mission critical devices as it can support larger loads than UPS products of an equal VA rating.
The Centurion RT has an energy saving Advanced ECO mode, which allows the unit to operate at very high efficiency, up to 98%. When the utility mains input voltage is within the ECO range the UPS saves energy by passing the mains supply directly through to the load, while the inverter continues to operate in a passive mode.

Specifications

Power
Output power capacity	2 kVA
Output power	1800 W
Surge energy rating	984 J
Efficiency	87%
Emergency Power Off (EPO)	Yes
Output voltage regulation	1%
Output power factor	0.9
Crest factor	3:1
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	4 ms
Surge protection	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Noise level	50 dB
Features
UPS topology	Line-Interactive
Output power capacity	2 kVA
Number of output phases	1
Number of input phases	1
Response time	4 ms
Output power	1800 W
Surge energy rating	984 J
Efficiency	87%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Output voltage regulation	1%
Output power factor	0.9
Crest factor	3:1
Noise level	50 dB
Input frequency	50/60 Hz

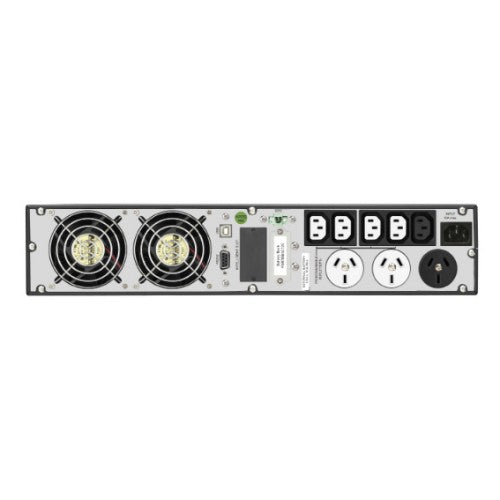

Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port type	USB Type-B
Battery
Number of batteries supported	6
Battery recharge time	4 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU
Cooling type	Active
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Compliance certificates	RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Width	438 mm
Depth	600 mm
Height	88 mm
Weight	26.5 kg
Certificates
Certification	EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU
