NETGEAR 10GBASE-LR Lite SFP+ network transceiver module Fiber optic 10000 Mbit/s SFP+

10GBASE-LR Lite SFP+ Transceiver

Description

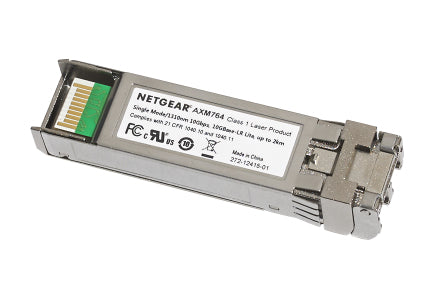

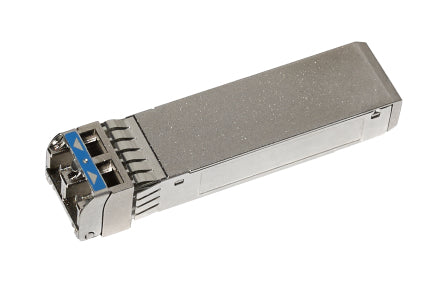

AXM764 is NETGEAR 10GBASE-LR “Lite” SFP+ Transceiver, a new class of SMF 10G transmitter with LC duplex connector. While not a standard yet, 10GBASE-LR LITE has a specified reach of 2 km (1.24 mile) over standard 9/125µm single mode fiber. 10GBASE-LR LITE isn’t a replacement for standard 10GBASE-LR optics: it is just relevant alternative for “shorter” reach SMF applications.

Specifications

Network
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Cabling technology	10GBASE-LR
Performance
Hot-Plug support	Yes
Compatible products	NETGEAR M5300, M6100, M7100, M7300
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Auto MDI/MDI-X	Yes
Maximum transfer distance	2000 m
Fiber cable diameters supported (core/cladding)	9/125 µm
Cabling technology	10GBASE-LR
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LR
Harmonized System (HS) code	85369010
Features
Hot-Plug support	Yes
Compatible products	NETGEAR M5300, M6100, M7100, M7300
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%
Technical details
Harmonized System (HS) code	85369010
Logistics data
Harmonized System (HS) code	85369010
Quantity per pack	1 pc(s)
