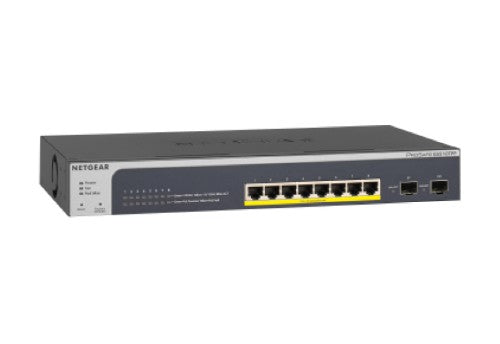

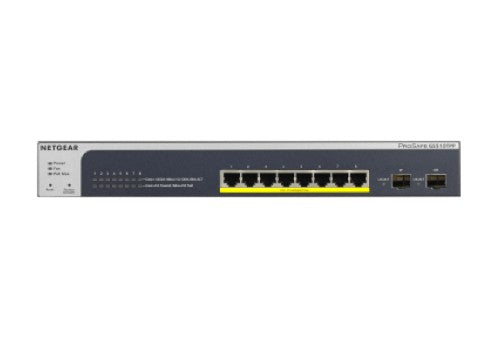

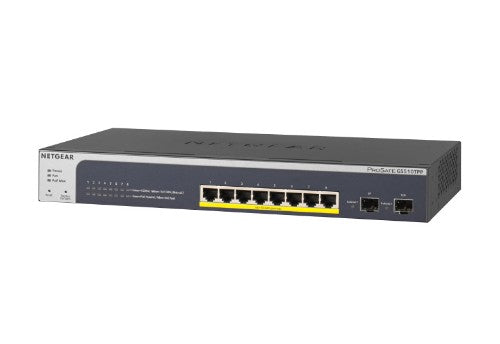

NETGEAR GS510TPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

8x 10/100/1000BASE-T RJ-45, 2x 100/1000X Fiber SFP, 8 PoE+ (190W), Desktop

Description

Smart Switch Series (GS510TPP)
8-Port Gigabit Ethernet High-Power PoE+ Smart Switch with 2 Dedicated SFP Ports (190W)
NETGEAR Smart Switches offer powerful L2 and L2+/Layer 3 Lite features, better PoE functionality, and enhanced performance and usability.

Smart Managed Switches just got more powerful and flexible
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains.

The GS510TLP 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports joins the NETGEAR Standalone Smart Managed Switches family, adding full 8 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 75W. Fan-less, the GS510TLP supports perfectly silent desktop operation or rack mounting.

Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can require GS510TPP 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports: 190W PoE budget offers more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: unlike other high power PoE switches on the market, the GS510TPP supports quiet desktop operation or rack mounting with a maximum of 32dB at full power and 25°C (77°F) ambient.

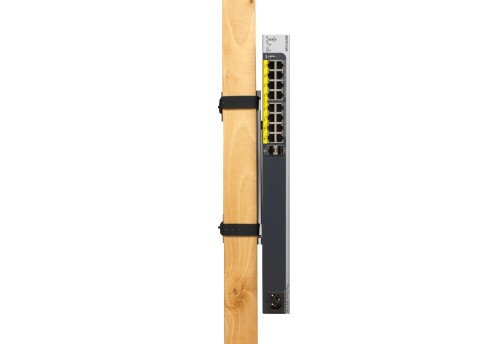

The GS418TPP Easy Mount 16-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports is future-proof with 240W of PoE budget and ideal for “Virtually Anywhere deployments. Slim design (3.94 inches, 10 cm deep) and mounting accessories allow for access point, IP camera or VoIP endpoint placement optimization and cabling efficiency even outside the rack. The GS418TPP supports Easy Mount quiet operation or rack mounting with a maximum of 33dB at full power and 25°C (77°F) ambient

Specifications

Management features
Multicast support	Yes
Switch layer	L2/L3/L4
Switch type	Managed
Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	2
Console port	RJ-45
Power connector	DC-in jack
Virtual LAN features
Number of VLANs	256
Data transmission
Number of VLANs	256
Number of multicast groups filtered	512
MAC address table	16000 entries
Switching capacity	20 Gbit/s
Latency (1 Gbps)	3.313 µs
Packet buffer memory	1.5 MB
Performance
Packet buffer memory	1.5 MB
Processor frequency	400 MHz
Built-in processor	Yes
Power
Power connector	DC-in jack
Network
Number of VLANs	256
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
10G support	No
Security
Access Control List (ACL) rules	100
Access Control List (ACL)	Yes
Multicast features
Number of multicast groups filtered	512
Multicast support	Yes
Design
Product colour	Black
Certification	CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	190 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Weight & dimensions
Width	328 mm
Depth	169 mm
Height	43 mm
Weight	1.83 kg
Packaging data
Rack mount kit	Yes
User guide	Yes
Quick start guide	Yes
Manual	Yes
Packaging content
Rack mount kit	Yes
User guide	Yes
Quick start guide	Yes
Manual	Yes
