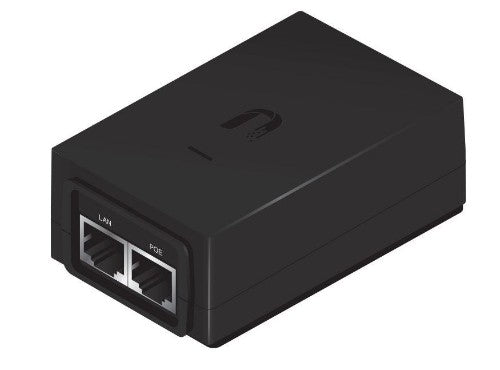

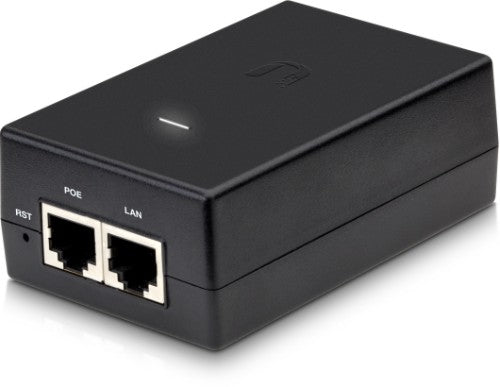

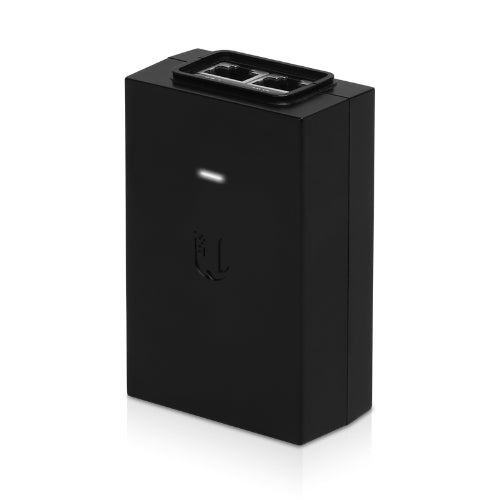

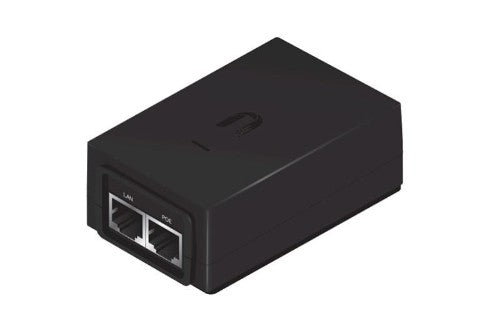

Ubiquiti POE-24-24W-G PoE adapter Gigabit Ethernet 24 V

Power over Ethernet Adapters, 24VDC, 1.0A, Gigabit LAN Port, Black

Description

PoE Adapters power Ubiquiti®products that support passive PoE.

Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Convenient Wall-Mounting
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

Seamless airGateway Compatibility
The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™to bridge airMAX®connections to Wi-Fi at customer locations.

Specifications

Network
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010
Power over Ethernet (PoE) voltage	24 V
Features
Surge protection	Yes
Product colour	Black
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
Power
Output current	1 A
Power over Ethernet (PoE) voltage	24 V
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.4 - 0.6 A
Certificates
Compliance industry standards	IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	35 - 95%
Weight & dimensions
Weight	158.5 g
Width	57 mm
Depth	88 mm
Height	33 mm
Technical details
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	32 - 104 °F
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.4 - 0.6 A
Ethernet LAN data rates	1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010
Harmonized System (HS) code	85044095
Logistics data
Harmonized System (HS) code	85044095
