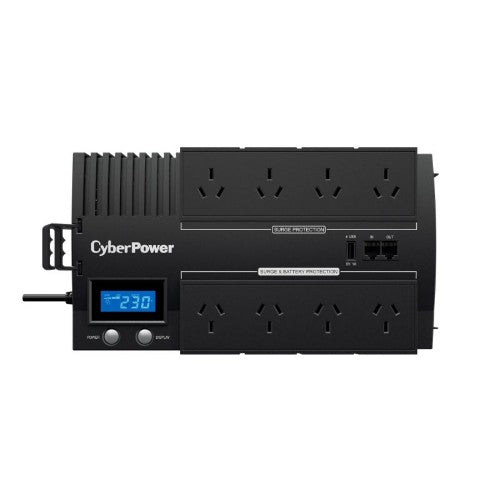

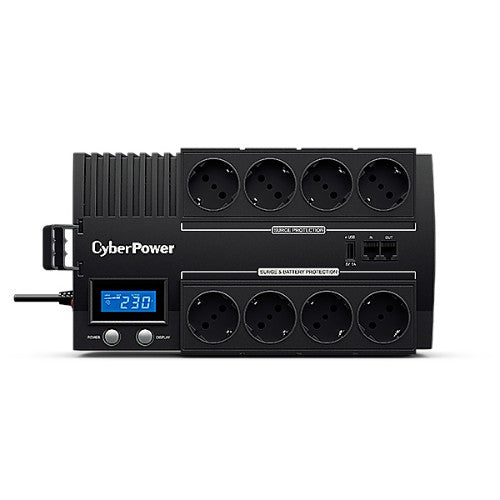

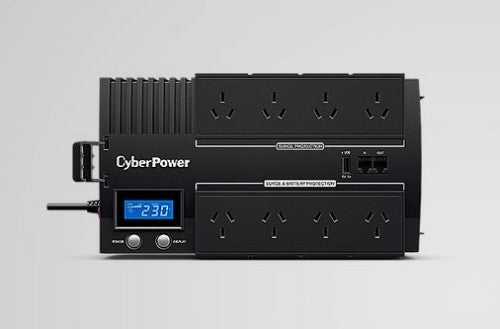

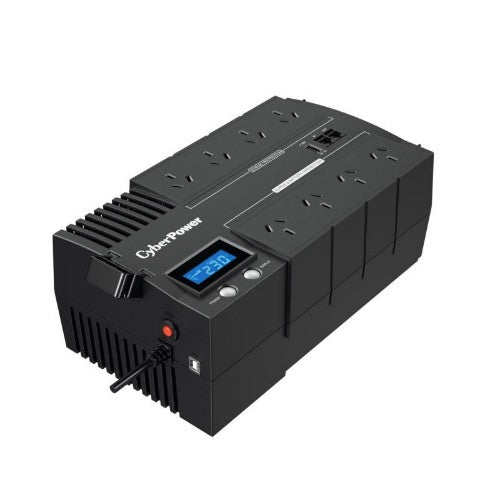

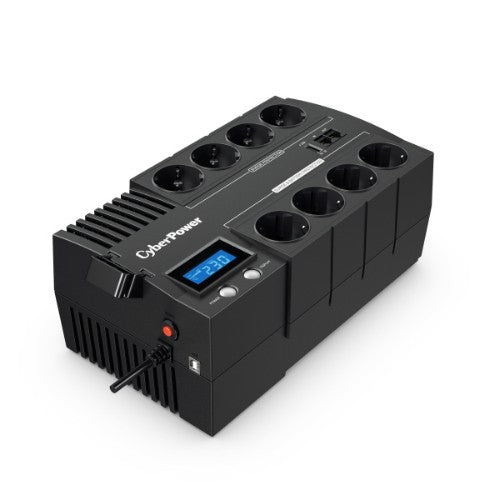

CyberPower BR1200ELCD uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 720 W 8 AC outlet(s)

Backup UPS for Computer and Peripheral

Key Features

• Line-interactive UPS Topology
• Simulated Sine Wave Output
• USB Charging Port(s)
• Phone/Fax/Modem/DSL/Network Protection
• PowerPanel Management Software
• Energy Saving Technology
• Automatic Voltage Regulation (AVR)
• Surge and Spike Protection
• LCD Status Display
• Wall Mount Installation

Description

The BRICs LCD Series UPS with LCD can supply clean and stable power to protect your equipment. The include PowerPanel Personal Edition management software showcases the feature rich abilities of this UPS such as input /output power voltage readings, self-diagnostics, scheduled shutdown, and approximate battery back-up time reading. These UPS units can be placed in either a horizontal or wallmount postition to mark the most of your space. With Energy-Saving Technology, BRICs LCD Series UPS can save upto 75% of electricity and save your electricity bill. You can easy charge AA/AAA battery Via USB charge with battery charger.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.2 kVA
Output power	720 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	150 J
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.5 m
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	Type F
USB 2.0 ports quantity	1
Modem (RJ-11) ports	2
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-A
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Number of phases	1
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
Waveform	Sine
Power protection features	Short circuit
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Battery level, Power, Status
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.2 kVA
Response time	4 ms
Output power	720 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	150 J
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
Waveform	Sine
Power protection features	Short circuit
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Heat dissipation	137 BTU/h
Number of phases	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	2
Battery recharge time	8 h
Typical backup time at half load	9 min
Typical backup time at full load	2 min
Battery voltage	230 V
Replacement battery cartridge	RBP0063
Design
Form factor	Desktop
Product colour	Black
Cable length	1.5 m
LED indicators	Battery level, Power, Status
Housing material	Plastic
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Harmonized System (HS) code	8504408590
Compliance certificates	CE, EAC, RoHS
Certificates
Compliance certificates	CE, EAC, RoHS
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	166 mm
Depth	288 mm
Height	118 mm
Weight	8.2 kg
Package width	158 mm
Package depth	325 mm
Package height	230 mm
Package weight	8.43 kg
Packaging data
Package width	158 mm
Package depth	325 mm
Package height	230 mm
Package weight	8.43 kg
Logistics data
Harmonized System (HS) code	8504408590
Other features
Number of phases	1
