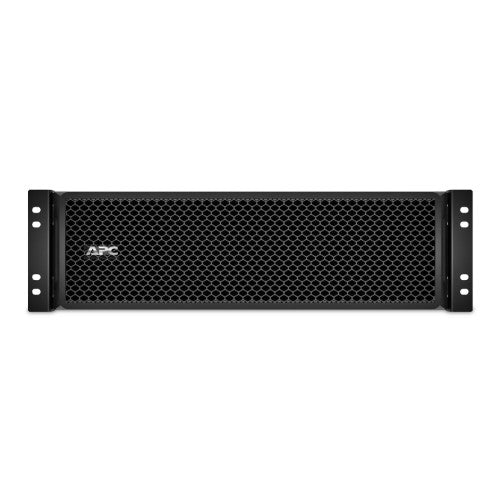

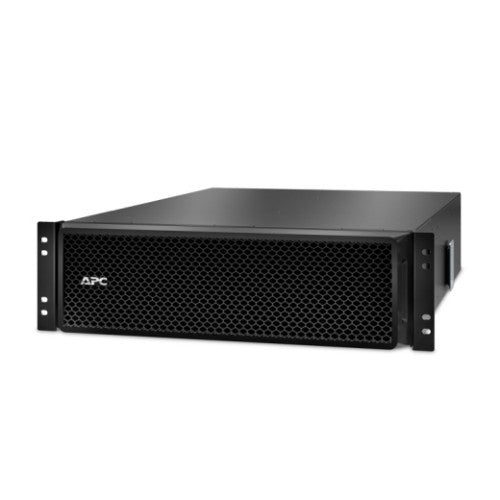

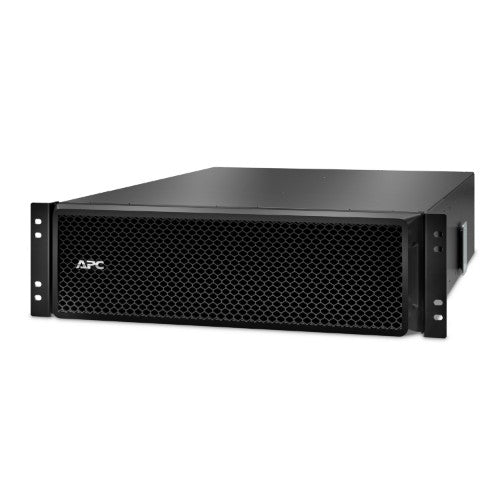

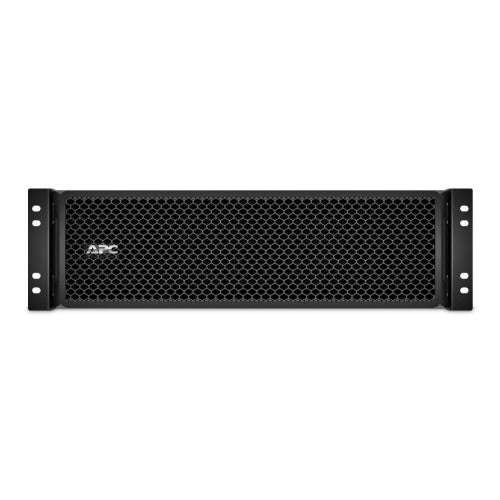

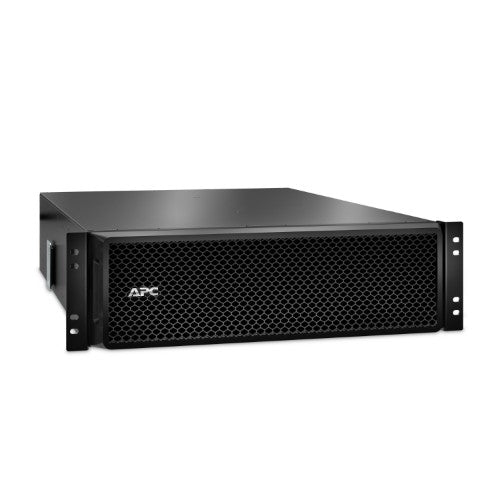

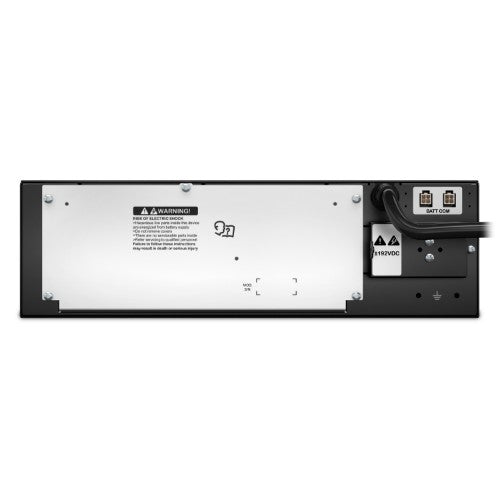

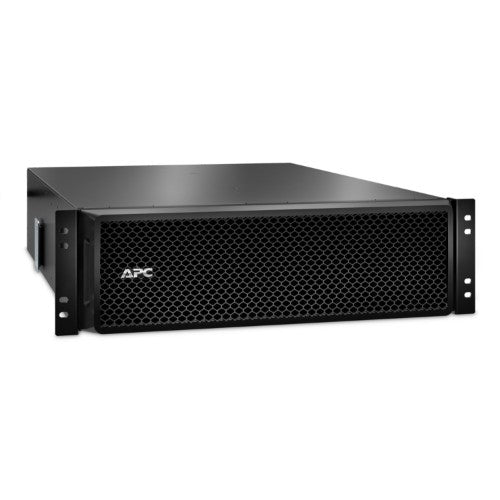

APC Smart-UPS SRT 192V 8 and 10kVA RM Battery Pack

Smart-UPS SRT 192V 8 and 10kVA RM Battery Pack

Key Features

• Extended-run battery systems provide flexible runtime to critical Smart-UPS applications
• Includes: Installation guide, Warranty card

Description

This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.

Specifications

Features
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	1920 VAh
Battery voltage	192 V
Certification	OSHPD REACH
Battery life	5 year(s)
Number of batteries included	1 pc(s)
Product colour	Black
Technical details
Harmonized System (HS) code	85044095
Total carbon footprint (kg of CO2e)	483.08
Compliance certificates	RoHS
Weight & dimensions
Weight	91 kg
Width	432 mm
Height	130 mm
Depth	682 mm
Packaging data
Package width	600 mm
Package height	420 mm
Package depth	1000 mm
Package weight	105.5 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Logistics data
Harmonized System (HS) code	85044095
