NETGEAR

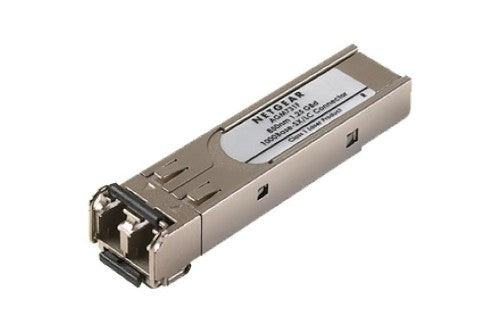

NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches
Regular price
$192.15 AUD
Regular price
Sale price
$192.15 AUD
Unit price
per
Use the contact form below to check availability.
LC, SFP, 1000Base-SX, 1000m, 850nm, 500 mW, RoHS
Key Features
- Gigabit Ethernet “short-reach” fiber connectivity
- LC duplex connector
- Fits into SFP interfaces of all Fully Managed Switches
- Fits into SFP interfaces of all Smart Switches
- Fits into SFP interfaces of JGS524F
- Drives Gigabit Ethernet up to 1,000 m distances with 50/125µm laser-optimized OM4 multimode fiber cables
- Drives Gigabit Ethernet up to 550 m distances with 50/125µm laser-optimized OM3 multimode fiber cables
- Drives Gigabit Ethernet up to 275 m distances with 62.5/125ìm OM1 multimode fiber cables
Description
The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.Specifications
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Performance | |
| Product colour | Silver |
| Housing material | Metal |
| Mean time between failures (MTBF) | 87658 h |
| SFP transceiver type | Fiber optic |
| Ethernet LAN | Yes |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 1000 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Duplex system | Full |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Fiber ethernet cabling technology | 1000BASE |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Housing material | Metal |
| Safety | UL 1950, CSA 22.2 No.60 950 |
| Mean time between failures (MTBF) | 87658 h |
| Power | |
| Input voltage | 3.3 V |
| Power consumption (typical) | 0.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Ethernet LAN | Yes |
| Harmonized System (HS) code | 85369010 |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 13.8 mm |
| Height | 8.5 mm |
| Certificates | |
| Safety | UL 1950, CSA 22.2 No.60 950 |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
