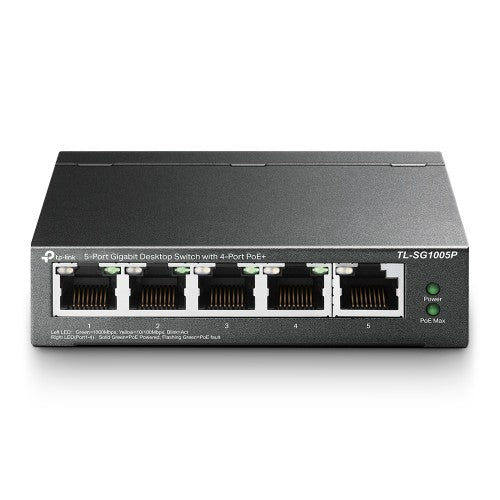

TP-Link TL-SG1005P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

5 10/100/1000Mbps RJ45 Ports

Key Features

• 5 10/100/1000Mbps RJ45 ports

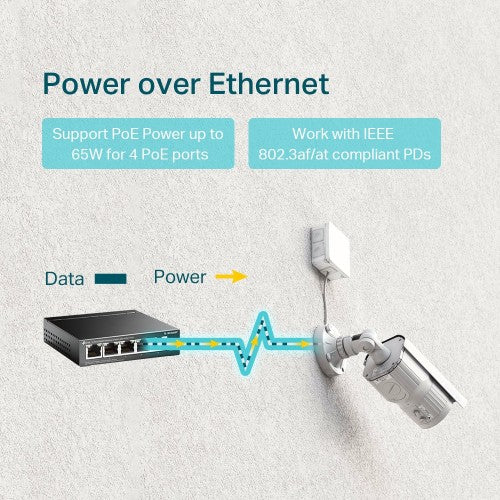

• With four PoE+ ports, transfers data and power on one single cable
• Working with IEEE 802.3af/at compliant PDs, expands home and office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30W for each PoE port

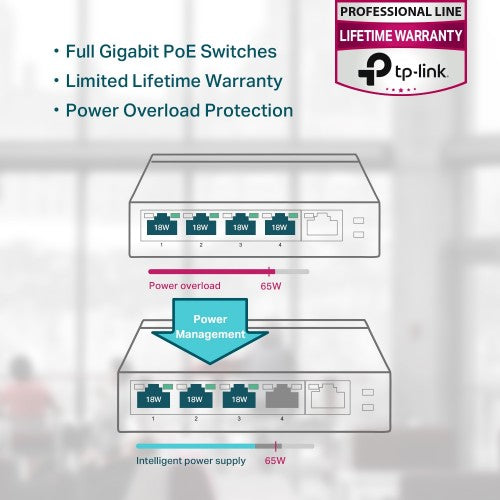

• Supports PoE Power up to 65W for all PoE ports

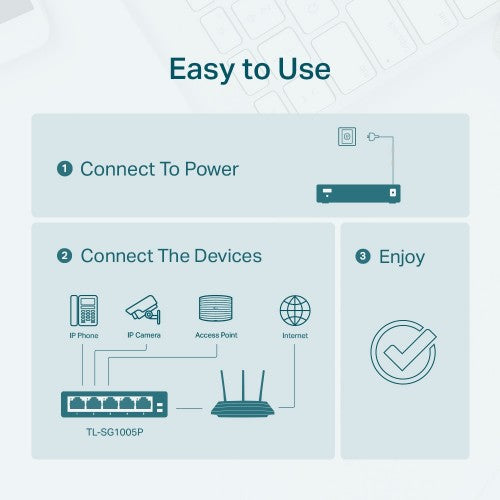

• Requires no configuration and installation

Description

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

5 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 15.4W for each PoE port
Supports PoE Power up to 56W for all PoE ports
Requires no configuration and installation

HARDWARE FEATURES
Interface • 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption • 4.29 W (220/50 Hz. no PD connected)
• 74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation • 14.63 BTU/h (no PD connected)
• 253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Security
IGMP snooping	Yes
Design
Rack mounting	No
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHS
Power
Power consumption (max)	63.31 W
Power supply included	Yes
AC input voltage	100 - 220 V
AC input frequency	50 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	56 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Packaging content
Quick start guide	Yes
Manual	Yes
Cables included	AC
Packaging data
Package type	Box
Quick start guide	Yes
Manual	Yes
Cables included	AC
Performance
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code	85176990
