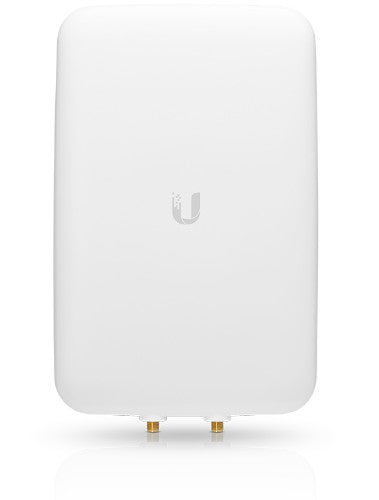

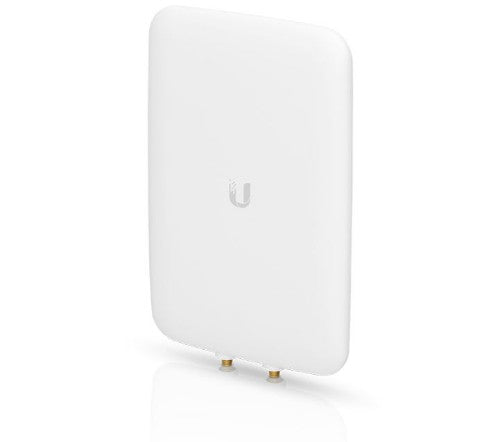

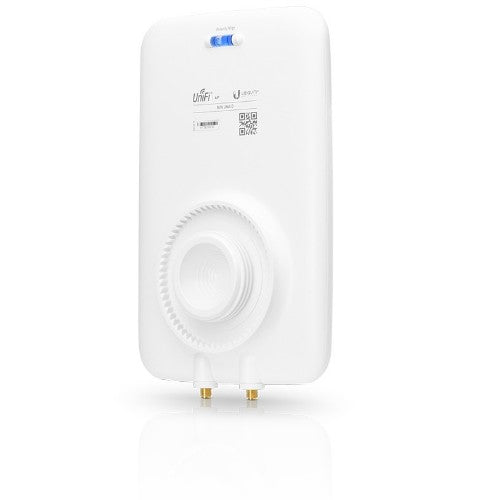

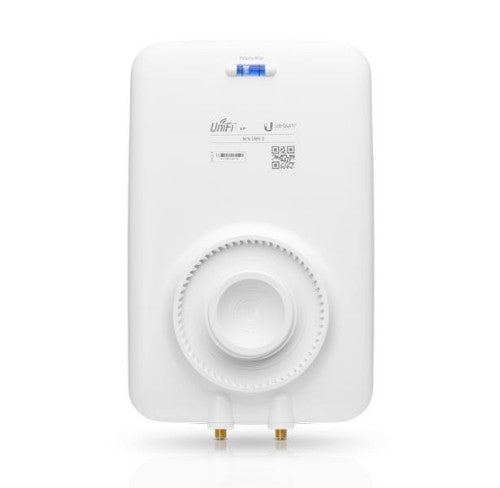

Ubiquiti UMA-D network antenna Directional antenna RP-SMA 15 dBi

Directional Dual-Band Antenna for UAP-AC-M, 802.11ac, 2.4/5GHz, 10/15dBi, 90°/45°, 480g

Description

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.

Antenna Features
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

Weather-Resistant Enclosure
Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

Versatile Mounting

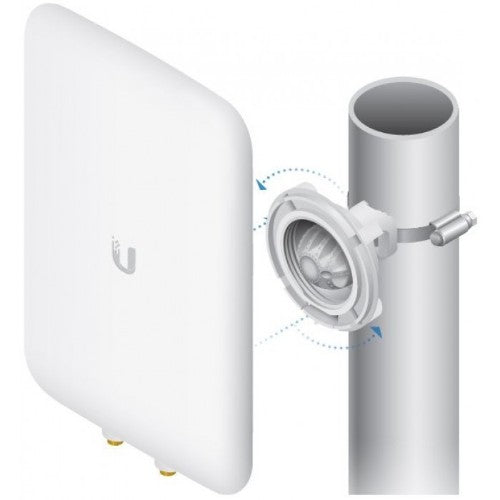

The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.

Compatibility
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

Specifications

Performance
Antenna gain level (max)	15 dBi
Networking standards	IEEE 802.11ac
Frequency band	2.4 - 2.5, 5.1 - 5.9 GHz
Vertical beam width (5 GHz)	45°
Vertical beam width (2.4 GHz)	90°
Horizontal beam width (5 GHz)	45°
Horizontal beam width (2.4 GHz)	90°
Antenna gain (5 GHz)	15 dBi
Antenna gain (2.4 GHz)	10 dBi
Features
Housing material	Plastic
Antenna gain level (max)	15 dBi
Networking standards	IEEE 802.11ac
Frequency band	2.4 - 2.5, 5.1 - 5.9 GHz
Antenna type	Directional antenna
Voltage Standing Wave Ratio (VSWR)	2:1
Vertical beam width (5 GHz)	45°
Vertical beam width (2.4 GHz)	90°
Purpose	Indoor & outdoor
Polarization	Dual polarization
Mounting	Wall/Pole
Horizontal beam width (5 GHz)	45°
Horizontal beam width (2.4 GHz)	90°
Antenna gain (5 GHz)	15 dBi
Antenna gain (2.4 GHz)	10 dBi
Antenna connector type	RP-SMA
Compatible products	UAP-AC-M
Product colour	White
Technical details
Harmonized System (HS) code	85177100
Weight & dimensions
Weight	480 g
Width	128 mm
Depth	32.5 mm
Height	201.3 mm
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
