Ubiquiti

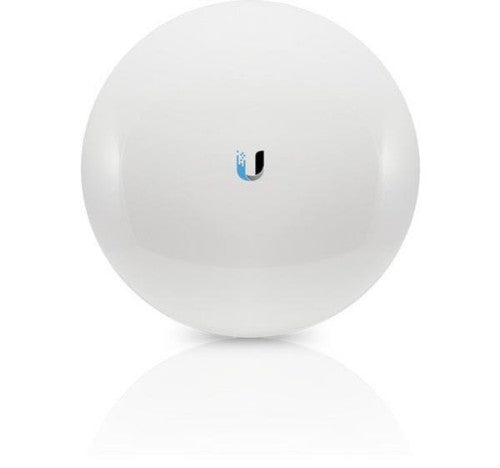

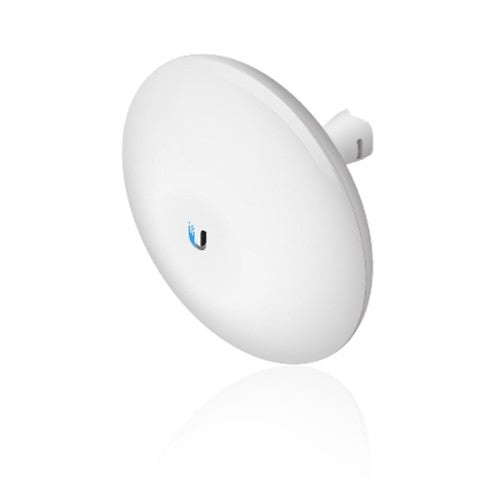

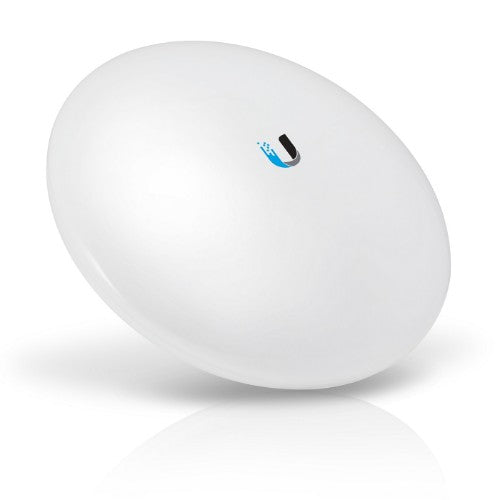

Ubiquiti NanoBeam 2AC White Power over Ethernet (PoE)
Regular price
$208.00 AUD
Regular price
Sale price
$208.00 AUD
Unit price
per
Use the contact form below to check availability.
330+ Mbps, 15+ km, 2.4GHz (2412 - 2472 MHz), 10/100/1000, PoE, 13dBi, airOS 8
Improved Noise Immunity
The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This
feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design
The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint.
Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.
Description
Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam® 2AC with dedicated Wi-Fi management.Improved Noise Immunity
The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This
feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design
The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint.
Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.
Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 - 2.472 GHz |
| Certification | RoHS, CE, FCC, IC |
| Operating system installed | AirOS |
| Internal memory | 64 MB |
| Built-in processor | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 - 2.472 GHz |
| Operating system installed | AirOS |
| Internal memory | 64 MB |
| Built-in processor | Yes |
| Ports & interfaces | |
| WAN connection | Wi-Fi |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 7.5 W |
| Output voltage | 24 V |
| Output current | 0.5 A |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Pole |
| Housing material | Plastic |
| Internal | No |
| LED indicators | LAN, Power, Signal strength |
| Product colour | White |
| Certification | RoHS, CE, FCC, IC |
| Antenna | |
| Antenna gain level (max) | 13 dBi |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Width | 189 mm |
| Depth | 125 mm |
| Height | 189 mm |
| Weight | 530 g |
| Packaging data | |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Packaging content | |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
