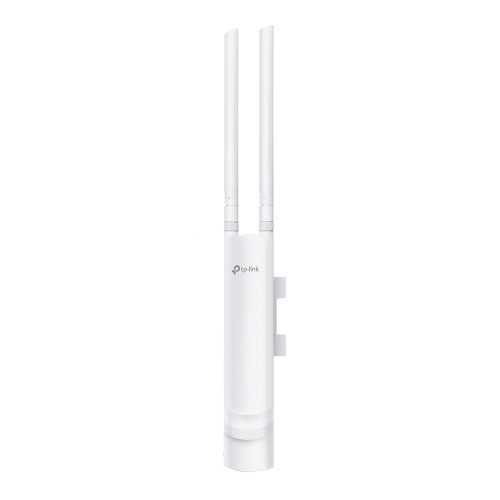

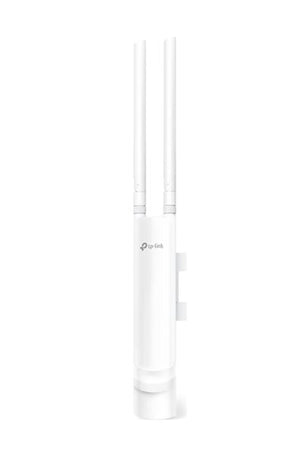

TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)

802.3af/A PoE, 24V Passive PoE, 2.4GHz: 2 - 3dBi, 5GHz: 2 - 4dBi, IEEE 802.11a/b/g/n/ac, 2.4GHz, 5GHz

Key Features

• Durable, weatherproof enclosure for outdoor Wi-Fi applications
• Up to 1200Mbps with 2×2 MIMO technology
• Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
• High transmission power and high gain antennas provide a long-range coverage area
• Cloud centralized management and Omada app for ultra convenience and easy management
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
• 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

Description

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Syslog	Yes
Maximum data transfer rate	1200 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Web-based management	Yes
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Maximum data transfer rate	1200 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Transmitting power (FCC)	22 dBm
Transmitting power (CE)	27 dBm
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Virtual LAN features	VLAN mapping
BeamForming	Yes
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Security
Number of SSID supported	16
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
Access Control List (ACL)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Management features
Syslog	Yes
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0

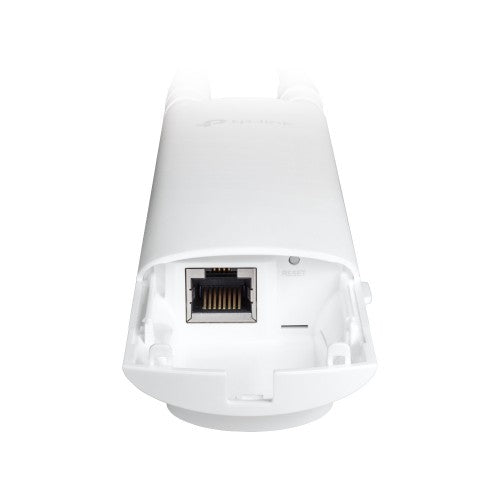

Ethernet LAN (RJ-45) ports	1
Power
Output voltage	24 V
Power consumption (typical)	10.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Design

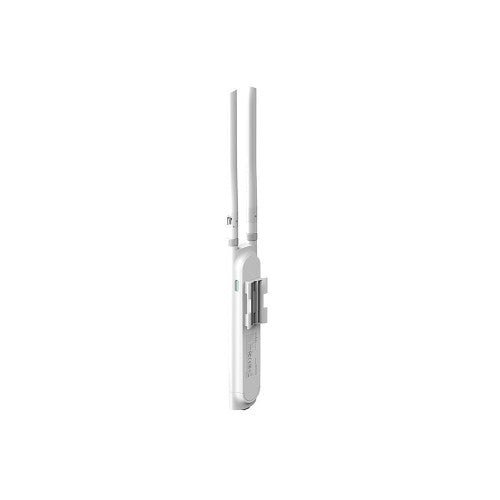

Placement	Pole, Wall
International Protection (IP) code	IP65
Reset button	Yes
Product colour	White
Antenna
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	4 dBi
Antenna direction type	Omni-directional
Antenna features	Detachable antenna
Technical details
Sustainability compliance	Yes
Harmonized System (HS) code	85176990
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Software
Access Control List (ACL)	Yes
Weight & dimensions
Width	215 mm
Depth	46 mm
Height	27 mm
Package width	140 mm
Package depth	270 mm
Package height	100 mm
Package weight	640 g
Packaging data
Quick start guide	Yes
Mounting kit	Yes
AC adapter included	Yes
Package width	140 mm
Package depth	270 mm
Package height	100 mm
Package weight	640 g

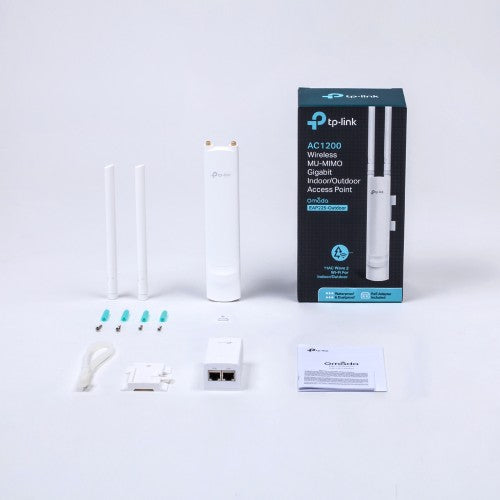

Packaging content
Quick start guide	Yes
Mounting kit	Yes
AC adapter included	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
System requirements
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Sustainability
Sustainability compliance	Yes
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
