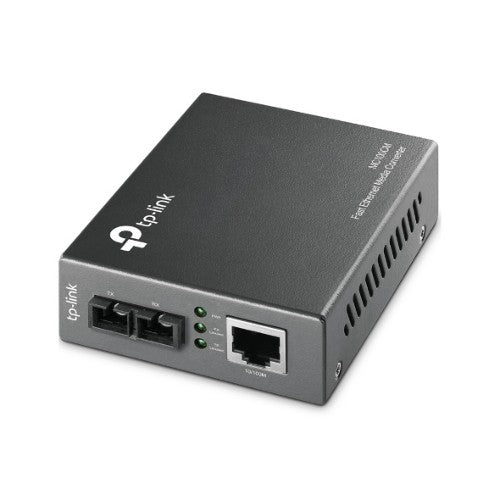

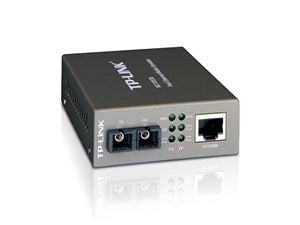

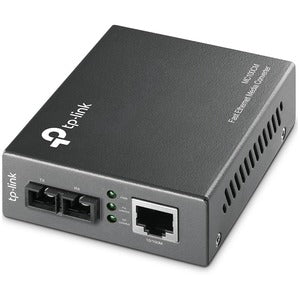

TP-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black

10/100Mbps, Multi-Mode, 1310nm, 2km

Key Features

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Extends fiber distance up to 1.2 miles (2km)

Description

The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).

Specifications

Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100 Mbit/s
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Fiber optic connector	SC
Performance
Wavelength	1310 nm
Maximum transfer distance	2000 m
Fiber mode structure	Multi-mode
Features
Internal	No
LED indicators	Yes
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Power
Power consumption (max)	2.4 W
Weight & dimensions
Width	95 mm
Depth	73 mm
Height	27 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Manual	Yes
Design
Internal	No
LED indicators	Yes
Product colour	Black
Certificates
Compliance certificates	RoHS
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85176990
