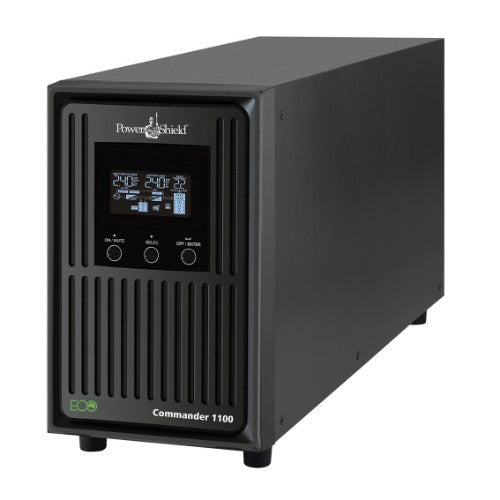

PowerShield Commander Tower 1100VA uninterruptible power supply (UPS) Line-Interactive 1.1 kVA 990 W 5 AC outlet(s)

1100VA, 990 W, 5 Outlets, 2 Batteries, 12 V 9 Ah, 397 × 145 × 220 mm, 12000 g

Key Features

• Pure Sine Wave Output
• Output Power Factor 0.9
• Free, programmable Power Management
• Ultra Modern, Informative LCD – Shows Battery Time Remaining
• ECO Mode
• Smart AVR
• Emergency Power Off Function
• Multiple Communication Available with faster SNMP Card

Description

The new Commander Tower has been developed to provide a better power factor with an all new, modern design and ultra modern, informative LCD display.

Specifications

Power
Output power capacity	1.1 kVA
Output power	990 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	208 V
Output operation voltage (max)	230 V
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage regulation	1.5%
Crest factor	3:1
ECO mode	Yes
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	6 ms
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Noise level	45 dB
Features
UPS topology	Line-Interactive
Output power capacity	1.1 kVA
Number of output phases	1
Number of input phases	1
Response time	6 ms
Output power	990 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	208 V
Output operation voltage (max)	230 V
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Power factor	0.9
Output voltage regulation	1.5%
Crest factor	3:1
Noise level	45 dB
ECO mode	Yes
Input frequency	50/60 Hz
Power source type	AC

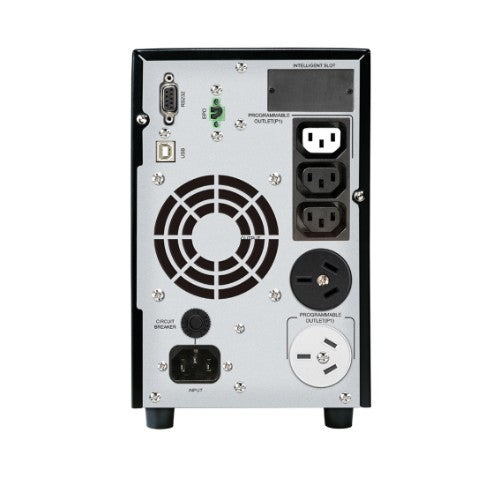

Ports & interfaces
USB port	Yes
AC outlets quantity	5 AC outlet(s)
AC outlet types	C13 coupler
RS-232 ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	2
Battery recharge time	4 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Form factor	Tower
Product colour	Black
Certification	EN62040-1 -1 2003, IEC 60950-1 -1, EN62040-2 2006, Directive 2011/65/EU
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	145 mm
Depth	397 mm
Height	220 mm
Weight	12 kg
Certificates
Certification	EN62040-1 -1 2003, IEC 60950-1 -1, EN62040-2 2006, Directive 2011/65/EU
