PowerShield PSCM2000 uninterruptible power supply (UPS) Line-Interactive 2 kVA 1800 W

2000 VA, 1800 W

Description

POWERSHIELD COMMANDER TOWER

The new Commander Tower has been developed to provide a better power factor with an all new, modern design and ultra modern, informative LCD display.

Features:

- Pure Sine Wave Output
- Output Power Factor 0.9
- Free, programmable Power Management
- Ultra Modern, Informative LCD – Shows Battery Time Remaining
- ECO Mode
- Smart AVR
- Emergency Power Off Function
- Multiple Communication Available with faster SNMP Card

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	2 kVA
Output power	1800 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Efficiency (On-line mode)	91%
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Response time	6 ms
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Output power capacity	2 kVA
Response time	6 ms
Output power	1800 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Efficiency (On-line mode)	91%
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz

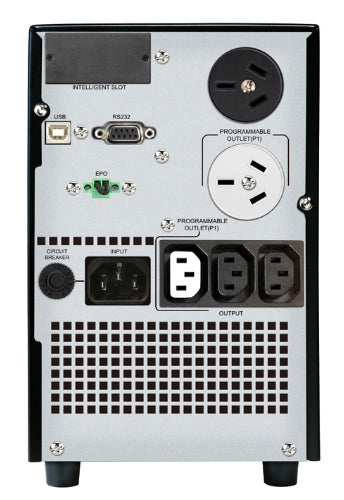

Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Battery voltage	12 V
Battery capacity	9 Ah
Design
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Width	145 mm
Depth	455 mm
Height	220 mm
Weight	22.5 kg
Packaging data
Manual	Yes
Packaging content
Manual	Yes
