ATEN
ATEN USB-C Multiport Dock with Power Pass-Thr
Regular price
$172.00 AUD
Regular price
Sale price
$172.00 AUD
Unit price
per
Use the contact form below to check availability.
USB-C Multiport Dock with Power Pass-Through
With Power Delivery Pass-Through up to 60W, UH3234 can charge your laptop while connected to the docking station. The UH3234 provides power to matched USB-C Windows or Mac laptops with PD Profile specifications of 20V/ 3A, 12V/3A, 9V/3A and 5V/3A.

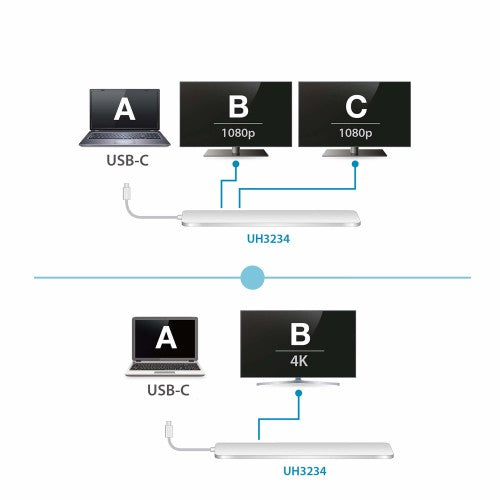

Enjoy stunning 4K video or a dual HD monitor setup with HDMI, VGA, and DisplayPort functionality. The UH3234 routes video from a source computer to a DisplayPort or HDMI monitor via a single cable while maintaining the highest quality 4K resolution. You can also mirror or extend your Windows USB-C laptop to two monitors in 1080P.
This ergonomic, plug-and-play device (no software drivers are needed) is compatible with all major operating systems (Windows and OS X). Save space on your desktop by placing your laptop directly on top of the lightweight yet rugged docking station or display the dock next to your monitors for a stylish, minimalist workstation.
Key Features

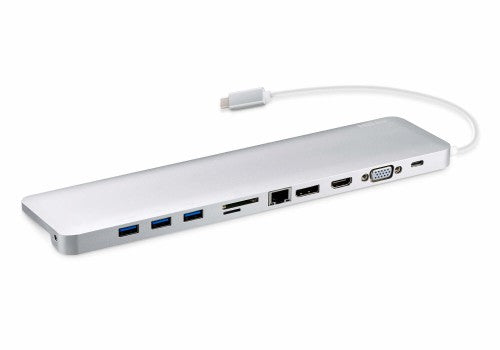

- Connects up to 10 devices instantly through a USB-C cable
- Provides Power Delivery Pass-through up to 60W after deduction of 15W used by the dock*
- Supported power profiles include 20V/3A, 12V/3A, 9V/3A and 5V/3A power specification
- Supports 4K resolution on a single HDMI or DisplayPort display, and Dual 1080p on a DisplayPort and an HDMI or VGA** monitor
- 1 x USB 3.1 Gen 1 Type A port supports Battery Charging Specification Revision 1.2 (BC 1.2) for Fast-Charging device
- Built-in memory card readers (SD/MMC/Micro SD)
- Audio line-in and line-out
- Gigabit Ethernet
- Stylish and ultra slim docking station
- Enhanced EMI protection by increasing the cable braid density and adding conductive foam

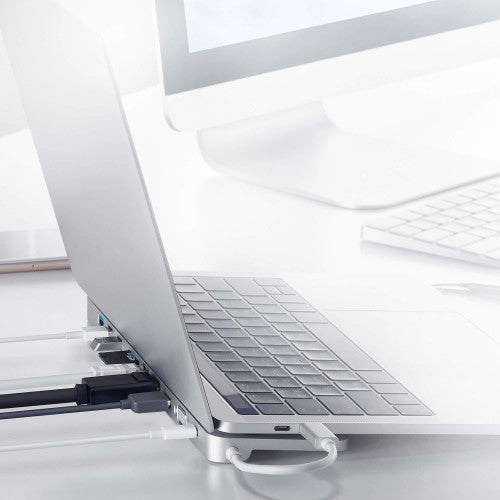

- The rear feet of 12' MacBook fit right into the mounting pits on UH3234
- Works with all major operating systems: Windows®, OS X®, Android and iPad Pro
- Compatible with Thunderbolt 3 (USB-C)
Description
The ATEN UH3234 USB-C Ultra-Slim Multiport Dock is an ultra-sleek, one-step total upgrade for your laptop that provides all the extra expansion capabilities that you need. Simply use one cable to add up to 10 devices, with power delivery pass-through to boost your productivity with extra HDMI, DisplayPort, VGA, USB 3.1 Gen 1, SD/MMC/MicroSD, Ethernet and Audio connectivity.With Power Delivery Pass-Through up to 60W, UH3234 can charge your laptop while connected to the docking station. The UH3234 provides power to matched USB-C Windows or Mac laptops with PD Profile specifications of 20V/ 3A, 12V/3A, 9V/3A and 5V/3A.
Enjoy stunning 4K video or a dual HD monitor setup with HDMI, VGA, and DisplayPort functionality. The UH3234 routes video from a source computer to a DisplayPort or HDMI monitor via a single cable while maintaining the highest quality 4K resolution. You can also mirror or extend your Windows USB-C laptop to two monitors in 1080P.
This ergonomic, plug-and-play device (no software drivers are needed) is compatible with all major operating systems (Windows and OS X). Save space on your desktop by placing your laptop directly on top of the lightweight yet rugged docking station or display the dock next to your monitors for a stylish, minimalist workstation.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 2.0 |
| USB Power Delivery up to | 60 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Number of displays supported | 2 |
| Product colour | Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Maximum memory card size | 128 GB |
| Charging function | Yes |
| Housing material | Aluminium |
| Maximum refresh rate | 60 Hz |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Maximum memory card size | 128 GB |
| Power | |
| Power source type | USB |
| Power consumption (typical) | 15 W |
| Output voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 280 mm |
| Height | 14.5 mm |
| Weight | 321 g |
| Package width | 115 mm |
| Package depth | 340 mm |
| Package height | 35 mm |
| Package weight | 460 g |
| Design | |
| Product colour | Silver |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 115 mm |
| Package depth | 340 mm |
| Package height | 35 mm |
| Package weight | 460 g |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 250 mm |
| Master (outer) case gross weight | 4.88 kg |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 200 mm |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 250 mm |
| Master (outer) case gross weight | 4.88 kg |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 200 mm |
| Master (outer) case net weight | 3.21 kg |
| Harmonized System (HS) code | 84733020 |
