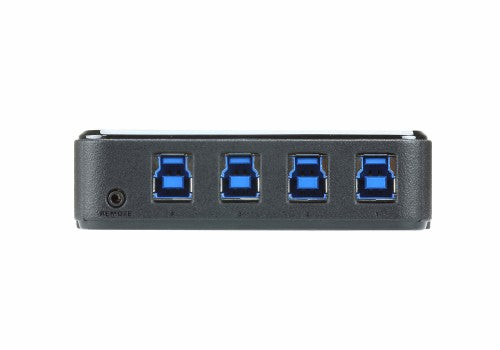

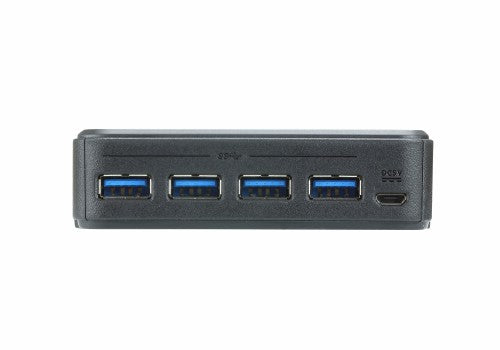

ATEN 4-port USB to USB-C Sharing Switch

$130.67 AUD
$130.67 AUD
Sale Sold out

Use the contact form below to check availability.

4-port USB to USB-C Sharing Switch

Key Features

  • Enables 4 computers to share 4 USB 3.2 Gen1 devices
  • Simple port selection via remote port selector for convenient switch placement
  • USB 3.2 Gen1 compliant, supporting data transfer rates of up to 5Gbps
  • LEDs indicates which computer is active
  • Over-current protection
  • Micro USB power jack for additional power supply
  • Bus-powered – no external power supply needed
  • Plug and Play – no drivers or external power adapter needed
  • Multiplatform support – Windows, Linux and Mac

Description

ATEN US3344 is a 4-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different general computers by using USB 3.2 Gen 1 Type-B to Type-A cables.
1x 4 x 4 USB 3.2 Gen 1 Peripheral Sharing Switch
2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.2M
2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.8M
2x USB 3.2 Gen 1 Type-B to Type-C Cables 1.8M
1x Remote Port Selector
1x User Instructions

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 4
Remote control in 1
Performance
LED indicators Yes
Housing material Plastic
Maximum data transfer rate 5000 Gbit/s
Remote control function Yes
Product colour Black
Design
Product colour Black
Technical details
Housing material Plastic
Compliance certificates RoHS
Indication
LED indicators Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 93 mm
Depth 93.7 mm
Height 26.8 mm
Weight 568 g
Package weight 703 g
Package width 70 mm
Package height 235 mm
Package depth 163 mm
Packaging content
Cables included USB, USB Type-A - USB Type-B
Quick start guide Yes
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case width 395 mm
Master (outer) case gross weight 7.61 kg
Master (outer) case length 405 mm
Master (outer) case height 182 mm
Master (outer) case net weight 5.68 kg
