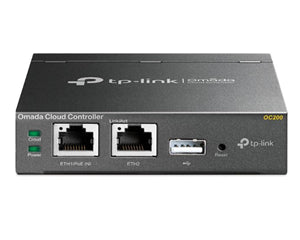

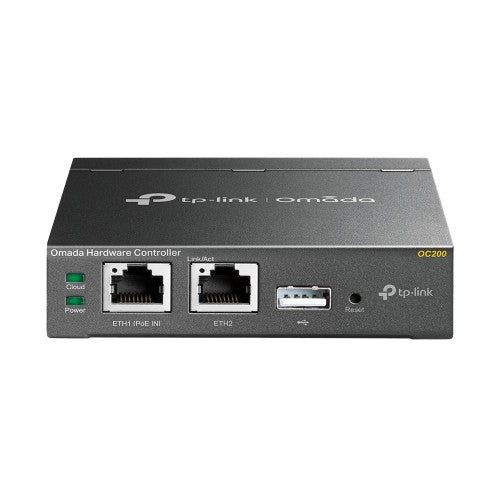

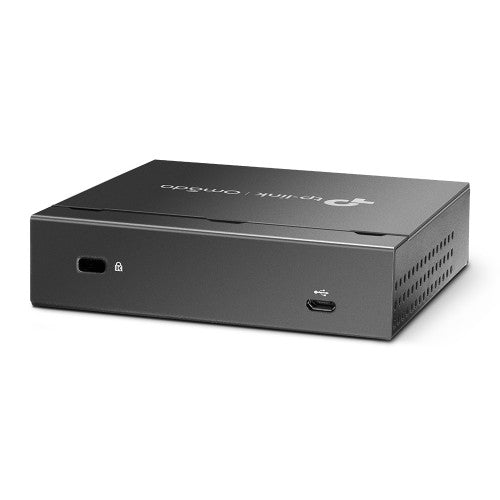

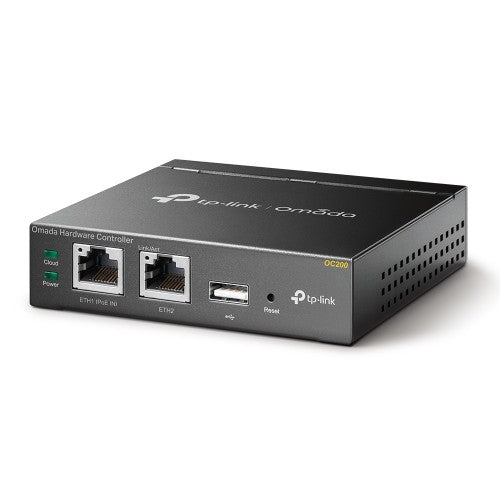

TP-Link Omada Hardware Controller

2× 10/100 Mbps, USB 2.0, Micro USB, 802.3af/at PoE, 100×98×25 mm

Key Features

• Omada Wi-Fi network controller
• Accessible through direct access, cloud portal or mobile app
• Pre-installed Omada controller software. Power it on and start to play
• No license fee, no monthly fee, manage from anywhere, anytime
• Dual power selection PoE (802.3af/802.3at) and micro USB flexible installations
• Powerful CPU and USB auto backup for robustness and stability
• Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)

Description

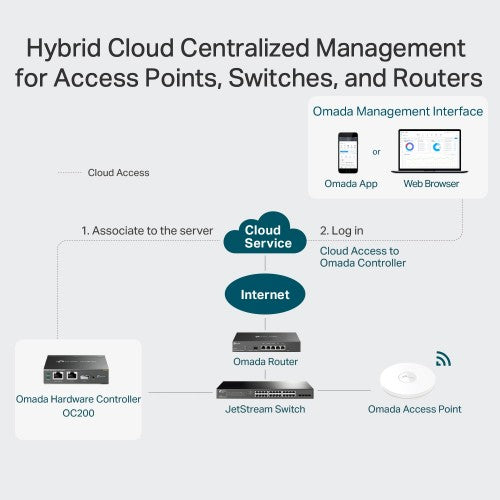

Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.

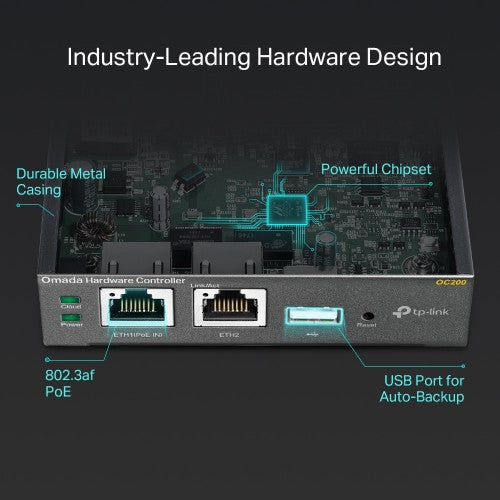

Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.

Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.

Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.

Specifications

Design
LED indicators	Yes
Certification	CE, FCC, RoHS
Product colour	Black
Features
Antenna type	Internal
Built-in processor	Yes
Processor frequency	1200 MHz
Number of processors installed	1
Performance
Built-in processor	Yes
Processor frequency	1200 MHz
Number of processors installed	1
Internal memory type	DDR3
Internal memory	1024 MB
Flash memory	4000 MB
Control display unit	No
Certification	CE, FCC, RoHS
Product colour	Black
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10,100 Mbit/s
Security
VLAN support	Yes
Security algorithms	SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Access Control List (ACL)	Yes
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Management features
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Power
Power over Ethernet (PoE)	Yes
Weight & dimensions
Width	100 mm
Height	25 mm
Depth	98 mm
Packaging content
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Technical details
Built-in processor	Yes
Antenna type	Internal
Processor frequency	1200 MHz
Number of processors installed	1
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Memory
Internal memory type	DDR3
Internal memory	1024 MB
Flash memory	4000 MB
Display
Control display unit	No
Certificates
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Logistics data
Harmonized System (HS) code	85176990
