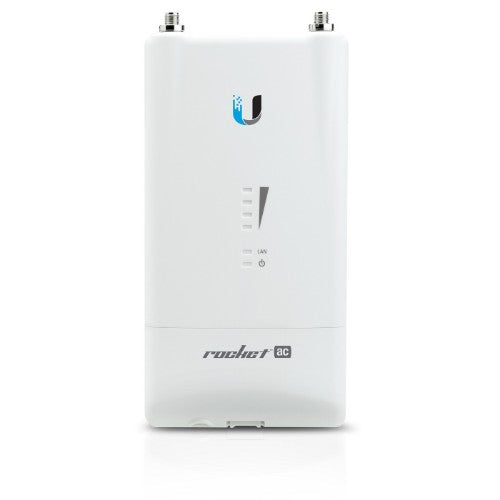

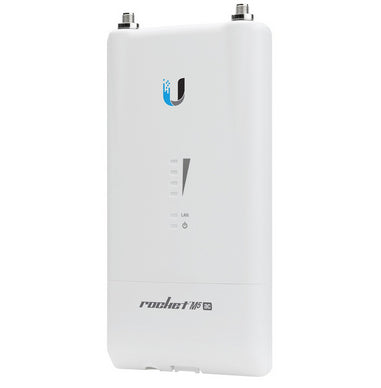

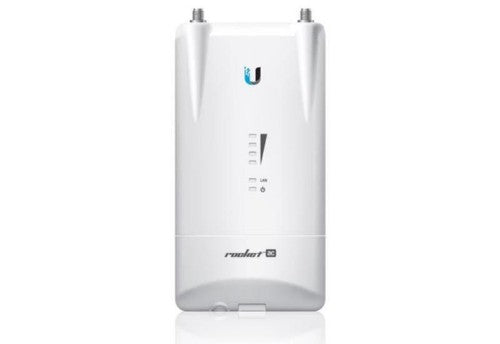

Ubiquiti Networks Rocket 5ac Lite 450 Mbit/s White

Full-Band 5 GHz, 450+ Mbps, 1x 10/100/1000 Ethernet, PtP, PtMP, White

Description

Featuring airMAX ac technology, the Rocket™5ac Lite and Rocket5ac PTP are ideal for Point-to-Point (PtP) links requiring maximum performance. Point-to-MultiPoint (PtMP) functionality can be added to the Rocket5ac Lite via a firmware upgrade to airOS 7.1 or higher. Performance Breakthrough airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance. Superior Processing Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. Plug and Play Integration The innovative airMAX ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks. Advanced Software Technology Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Specifications

Performance
Maximum data transfer rate	450 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi data rate (max)	450 Mbit/s
Frequency band	5.15 - 5.875 GHz
VLAN support	Yes
Quality of Service (QoS) support	Yes
Modulation	256-QAM
Certification	CE, FCC, IC
Internal memory	128 MB
Flash memory	16 MB
Features
Maximum data transfer rate	450 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi data rate (max)	450 Mbit/s
Frequency band	5.15 - 5.875 GHz
VLAN support	Yes
Quality of Service (QoS) support	Yes
Modulation	256-QAM
Internal memory	128 MB
Flash memory	16 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power consumption (typical)	8.5 W
Input current	0.5 A
AC input voltage	24 V
Design
Internal	No
LED indicators	Yes
Product colour	White
Certification	CE, FCC, IC
Antenna
Antenna connector type	RP-SMA
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	162 mm
Depth	84 mm
Height	37 mm
Weight	250 g
Packaging data
Quick start guide	Yes
Mounting kit	Yes
AC adapter included	Yes
Packaging content
Quick start guide	Yes
Mounting kit	Yes
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Storage relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	85176990
