TP-LINK
TP-Link Archer T4E Internal WLAN 867 Mbit/s
Regular price
$42.61 AUD
Regular price
Sale price
$42.61 AUD
Unit price
per
Use the contact form below to check availability.
Dual Band, PCI Express, 2.4/5 GHz, 300/1200 Mbps, 2×2 MIMO, EEE 802.11ac
TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

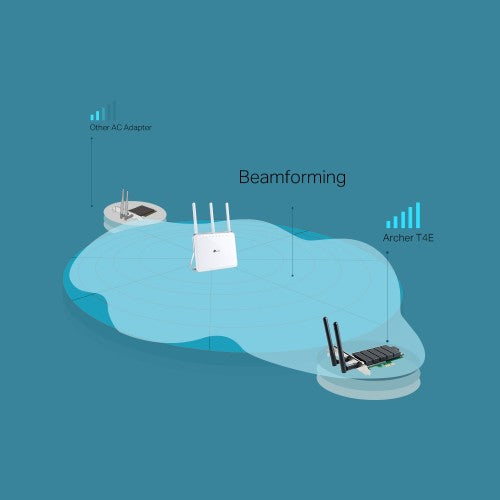

Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

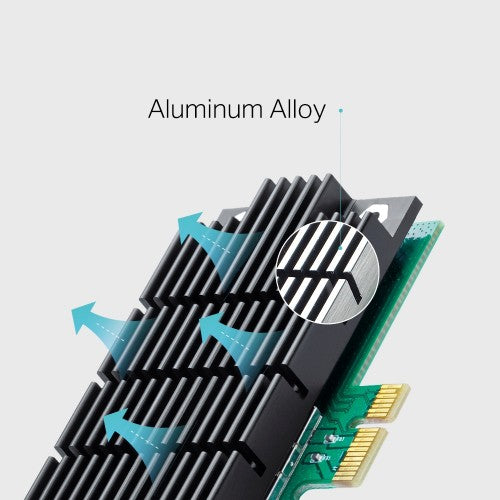

Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

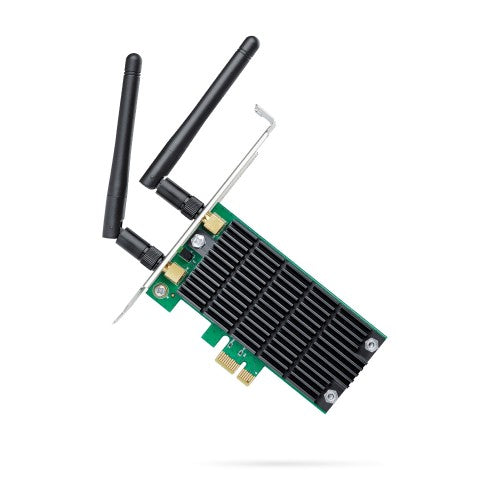

External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.
Key Features
- Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
- High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
- 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
- Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists

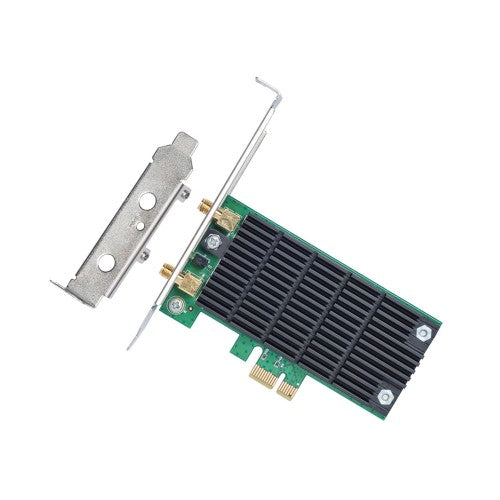

- Multiple-Size Brackets – Low profile and full height brackets are both provided, suitable for all PCs
- 2×2 MIMO – Users can easily access a high-speed wireless connection
- Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
Description
802.11ac - Dual Band Wi-Fi for Faster ConnectionsTP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.
Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.
Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.
External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
| PCI Card form factor | Half-height (low-profile) |
| Bandwidth | |
| Maximum data transfer rate | 867 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Bandwidth (second) | 5 GHz |
| Bandwidth (first) | 2.4 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 11,54,300,867 Mbit/s |
| Antenna | |
| Antennas quantity | 2 |
| Antenna | Yes |
| Transmit power range | 59.5 - 92 dBmW |
| Detachable antenna(s) | Yes |
| Network | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Bandwidth (second) | 5 GHz |
| Bandwidth (first) | 2.4 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Maximum data transfer rate | 867 Mbit/s |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| WLAN data transfer rates supported | 11,54,300,867 Mbit/s |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Design | |
| Internal | Yes |
| Product colour | Black, Green |
| Antenna | Yes |
| PCI Card form factor | Half-height (low-profile) |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 24 dBm |
| Operating modes | Infrastructure mode |
| Component for | PC |
| Antenna design | External |
| Conflict-Free | Yes |
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 120.8 mm |
| Depth | 115.2 mm |
| Height | 21.5 mm |
| Package width | 207 mm |
| Package depth | 148 mm |
| Package height | 42 mm |
| Package weight | 300 g |
| Packaging data | |
| Low-profile bracket | Yes |
| Package type | Box |
| Package width | 207 mm |
| Package depth | 148 mm |
| Package height | 42 mm |
| Package weight | 300 g |
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Low-profile bracket | Yes |
| Package type | Box |
| Performance | |
| Conflict-Free | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Conflict-Free | Yes |
| Antennas quantity | 2 |
| Transmit power range | 59.5 - 92 dBmW |
| Detachable antenna(s) | Yes |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
