CyberPower PDU10BVHVIEC20F power distribution unit (PDU) 20 AC outlet(s) 0U Black

Power Distribution Units

Key Features

• Overload Protection
• Adjustable Mounting Brackets
• Industrial-grade Metal Housing
• Cord Retention Tray

Description

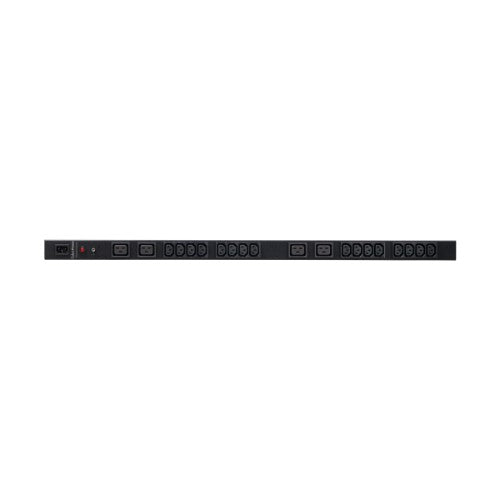

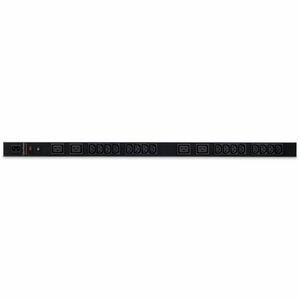

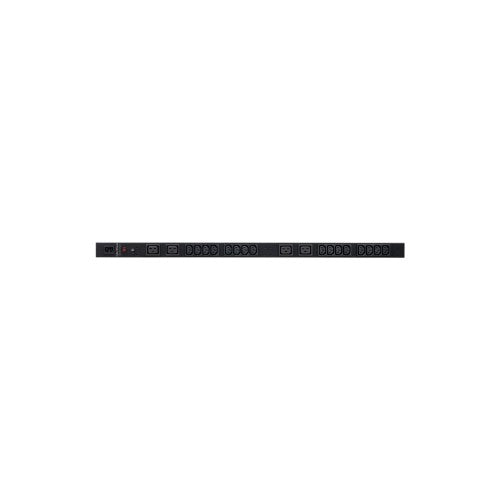

The CyberPower 20-outlet (20 Front) 0U vertical rack mount basic power distribution unit (PDU10BVHVIEC20F) provides 200/230V 10A output. It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single IEC-320 C14 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

- 20 IEC-320 (4-C19 and 16-C13) output receptacles
- Single IEC-320 C14 plug
- 10-amp electrical capacity with circuit breaker
- 200/230V AC - 50/60Hz
- 36" 0U vertical rack mount
- Rugged, industrial-grade metal housing
- 10-ft. power cord

Specifications

Design
Type	Single-phase
PDU types	Basic
Mounting	Vertical
Product colour	Black
Certification	UL60950
Rack capacity	0U
Housing material	Steel
Ports & interfaces
Power plug	C14 coupler
AC outlets quantity	20 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Features
Cable length	3.05 m
Certification	UL60950
Surge protection	Yes
Ergonomics
Cable length	3.05 m
Power
Nominal input voltage	200 - 240 V
Maximum current	10 A
Nominal output voltage	200 - 240 V
Power protection features	Overload
Surge protection	Yes
AC input frequency	50 / 60 Hz
Circuit breaker	Yes
Certificates
Certification	UL60950
Compliance certificates	CE, RoHS, UL
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-15 - 45 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Operating temperature (T-T)	32 - 95 °F
Weight & dimensions
Weight	2 kg
Weight (imperial)	1.36 kg (3 lbs)
Dimensions (W x D x H) (imperial)	44.5 x 914.4 x 38.1 mm (1.75 x 36 x 1.5")
Width	44.5 mm
Depth	38.1 mm
Height	914.4 mm
Package width	70.1 mm
Package depth	153.9 mm
Package height	1026.2 mm
Package weight	5.2 kg
Packaging content
Packaging content	PDU10BVHVIEC20F, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit
Packaging data
Package width	70.1 mm
Package depth	153.9 mm
Package height	1026.2 mm
Package weight	5.2 kg
Technical details
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	CE, RoHS, UL
Logistics data
Warranty period	2 year(s)
